将Network Edge设备连接到远程端口
使用 Fabric API 在网络边缘虚拟设备和远程 Fabric 端口之间建立未标记的连接。

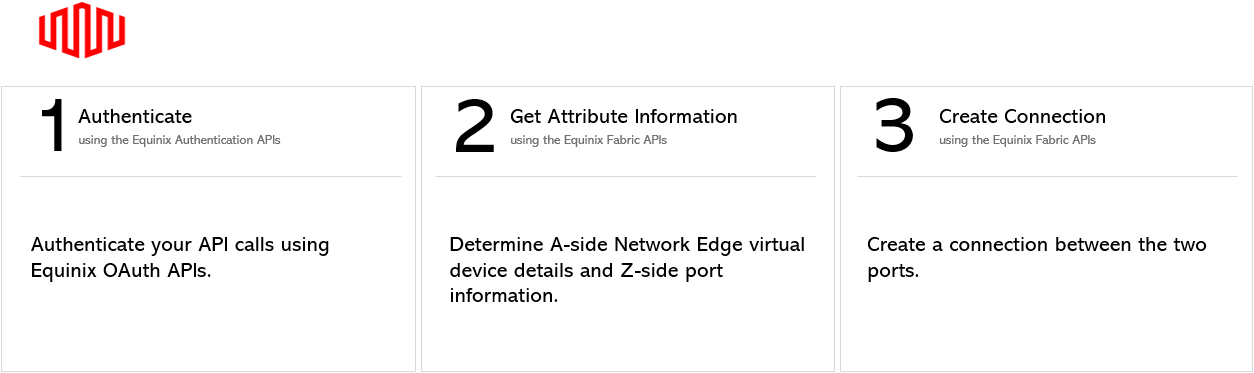

Fabric API 先决条件
-
身份验证 - 提交您的 OAuth2 用户凭据、客户端 ID 和客户端密钥 身份验证。请参阅API身份验证以获取有关如何调用OAuth API来验证和认证您的凭据的说明。
-
确定您的 A 端信息。使用 获取虚拟设备 或 获取虚拟设备 {uuid} 获取您的网络边缘设备信息。您可以选择设备上任何可用的接口进行连接。但是，如果您未指定接口，Equinix 将自动选择一个。
-
使用 Get All Ports API 请求检索 Equinix Fabric 端口信息。
连接到未标记的远程端口
要从网络边缘设备创建到远程端口的未标记流量连接，请向 /fabric/v4/connections 端点发送 POST 请求。在请求正文中指定连接的配置详细信息。
注意
您只能从Network Edge虚拟设备到远程端口创建单个未标记的连接。
| POST /fabric/v4/connections | |
|---|---|
| Method | POST |
| Endpoint | /fabric/v4/connections |
| Headers | Authorization, Content-Type |
| Path Parameters | Not applicable |
| Query Parameters | Not applicable |
| Body Parameters | type, name, order, bandwidth, aSide, zSide, project, notifications |
cURL 请求示例：
curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
"type": "EVPL_VC",
"bandwidth": 100,
"redundancy": {
"priority": "PRIMARY"
},
"name": "ConnectionName-1",
"order": {
"purchaseOrderNumber": "1-3232923"
},
"aSide": {
"accessPoint": {
"type": "VD",
"virtualDevice": {
"type": "EDGE",
"uuid": "fd5342f3-d067-4683-a24f-be952279630b"
},
"interface": {
"type": "NETWORK",
"id": 45645
}
}
},
"zSide": {
"accessPoint": {
"type": "COLO",
"port": {
"uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
},
"linkProtocol": {
"type": "UNTAGGED"
}
}
},
"project": {
"projectId": 567
},
"notifications": [
{
"type": "ALL",
"emails": [
"test@equinix.com",
"test1@equinix.com"
]
}
]
}'
请求正文中包含的参数仅适用于此示例。有关参数及其说明的完整列表，请参阅API 参考。
连接到 DOT1Q 远程端口
要从网络边缘设备创建到 DOT1Q 远程端口的连接，请向 /fabric/v4/connections 端点发送 POST 请求。在请求正文中指定连接的配置详细信息。
cURL 请求示例：
curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '
{
"type": "EVPL_VC",
"bandwidth": 1000,
"name": "vd to COLO",
"aSide": {
"accessPoint": {
"type": "VD",
"virtualDevice": {
"type": "EDGE",
"uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
},
"interface": {
"type": "NETWORK",
"id": 45645
}
}
},
"zSide": {
"accessPoint": {
"type": "COLO",
"port": {
"uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
},
"linkProtocol": {
"type": "DOT1Q",
"vlanTag": 300
}
}
},
"order": {
"purchaseOrderNumber": "1-129105284100"
},
"notifications": [
{
"type": "ALL",
"emails": [
"test@equinix.com",
"test1@equinix.com"
]
}
]
}'
示例回答：
{
"type": "EVPL_VC",
"href": "https://api.equinix.com/fabric/v4/connections/c193c1c4-2c7e-472d-8c91-0283bc3b5a71",
"uuid": "c193c1c4-2c7e-472d-8c91-0283bc3b5a71",
"name": "ConnectionName-1",
"state": "PROVISIONING",
"operation": {
"providerStatus": "NOT_AVAILABLE",
"equinixStatus": "PROVISIONING"
},
"order": {
"purchaseOrderNumber": "1-3232923"
},
"project": {
"projectId": 567
},
"notifications": [
{
"type": "ALL",
"emails": [
"testqq@equinix.com"
]
}
],
"account": {
"accountNumber": 270217,
"orgId": 92287,
"globalOrgId": "0016u000003JZ53AAG"
},
"changeLog": {
"createdBy": "eqxnfvuser",
"createdDateTime": "2022-03-22T23:14:23.546Z"
},
"bandwidth": 100,
"redundancy": {
"group": "79a0e626-55fe-4fe1-89a5-4d7ca52214db",
"priority": "PRIMARY"
},
"isRemote": true,
"direction": "INTERNAL",
"aSide": {
"accessPoint": {
"interface": {
"uuid": "bf8a606b-32b2-4a53-a450-6eabd7d9ccab",
"id": 45645,
"type": "CLOUD"
},
"type": "VD",
"account": {
"accountNumber": 270217,
"orgId": 92287,
"organizationName": "eqx-nfv",
"globalOrgId": "0016u000003JZ53AAG"
},
"location": {
"href": "https://api.equinix.com/fabric/v4/metros/DC",
"region": "AMER",
"metroName": "Ashburn",
"metroCode": "DC"
},
"virtualDevice": {
"href": "https://api.equinix.com/ne/v1/devices/fd5342f3-d067-4683-a24f-be952279630b",
"uuid": "fd5342f3-d067-4683-a24f-be952279630b",
"name": "ha-json",
"type": "EDGE"
}
}
},
"zSide": {
"accessPoint": {
"type": "COLO",
"account": {
"accountNumber": 270224,
"orgId": 92287,
"organizationName": "eqx-nfv",
"globalOrgId": "0016u000003JZ53AAG"
},
"location": {
"href": "https://api.equinix.com/fabric/v4/metros/SY",
"region": "APAC",
"metroName": "Sydney",
"metroCode": "SY"
},
"port": {
"href": "https://api.equinix.com/fabric/v4/ports/c791f8cb-5d73-d730-8ce0-306a5c00a4ee",
"uuid": "c791f8cb-5d73-d730-8ce0-306a5c00a4ee",
"name": "eqx-nfv-SY1-L-Dot1q-BO-PRI-10G-JN-1147"
},
"linkProtocol": {
"type": "DOT1Q"
}
}
},
"additionalInfo": []
}
响应有效负载包含在请求正文中定义的配置参数。有关所有可用参数及其说明的完整列表，请参阅API 参考。
连接到 QinQ 远程端口
要从网络边缘设备创建到 QinQ 远程端口的连接，请向 /fabric/v4/connections 端点发送 POST 请求。在请求正文中指定连接的配置详细信息。
cURL 请求示例：
curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '
{
"type": "EVPL_VC",
"bandwidth": 1000,
"name": "vd to COLO",
"aSide": {
"accessPoint": {
"type": "VD",
"virtualDevice": {
"type": "EDGE",
"uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
},
"interface": {
"type": "NETWORK",
"id": 45645
}
}
},
"zSide": {
"accessPoint": {
"type": "COLO",
"port": {
"uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
},
"linkProtocol": {
"type": "QINQ",
"vlanSTag": 300,
"vlanCTag": 400
}
}
},
"order": {
"purchaseOrderNumber": "1-129105284100"
},
"notifications": [
{
"type": "ALL",
"emails": [
"test@equinix.com",
"test1@equinix.com"
]
}
]
}
'
监控您的连接
使用 Get 指定连接 API 端点来监控连接状态。
