使用服务令牌连接到目标

您可以使用服务令牌中预定义的信息在资产或第三方之间建立连接。可以为连接的A端和Z端签发服务令牌。

例如,您可以创建从端口到服务令牌提供的目标的连接。可以为端口,Network Edge虚拟设备或网络签发z端服务令牌。

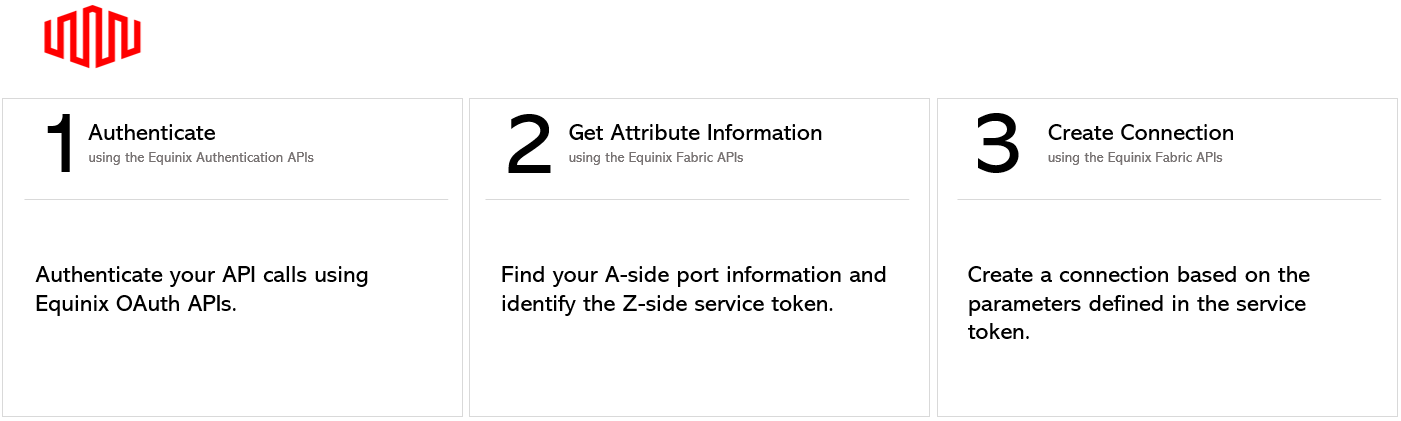

先决条件​

  1. 验证-提交您的用户凭据,客户端ID和客户端机密以进行OAuth2验证。有关如何致电OAuth API以验证和验证您的凭据的说明,请参阅API验证。

  2. 确定A侧端口信息。 使用获取所有端口端点获取相关端口信息。

  3. 从提供商处获取z端服务令牌详细信息。调用创建连接 API 需要此信息。

创建从 DOT1Q端口到服务令牌的连接​

要创建从Dot1q端口到服务令牌定义的目标的连接,请向端点发送POST请求/fabric/v4/connections。在请求正文中指定A端端口信息和z端服务令牌详情。

注意

服务令牌可以发送给多个接收者,并且对于其中任何一个接收者来说都是一次有效的。

发布/fabric/v4/connections
方法POST
端点/fabric/v4/connections
标题Authorization,Content-Type
路径参数不适用
查询参数不适用
身体参数type,name,order bandwidth aSide,,zSide,notifications

在不创建连接的情况下在Production中安全验证此请求,请参阅在Production中测试(API Dry Run)。

cURL 请求示例:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "zSide": {
        "serviceToken": {
            "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test2@equinix.com"
            ]
        }
    ]
}'

请求正文中包含的参数特定于此示例。参数及其说明的完整列表,请参见API参考手册。

示例回答:

{
    "href": "https://api.equinix.com/fabric/v4/connections/3a58dd05-f46d-4b1d-a154-2e85c396ea62",
    "type": "EVPL_VC",
    "uuid": "3a58dd05-f46d-4b1d-a154-2e85c396ea62",
    "state": "PROVISIONING",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100",
        "billingTier": "Up to 1 Gbps"
    },
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "href": "https://api.equinix.com/fabric/v4/ports/a867f685-41b0-1b07-6de0-320a5c00abdd",
                "type": "XF_PORT",
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
     "zSide": {
        "serviceToken": {
            "href": "https://api.equinix.com/fabric/v4/serviceTokens/25acdea5-1eeb-4f0b-8ca9-6c505f46847d",
            "uuid": "25acdea5-1eeb-4f0b-8ca9-6c505f46847d"
        },
        "accessPoint": {
            "location": {
                "metroHref" : "https://api.equinix.com/fabric/v4/metros/DC",
                "region": "AMER",
                "metroName": "Ashburn",
                "metroCode": "DC"
            },
            "port": {
                "type": "XF_PORT",
                "href": "https://api.equinix.com/fabric/v4/ports/c5720fcc-4ae7-ae7e-13e0-306a5c00adaf",
                "uuid": "c5720fcc-4ae7-ae7e-13e0-306a5c00adaf",
                "name": "eqx-nfv-CX-DC6-L-Dot1q-BO-10G-PRI-JUN-7"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 3132
            }
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test2@equinix.com"
            ]
        }
    ],
    "operation": {
        "equinixStatus": "PROVISIONING",
        "providerStatus": "NOT_AVAILABLE"
    },
    "changeLog": {
        "createdDateTime": "2021-07-15T19:30:29.526Z"
    }
}

响应负载包括在请求正文中定义的配置参数。有关可能参数及其说明的完整列表,请参阅API参考手册。

创建从 QINQ端口到服务令牌的连接​

要创建从QinQ端口到服务令牌定义的目标的连接,请向端点发送POST请求/fabric/v4/connections。在请求正文中指定A端端口信息和z端服务令牌详情。

cURL 请求示例:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanCTag": 1001,
                "vlanSTag": 1002
            }
        }
    },
    "zSide": {
        "serviceToken": {
            "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test2@equinix.com"
            ]
        }
    ]
}'

请求正文中包含的参数特定于此示例。参数及其说明的完整列表,请参见API参考手册。

监控连接​

使用获取指定的连接端点监控连接状态。
