连接不同位置的端口

在部署在不同 IBX 数据中心的 IT 资产之间建立直接、低延迟的连接。

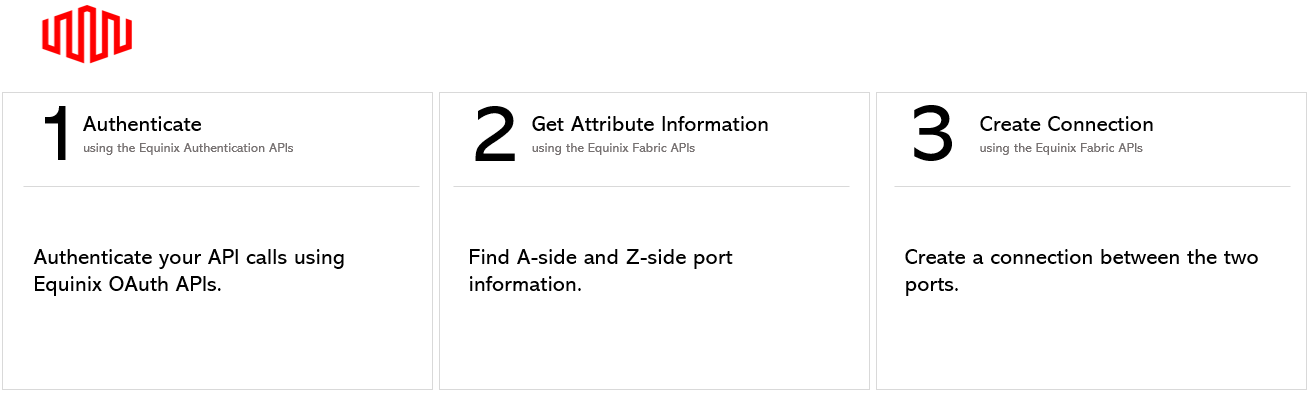

先决条件​

  1. 验证-提交您的用户凭据,客户端ID和客户端机密以进行OAuth2验证。有关如何致电OAuth API以验证和验证您的凭据的说明,请参阅API验证。

  2. 使用获取所有端口端点获取A侧和Z侧端口的相关端口信息。

在两个 DOT1Q端口之间创建非冗余连接​

要在两个Dot1q端口之间创建非冗余连接,请向端点发送POST请求/fabric/v4/connections。在请求正文中指定连接的配置详情。

POST /fabric/v4/connections
方法POST
端点/fabric/v4/connections
标题Authorization,Content-Type
路径参数不适用
查询参数不适用
身体参数type,name,order bandwidth aSide,,zSide,project,notifications

在不创建连接的情况下在Production中安全验证此请求,请参阅在Production中测试(API Dry Run)。

cURL 请求示例:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "geoScope": "CONUS",
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test@equinix.com"
            ]
        }
    ]
}'

创建从 DOT1Q端口到 QINQ端口的非冗余连接​

要创建从Dot1q端口到QinQ端口的非冗余连接,请向端点发送POST请求/fabric/v4/connections。在请求正文中指定连接的配置详情。

cURL 请求示例:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "geoScope": "CONUS",
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 2001,
                "vlanCTag": 2002,
            }
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test@equinix.com"
            ]
        }
    ]
}'

请求正文中包含的参数特定于此示例。参数及其说明的完整列表,请参见API参考手册。

示例回答:

{
    "href": "https://api.equinix.com/fabric/v4/connections/3a58dd05-f46d-4b1d-a154-2e85c396ea62",
    "type": "EVPL_VC",
    "uuid": "3a58dd05-f46d-4b1d-a154-2e85c396ea62",
    "name": "Conn-1",
    "state": "PENDING_AUTO_APPROVAL",
    "order": {
        "purchaseOrderNumber": "1-129105284100",
        "billingTier": "Up to 1 Gbps"
    },
    "bandwidth": 1000,
    "aSide": {
        "accessPoint" {
            "type": "COLO",
            "port": {
                "href": "https://api.equinix.com/fabric/v4/ports/a867f685-41b0-1b07-6de0-320a5c00abdd",
                "type": "XF_PORT",
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "href": "https://api.equinix.com/fabric/v4/ports/a867f685-41b0-1b07-6de0-320a5c00abdd",
                "type": "XF_PORT",
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 2001,
                "vlanCTag": 2002,
            }
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test@equinix.com"
            ]
        }
    ],
    "operation": {
        "equinixStatus": "PROVISIONING",
        "providerStatus": "NOT_AVAILABLE"
    },
    "changeLog": {
        "createdDateTime": "2021-07-15T19:30:29.526Z"
    }
}

响应负载包括在请求正文中定义的配置参数。有关可能参数及其说明的完整列表,请参阅API参考手册。

创建从 QINQ端口到 DOT1Q端口的非冗余连接​

要创建从QinQ端口到Dot1Q端口的非冗余连接,请向端点发送POST请求/fabric/v4/connections。在请求正文中指定连接的配置详情。

cURL 请求示例:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "geoScope": "CONUS",
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 1001,
                "vlanCTag": 1002
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test@equinix.com"
            ]
        }
    ]
}'

请求正文中包含的参数特定于此示例。参数及其说明的完整列表,请参见API参考手册。

在两个 QINQ端口之间创建非冗余连接​

要在两个QinQ端口之间创建非冗余连接,请向端点发送POST请求/fabric/v4/connections。在请求正文中指定连接的配置详情。

cURL 请求示例:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "geoScope": "CONUS",
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 1001,
                "vlanCTag": 1002
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 2001,
                "vlanCTag": 2002,
            }
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test@equinix.com"
            ]
        }
    ]
}'

请求正文中包含的参数特定于此示例。参数及其说明的完整列表,请参见API参考手册。

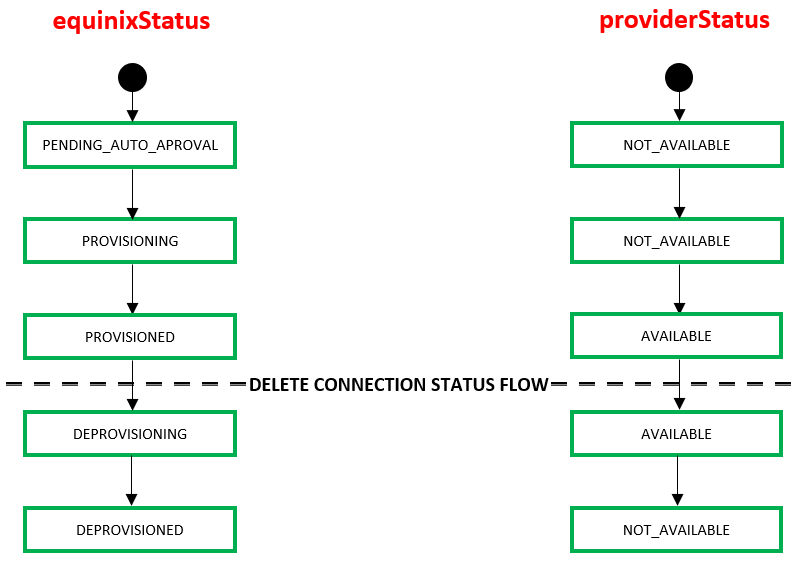

监控连接​

使用获取指定的连接端点监控连接状态。

**equinixStatus**参数值**providerStatus**属性值描述
PENDING_AUTO_APPROVALNOT_AVAILABLE连接请求已发送,以供自动审批。由于连接在同一组织内(即A侧和Z侧),该连接将被自动批准。
PROVISIONINGNOT_AVAILABLE连接正在建立中。
PROVISIONEDAVAILABLE连接已建立。
