Get Active Alerts

Retrieve specific system alerts that match the provided criteria.

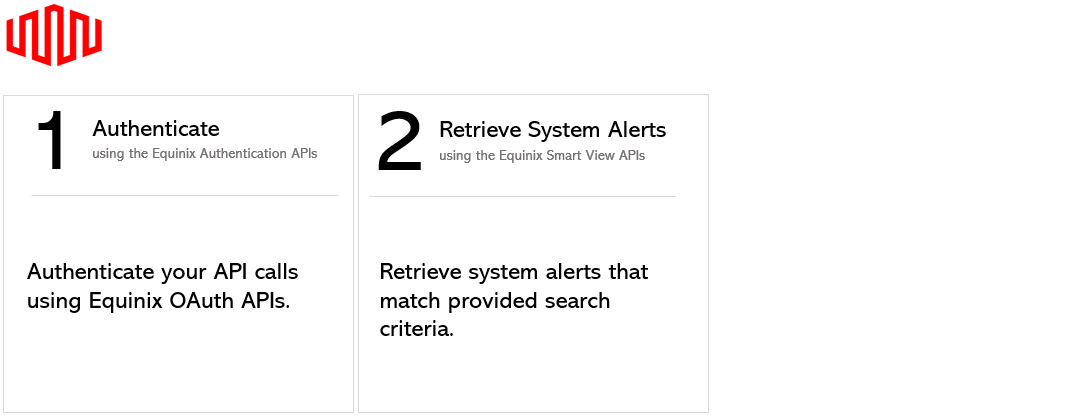

Prerequisites

Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call the OAuth API to validate and authenticate your credentials.

Searching System Alerts

To search system alerts that match provided search criteria, send a POST request to the /smartview/v2/systemAlerts/search endpoint. Specify the search criteria in the body of the request.

Sample cURL Request - retrieve active system alerts:

curl -X POST 'https://api.equinix.com/smartview/v2/systemAlerts/search'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "filter": {
        "and": [
            {
                "property": "/status",
                "operator": "=",
                "values": [
                    "ACTIVE"
                ]
            }
        ]
    },
    "pagination": {
        "offset": 0,
        "limit": 50
    }
}'

Sample Response:

{
    "data": [
        {
            "id": 1931,
            "alertUid": "LD9.Generator-DH09-PG2:gensetavailableinauto#DIGITAL:ALARM",
            "traceUid": "1687495706640/LD9.Generator-DH09-PG2:gensetavailableinauto#DIGITAL:ALARM",
            "assetTagUid": "LD9.Generator-DH09-PG2:gensetavailableinauto",
            "assetTagDisplayName": "Genset Available In Auto",
            "status": "ACTIVE",
            "value": {
                "alertTagValue": "true",
                "alertTagValueDisplayName": "OPEN",
                "activeAlertTagValueDisplayName": "OPEN",
                "currentTagValue": "CLOSED"
            },
            "asset": {
                "ibx": "LD9",
                "assetUid": "LD9.Generator-DH09-PG2",
                "assetType": "Generator",
                "assetClassification": "Electrical",
                "assetRegion": null,
                "assetUnderMaintenance": false
            },
            "configuration": {
                "thresholdValue": "1",
                "thresholdValueDisplayName": "OPEN",
                "unitOfMeasurement": "&",
                "thresholdType": "DIGITAL",
                "conditionName": "ALARM",
                "configurationVersion": "1.0"
            },
            "activeProcessing": {
                "edgeCollectedOn": "2023-06-23T04:48:26.640Z",
                "tagCalculationJobProcessedOn": "2023-06-23T04:48:26.840Z",
                "processingStartOn": "2023-06-23T04:49:01.182223Z",
                "processingEndOn": "2023-06-23T04:49:01.282301Z",
                "publishedOn": "2023-06-23T04:49:01.282301Z"
            },
            "inactiveProcessing": {
                "edgeCollectedOn": null,
                "tagCalculationJobProcessedOn": null,
                "processingStartOn": null,
                "processingEndOn": null,
                "publishedOn": null
            }
        },
        {
            "id": 9684,
            "alertUid": "LD4.UPS-4-2-G-15:lowbatteryalarm#DIGITAL:ALARM",
            "traceUid": "1687474008537/LD4.UPS-4-2-G-15:lowbatteryalarm#DIGITAL:ALARM",
            "assetTagUid": "LD4.UPS-4-2-G-15:lowbatteryalarm",
            "assetTagDisplayName": "Low Battery Alarm",
            "status": "ACTIVE",
            "value": {
                "alertTagValue": "true",
                "alertTagValueDisplayName": "OPEN",
                "activeAlertTagValueDisplayName": "OPEN",
                "currentTagValue": "OPEN"
            },
            "asset": {
                "ibx": "LD4",
                "assetUid": "LD4.UPS-4-2-G-15",
                "assetType": "UPS",
                "assetClassification": "Electrical",
                "assetRegion": null,
                "assetUnderMaintenance": false
            },
            "configuration": {
                "thresholdValue": "1",
                "thresholdValueDisplayName": "OPEN",
                "unitOfMeasurement": "&",
                "thresholdType": "DIGITAL",
                "conditionName": "ALARM",
                "configurationVersion": "1.0"
            },
            "activeProcessing": {
                "edgeCollectedOn": "2023-06-22T22:46:48.537Z",
                "tagCalculationJobProcessedOn": "2023-06-22T22:46:48.737Z",
                "processingStartOn": "2023-06-22T22:47:37.722099Z",
                "processingEndOn": "2023-06-22T22:47:37.802681Z",
                "publishedOn": "2023-06-22T22:47:37.802681Z"
            },
            "inactiveProcessing": {
                "edgeCollectedOn": null,
                "tagCalculationJobProcessedOn": null,
                "processingStartOn": null,
                "processingEndOn": null,
                "publishedOn": null
            }
        }
    ],
    "pagination": {
        "offset": 20,
        "limit": 10,
        "total": 2
    }
}

Getting All System Alerts

To get all system alerts, send a GET request to the /smartview/v2/systemAlerts/search endpoint. Pagination and filtering criteria are available as query parameters.
