Ordering Patch Cable Move

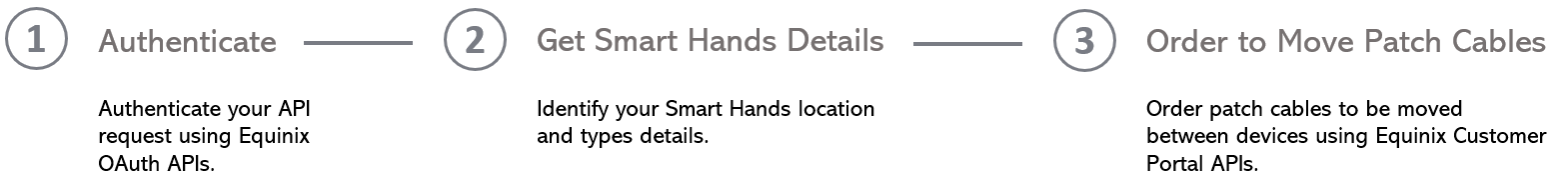

Prerequisites

1. To get Smart Hands details, you must have Smart Hands permission.

2. Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call the OAuth API to validate and authenticate your credentials.

3. Get Smart Hands Types - Send a GET request to the /v1/orders/smarthands/types endpoint to get all Smart Hands order types. You may skip this step if you already know the Smart Hands order type.

4. Get Location Information - Send a GET request to the /v1/orders/smarthands/locations endpoint to retrieve available IBX locations that you have access to. You may skip this step if you already know the location information.

Order Move Patch Cables

To place an order for patch cables to be moved between devices by an Equinix IBX Technician, send a POST request to the /v1/orders/smarthands/moveJumperCable endpoint.

This can only be done by a user with Smart Hands ordering permission.

Example cURL for moving a patch cable without additional information, attachments, or contacts**

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/moveJumperCable"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "quantity": "1",
    "scopeOfWork": "Move cable from Server01 to Server 09, and ensure cable tag is easily seen at all times. Cable ID is 1-12345-67890. Any available slots or ports."
  },
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "userName": "johndoe",
      "workPhonePrefToCall": "ANYTIME"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    }
  ]
}'

Example cURL for moving a patch cable with additional information, attachments, and contacts:

note

Before creating an order with attachment, call the Attachments File endpoint.

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/moveJumperCable"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
  "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "quantity": "1",
    "cableId": "1-12345-67890",
    "currentDeviceDetails": {
      "name": "NH-Server-01",
      "slot": "50",
      "port": "50"
    },
    "newDeviceDetails": {
      "name": "NH-Server-09",
      "slot": "Next Available",
      "port": "Next Available"
    },
    "scopeOfWork": "Refer to attachment for cable details.",
    "needSupportFromASubmarineCableStationEngineer": true
  },
  "attachments": [
    {
      "id": "fcb4a673-6308-456e-8f83-f745501d60ba",
      "name": "MoveCablesInstructions.docx"
    }
  ],
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "customerReferenceNumber": "EQX-PO2019-08-001",
  "purchaseOrder": {
    "purchaseOrderType": "EXEMPTED",
    "attachment": {
      "id": "abc1fd2e-345f-67g4-hi89-01jk234l5m6n",
      "name": "PurchaseOrderExemptionForm123.docx"
    }
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "name": "Jane Smith",
      "email": "janesmith@corporation.com",
      "workPhoneCountryCode": "+44",
      "workPhone": "0148211111",
      "workPhonePrefToCall": "MY_BUSINESS_HOURS",
      "workPhoneTimeZone": "Europe/London",
      "mobilePhoneCountryCode": "+44",
      "mobilePhone": "0123456789",
      "mobilePhonePrefToCall": "MY_BUSINESS_HOURS",
      "mobilePhoneTimeZone": "Europe/London"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "jillsnow"
    }
  ]
}'

Example cURL for moving multiple patch cables without additional information, attachments, or contacts:

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/moveJumperCable"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
  "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "cabinets": [
          "AM1:0J:00JD11:0001"
        ],
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "quantity": "12+",
    "scopeOfWork": "Move all cables from Server01 to Server 09, and ensure cable tag is easily seen at all times. Any available slots or ports"
  },
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "userName": "johndoe",
      "workPhonePrefToCall": "ANYTIME"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    }
  ]
}'

Example cURL for moving multiple patch cables with additional information, attachments, and contacts:

note

Before creating an order with attachment, call the Attachments File endpoint.

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/moveJumperCable"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "cabinets": [
          "AM1:0J:00JD11:0001"
        ],
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "quantity": "12+",
    "scopeOfWork": "Refer to attachment for cable details.",
    "needSupportFromASubmarineCableStationEngineer": true
  },
  "attachments": [
    {
      "id": "fcb4a673-6308-456e-8f83-f745501d60ba",
      "name": "MoveCablesInstructions.docx"
    }
  ],
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "customerReferenceNumber": "EQX-PO2019-08-001",
  "purchaseOrder": {
    "purchaseOrderType": "EXEMPTED",
    "attachment": {
      "id": "abc1fd2e-345f-67g4-hi89-01jk234l5m6n",
      "name": "PurchaseOrderExemptionForm123.docx"
    }
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "name": "Jane Smith",
      "email": "janesmith@corporation.com",
      "workPhoneCountryCode": "+44",
      "workPhone": "0148211111",
      "workPhonePrefToCall": "MY_BUSINESS_HOURS",
      "workPhoneTimeZone": "Europe/London",
      "mobilePhoneCountryCode": "+44",
      "mobilePhone": "0123456789",
      "mobilePhonePrefToCall": "MY_BUSINESS_HOURS",
      "mobilePhoneTimeZone": "Europe/London"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "jillsnow"
    }
  ]
}'

Sample Response:

{
  "OrderNumber": "1-457809872838"
}

The response indicates the order was successful and returns the order number.
