Order Inbound Shipment Unpacking

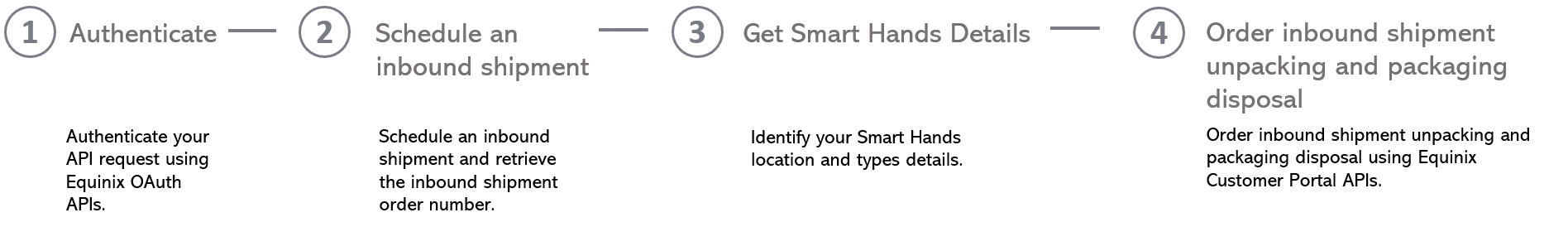

Prerequisites

1. Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call the OAuth API to validate and authenticate your credentials.

2. Retrieve your inbound shipment order number - send a GET request to the [/colocations/v2/orders/{orderId}](/api-catalog/ordersv2/#tag/Orders/operation/GET Order details) endpoint to retrieve an order number for an inbound shipment that has already been scheduled. To schedule a new inbound shipment, send a POST request to the [/colocations/v2/orders/shipments](/api-catalog/shipmentsv2/#tag/Shipments/operation/Schedule inbound or outbound shipment) endpoint. To schedule an inbound shipment, the user must have Shipments permission. You may skip this step if you already have the inbound shipment order number.

3. To get Smart Hands details, you must have Smart Hands ordering permission.

4. Get Smart Hands Types - Send a GET request to the /v1/orders/smarthands/types endpoint to get all Smart Hands order types. You may skip this step if you already know the Smart Hands order type.

5. Get Location Information - Send a GET request to the /v1/orders/smarthands/locations endpoint to retrieve available IBX locations that you have access to. You may skip this step if you already know the location information.

Order Inbound Shipment Unpacking and Packaging Disposal

To request Inbound Shipment unpacking and packaging disposal, send a POST request to the /smarthands/shipmentUnpack endpoint. Specify the details of your package and instructions in the body of the request. Use the optional attachments object to include additional details for a technician.

note

Before creating an order with attachment, call the Attachments File endpoint.

Sample cURL Request:

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/shipmentUnpack"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "cabinets": [
            "AM1:0J:00JD11:0001"
        ],
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "inboundShipmentOrderNumber": "1-190403752735",
    "discardShipmentMaterial": false,
    "copyOfPackingSlipNeeded": false,
    "scopeOfWork": "Flatten the boxes and keep them by the side of the cage.",
    "needSupportFromASubmarineCableStationEngineer": true
  },
  "attachments": [
    {
        "id": "26f40e6e-dd6e-48fa-a797-62c0d3157388",
        "name": "AdditionalShipmentWorkDetails.docx"
    }
  ],
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "customerReferenceNumber": "EQX-PO2019-08-001",
  "purchaseOrder": {
    "purchaseOrderType": "EXEMPTED",
    "attachment": {
        "id": "abc1fd2e-345f-67g4-hi89-01jk234l5m6n",
        "name": "PurchaseOrderExemptionForm123.docx"
    }
  },
  "contacts": [
    {
        "contactType": "ORDERING",
        "userName": "johndoe"
    },
    {
        "contactType": "TECHNICAL",
        "name": "Jane Smith",
        "email": "janesmith@corporation.com",
        "workPhoneCountryCode": "+44",
        "workPhone": "0148211111",
        "workPhonePrefToCall": "MY_BUSINESS_HOURS",
        "workPhoneTimeZone": "Europe/London",
        "mobilePhoneCountryCode": "+44",
        "mobilePhone": "0123456789",
        "mobilePhonePrefToCall": "MY_BUSINESS_HOURS",
        "mobilePhoneTimeZone": "Europe/London"
    },
    {
        "contactType": "NOTIFICATION",
        "userName": "johndoe"
    },
    {
        "contactType": "NOTIFICATION",
        "userName": "janesmith"
    }
  ]
}'

For a complete list of body parameters and descriptions, see the API Reference.

Sample Response:

{
  "OrderNumber": "1-457809872838"
}

The response indicates the order was successful and returns the order number.
