Order Photos or Documentation of Your Cage

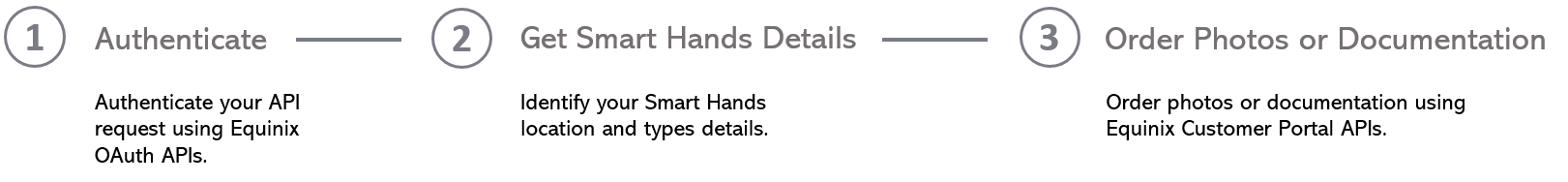

Prerequisites​

  1. To get Smart Hands details, you must have Smart Hands permission.

  2. Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call the OAuth API to validate and authenticate your credentials.

  3. Get Smart Hands Types - Send a GET request to the /v1/orders/smarthands/types endpoint to get all Smart Hands order types. You may skip this step if you already know the Smart Hands order type.

  4. Get Location Information - Send a GET request to the /v1/orders/smarthands/locations endpoint to retrieve available IBX locations that you have access to. You may skip this step if you already know the location information.

Order Cage Photos or Documentation - minimal example​

To request an IBX technician to provide cage-related pictures or documentation, send a POST request to the v1/orders/smarthands/picturesDocument endpoint. Provide the service details in the body of the request.

Sample cURL Request:

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/picturesDocument"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "documentOnly": false,
    "cameraProvidedBy": "Equinix",
    "specificDateAndTime": true,
    "description": "Take a photo of the patch panel cable arrangement, to include all labels clearly.",
    "scopeOfWork": "Indicate what camera was used, and provide the photos in print size 3.6 x 3.007 inches.",
  },
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "purchaseOrder": {
    "purchaseOrderType": "NEW",
    "number": "1037503648"
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "userName": "johndoe",
      "workPhonePrefToCall": "ANYTIME"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    }
  ]
}'

Sample Response:

{
  "OrderNumber": "1-457809872838"
}

The response indicates the order was successful and returns the order number.

Order Cage Photos or Documentation - extended example​

To request an IBX technician to provide cage-related pictures or documentation, send a POST request to the v1/orders/smarthands/picturesDocument endpoint. Provide the service details in the body of the request. Use the attachments object to include additional details for a technician.

note

Before creating an order with attachment, call the Attachments File endpoint.

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/picturesDocument"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "cabinets": [
          "AM1:0J:00JD11:0001"
        ],
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "documentOnly": false,
    "cameraProvidedBy": "Equinix",
    "specificDateAndTime": true,
    "description": "Take a photo of the patch panel cable arrangement, to include all labels clearly.",
    "scopeOfWork": "Indicate what camera was used, and provide the photos in print size 3.6 x 3.007 inches.",
    "needSupportFromASubmarineCableStationEngineer": true
  },
  "attachments": [
    {
      "id": "fcb2k8763-2947-456e-8d68-f280753d60ba",
      "name": "SupportingPhotos.docx"
    }
  ],
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "customerReferenceNumber": "EQX-PO2019-08-001",
  "purchaseOrder": {
    "purchaseOrderType": "EXEMPTED",
    "attachment": {
      "id": "abc1fd2e-345f-67g4-hi89-01jk234l5m6n",
      "name": "PurchaseOrderExemptionForm123.docx"
    }
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "name": "Jane Smith",
      "email": "janesmith@corporation.com",
      "workPhoneCountryCode": "+44",
      "workPhone": "0148211111",
      "workPhonePrefToCall": "MY_BUSINESS_HOURS",
      "workPhoneTimeZone": "Europe/London",
      "mobilePhoneCountryCode": "+44",
      "mobilePhone": "0123456789",
      "mobilePhonePrefToCall": "MY_BUSINESS_HOURS",
      "mobilePhoneTimeZone": "Europe/London"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "jillsnow"
    }
  ]
}'

For a complete list of body parameters and descriptions, see the API Reference.
