Order Cage Clean-up

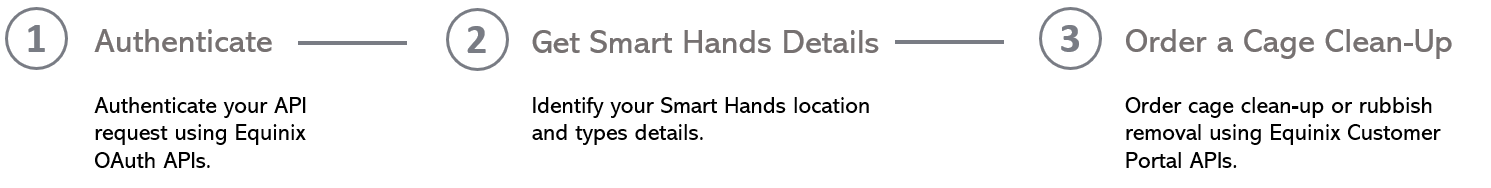

Prerequisites

1. To get Smart Hands details, you must have Smart Hands permission.

2. Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call the OAuth API to validate and authenticate your credentials.

3. Get Smart Hands Types - Send a GET request to the /v1/orders/smarthands/types endpoint to get all Smart Hands order types. You may skip this step if you already know the Smart Hands order type.

4. Get Location Information - Send a GET request to the /v1/orders/smarthands/locations endpoint to retrieve available IBX locations that you have access to. You may skip this step if you already know the location information.

Order a Cage Clean-Up - minimal example

To order trash removal or cage cleanup for a specific cage, send a POST request to the /smarthands/cageCleanup endpoint. Specify the location, schedule, contacts, and service details in the body of the request.

Sample cURL Request:

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/cageCleanup"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "permissionToDiscardBoxes": true,
    "dampMoistMopRequired": true,
    "scopeOfWork": "Light dusting of equipment, microfiber mop to be used."
  },
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "contacts": [
    {
        "contactType": "ORDERING",
        "userName": "johndoe"
    },
    {
        "contactType": "TECHNICAL",
        "userName": "johndoe",
        "workPhonePrefToCall": "ANYTIME"
    },
    {
        "contactType": "NOTIFICATION",
        "userName": "johndoe"
    }
  ]
}'

For a complete list of body parameters and descriptions, see the API Reference.

Sample Response:

{
    "OrderNumber": "1-190368976438"
}

The response indicates the order was successful and returns the order number.

Order a Cage Clean-Up - extended example

To order trash removal or cage cleanup for a specific cage, send a POST request to the /smarthands/cageCleanup endpoint. Specify the location, schedule, contacts, and service details in the body of the request. Use the attachments object to include additional details for a technician.

note

Before creating an order with attachment, call the Attachments File endpoint.

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/cageCleanup"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
   "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "cabinets": [
          "AM1:0J:00JD11:0001"
        ],
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "permissionToDiscardBoxes": true,
    "dampMoistMopRequired": true,
    "scopeOfWork": "Light dusting of equipment, microfiber mop to be used.",
    "needSupportFromASubmarineCableStationEngineer": true
  },
  "attachments": [
    {
      "id": "fcb2k8763-2947-456e-8d68-f280753d60ba",
      "name": "PhotoForCageCleanupServiceDetails.docx"
    }
  ],
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "customerReferenceNumber": "EQX-PO2019-08-001",
  "purchaseOrder": {
    "purchaseOrderType": "EXEMPTED",
    "attachment": {
      "id": "abc1fd2e-345f-67g4-hi89-01jk234l5m6n",
      "name": "PurchaseOrderExemptionForm123.docx"
    }
  },
  "contacts": [
    {
      "contactType": "ORDERING",
      "userName": "johndoe"
    },
    {
      "contactType": "TECHNICAL",
      "name": "Jane Smith",
      "email": "janesmith@corporation.com",
      "workPhoneCountryCode": "+44",
      "workPhone": "0148211111",
      "workPhonePrefToCall": "MY_BUSINESS_HOURS",
      "workPhoneTimeZone": "Europe/London",
      "mobilePhoneCountryCode": "+44",
      "mobilePhone": "0123456789",
      "mobilePhonePrefToCall": "MY_BUSINESS_HOURS",
      "mobilePhoneTimeZone": "Europe/London"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "johndoe"
    },
    {
      "contactType": "NOTIFICATION",
      "userName": "janesmith"
    }
  ]
}'

For a complete list of body parameters and descriptions, see the API Reference.
