Metrics

Monitor specific metric data to measure performance of your assets in near real-time. Streaming network data includes the following metrics:

  • Port Bandwidth Usage Metrics provide a bit per second (bit/s) output for the data transmitted (tx) or received (rx) by the port.

  • Connection Bandwidth Usage provide a bit per second (bit/s) output for the data transmitted (tx) or received (rx) over a connection where a port is the a-side, between a cloud router and a port, and between a cloud router and a cloud service provider.

  • Metro Latency Metrics provide the latency in milliseconds (ms) from a single subscribed metro code to other metros and latency between all metro pairs.

  • Port Error and Dropped Metrics provide the number of packet discards on a given port due to packet format, transmission errors, or even when the port doesn't have bandwidth to accept the packet.

  • Connection Packet Dropped Metrics provide the number of packets dropped on a connection due to exceeding bandwidth limits for both transmitted (tx) or received (rx) data. Only available on the port side of a connection.

Refer to the reference of supported metrics for each asset.

Viewing Metrics​

You can view metrics for an individual port or virtual connection in the Customer Portal. Usage and Packet Drop metrics are available.

  1. Sign in to the Customer Portal > Fabric Dashboard.

  2. Navigate to your Port Inventory or Connections Inventory.

  3. Select a port or virtual connection.

  4. From the port detail or connection detail page, click Metrics.

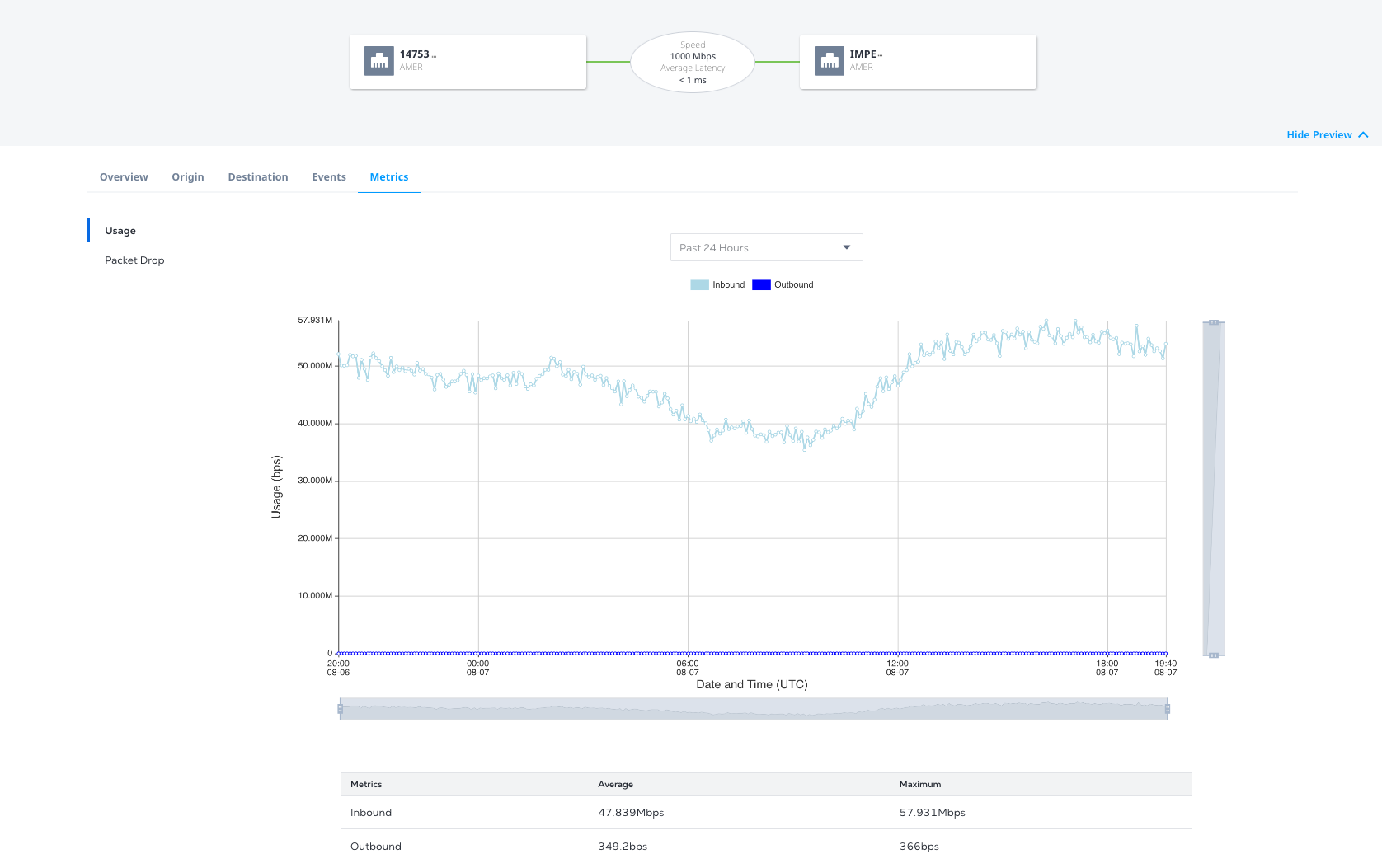

Example Connection Usage Metrics Table

Viewing Metrics from the API​

You can retrieve metrics for individual assets from the Equinix API.

Inter-Metro Latency​

To view the latency between two metros, send a GET request to the /fabric/v4/<asset>/<asset_id>/metrics endpoint where:

  • asset is metros
  • asset_id is the two-letter Metro code
  • and specifying name=equinix.fabric.metro.<origin_metro_code>_<destination_metro_code>.latency as the query parameter for the request.

Sample cURL Request:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/metros/SV/metrics?name=equinix.fabric.metro.sv_am.latency' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
    "pagination": {
        "offset": 0,
        "limit": 10,
        "total": 3,
        "next": null,
        "previous": null
    },
    "data": [
        {
            "type": "GAUGE",
            "name": "equinix.fabric.metro.sv_am.latency",
            "unit": "ms",
            "resource": {
                "href": "https://uatapi.equinix.com/fabric/v4/metros/SV",
                "type": "XF_METRO",
                "description": "Silicon Valley to Amsterdam intermetro latency, average in milliseconds"
            },
            "summary": {
                "mean": 136.9,
                "max": 137
            },
            "datapoints": [
                {
                    "endDateTime": "2025-06-05T18:50:03Z",
                    "value": 137
                },
                {
                    "endDateTime": "2025-06-05T18:55:03Z",
                    "value": 137
                },
                {
                    "endDateTime": "2025-06-05T19:00:03Z",
                    "value": 137
                },
                {
                    "endDateTime": "2025-06-05T19:05:03Z",
                    "value": 137
                }
            ]
        }
    ]
}

To view the real-time latency between all metro pairs, send a GET request to the /fabric/v4/metrics endpoint. In the query parameters, specify:

  • name=equinix.fabric.metro.*.latency and value=last.
  • Optionally include the parameter limit=<limit> to specify the desired number of metric types to return from the results.
  • Optionally include the parameter offset=<offset> to specify the number of results to skip.

Sample cURL Request:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/metrics?value=last&limit=3&name=equinix.fabric.metro.*.latency' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
  "pagination": {
    "offset": 0,
    "limit": 3,
    "total": 4112,
    "next": "/metrics?offset=3&limit=3&fromDateTime=2026-01-29T18:05:44.041Z&name=equinix.fabric.metro.*.latency&toDateTime=2026-01-30T18:05:44.041Z"
  },
  "data": [
    {
      "type": "GAUGE",
      "name": "equinix.fabric.metro.am_at.latency",
      "unit": "ms",
      "resource": {
        "href": "https://api.equinix.com/fabric/v4/metros/AM",
        "type": "XF_METRO",
        "code": "AM",
        "description": "Amsterdam to Atlanta intermetro latency, average in milliseconds"
      },
      "datapoints": [
        {
          "endDateTime": "2026-01-30T18:05:00Z",
          "value": 94.7
        }
      ]
    },
    {
      "type": "GAUGE",
      "name": "equinix.fabric.metro.am_ba.latency",
      "unit": "ms",
      "resource": {
        "href": "https://api.equinix.com/fabric/v4/metros/AM",
        "type": "XF_METRO",
        "code": "AM",
        "description": "Amsterdam to Barcelona intermetro latency, average in milliseconds"
      },
      "datapoints": [
        {
          "endDateTime": "2026-01-30T18:05:00Z",
          "value": 28.8
        }
      ]
    },
    {
      "type": "GAUGE",
      "name": "equinix.fabric.metro.am_bg.latency",
      "unit": "ms",
      "resource": {
        "href": "https://api.equinix.com/fabric/v4/metros/AM",
        "type": "XF_METRO",
        "code": "AM",
        "description": "Amsterdam to Bogota intermetro latency, average in milliseconds"
      },
      "datapoints": [
        {
          "endDateTime": "2026-01-30T18:05:00Z",
          "value": 159
        }
      ]
    }
  ]
}

Port Bandwidth Usage​

To view a port's bandwidth usage, send a GET request to the /fabric/v4/<asset>/<asset_id>/metrics endpoint where:

  • asset is ports
  • asset_id is the uuid of a specific port

Query Parameters:

  • Inbound - equinix.fabric.port.bandwidth_rx.usage
  • Outbound - equinix.fabric.port.bandwidth_tx.usage

To see all bandwidth usage, specify name=equinix.fabric.port.bandwidth_rx.usage&name=equinix.fabric.port.bandwidth_tx.usage as the query parameter for the request. Specify a time period with fromDateTime and toDateTime.

Sample cURL Request:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/ports/<port_id>/metrics?name=equinix.fabric.port.bandwidth_rx.usage&name=equinix.fabric.port.bandwidth_tx.usage&fromDateTime=2025-05-12T19%3A18%3A00Z&toDateTime=2025-05-13T19%3A18%3A00Z' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
    "pagination": {
        "offset": 0,
        "limit": 10,
        "total": 2,
        "next": null,
        "previous": null
    },
    "data": [
        {
            "type": "GAUGE",
            "name": "equinix.fabric.port.bandwidth_rx.usage",
            "unit": "bit/s",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/ports/<portId>",
                "type": "XF_PORT",
                "uuid": "<portId>",
                "state": "PROVISIONED",
                "name": "TEST-PORT-NAME"
            },
            "summary": {
                "mean": 198.7,
                "max": 219
            },
            "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:20:47.000Z",
                    "value": 202
                },
                {
                    "endDateTime": "2025-05-12T19:25:51.000Z",
                    "value": 192
                },
                {
                    "endDateTime": "2025-05-12T19:30:51.000Z",
                    "value": 203
                },
                {
                    "endDateTime": "2025-05-12T19:35:53.000Z",
                    "value": 194
                }
            ]
        },
        {
            "type": "GAUGE",
            "name": "equinix.fabric.port.bandwidth_tx.usage",
            "unit": "bit/s",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/ports/<portId>",
                "type": "XF_PORT",
                "uuid": "<portId>",
                "state": "PROVISIONED",
                "name": "TEST-PORT-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
            "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:20:47.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:25:51.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:30:51.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:35:53.000Z",
                    "value": 0
                }
            ]
        }
    ]
}

Port Packets Dropped​

To view a count of the packets dropped from a port, send a GET request to the /fabric/v4/<asset>/<asset_id>/metrics endpoint where:

  • asset is ports
  • asset_id is the uuid of a specific port

Query Parameters:

  • Inbound - equinix.fabric.port.packets_dropped_rx.count
  • Outbound - equinix.fabric.port.packets_dropped_tx.count

To get a count of all dropped packets, specify name=equinix.fabric.port.packets_dropped_rx.count&name=equinix.fabric.port.packets_dropped_tx.count as the query parameter for the request. Specify a time period with fromDateTime and toDateTime.

Sample cURL Request:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/ports/<portId>/metrics?name=equinix.fabric.port.packets_dropped_rx.count&name=equinix.fabric.port.packets_dropped_tx.count&fromDateTime=2025-05-12T19%3A18%3A00Z&toDateTime=2025-05-13T19%3A18%3A00Z' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
    "pagination": {
        "offset": 0,
        "limit": 10,
        "total": 2,
        "next": null,
        "previous": null
    },
    "data": [
        {
            "type": "SUM",
            "name": "equinix.fabric.port.packets_dropped_rx.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/ports/<portId>",
                "type": "XF_PORT",
                "uuid": "<portId>",
                "state": "PROVISIONED",
                "name": "TEST-PORT-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            }
        },
        {
            "type": "SUM",
            "name": "equinix.fabric.port.packets_dropped_tx.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/ports/<portId>",
                "type": "XF_PORT",
                "uuid": "<portId>",
                "state": "PROVISIONED",
                "name": "TEST-PORT-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            }
        }
    ]
}

Port Packet Errors​

To view the packet errors for a port, send a GET request to the /fabric/v4/<asset>/<asset_id>/metrics endpoint

  • asset is ports
  • asset_id is the uuid of a specific port

Query Parameters:

  • Inbound - equinix.fabric.port.packets_erred_rx.count
  • Outbound - equinix.fabric.port.packets_erred_tx.count

To get a count for all packet errors, specify name=equinix.fabric.port.packets_erred_rx.count&name=equinix.fabric.port.packets_erred_tx.count as the query parameter for the request. Specify a time period with fromDateTime and toDateTime.

Sample cURL Request:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/ports/<portId>/metrics?name=equinix.fabric.port.packets_erred_rx.count&name=equinix.fabric.port.packets_erred_tx.count&fromDateTime=2025-05-12T19%3A18%3A00Z&toDateTime=2025-05-13T19%3A18%3A00Z' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
    "pagination": {
        "offset": 0,
        "limit": 10,
        "total": 2,
        "next": null,
        "previous": null
    },
    "data": [
        {
            "type": "SUM",
            "name": "equinix.fabric.port.packets_erred_rx.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/ports/<portId>",
                "type": "XF_PORT",
                "uuid": "<portId>",
                "state": "PROVISIONED",
                "name": "TEST-PORT-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            }
        },
        {
            "type": "SUM",
            "name": "equinix.fabric.port.packets_erred_tx.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/ports/<portId>",
                "type": "XF_PORT",
                "uuid": "<portId>",
                "state": "PROVISIONED",
                "name": "TEST-PORT-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            }
        }
    ]
}

Connection Bandwidth Usage​

To view a connection's bandwidth usage, send a GET request to the /fabric/v4/<asset>/<asset_id>/metrics endpoint where:

  • asset is connections
  • asset_id is the uuid of a specific connection

Query Parameters:

  • Inbound - equinix.fabric.connection.bandwidth_rx.usage
  • Outbound - equinix.fabric.connection.bandwidth_tx.usage

To see all bandwidth usage, specify name=equinix.fabric.connection.bandwidth_rx.usage&name=equinix.fabric.connection.bandwidth_tx.usage as the query parameter for the request. Specify a time period with fromDateTime and toDateTime.

Sample cURL Request:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/connections/<connectionId>/metrics?name=equinix.fabric.connection.bandwidth_rx.usage&name=equinix.fabric.connection.bandwidth_tx.usage&fromDateTime=2025-05-12T19%3A18%3A00Z&toDateTime=2025-05-13T19%3A18%3A00Z' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
    "pagination": {
        "offset": 0,
        "limit": 10,
        "total": 2,
        "next": null,
        "previous": null
    },
    "data": [
        {
            "type": "GAUGE",
            "name": "equinix.fabric.connection.bandwidth_rx.usage",
            "unit": "bit/s",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/connections/<connectionId>",
                "type": "EVPL_VC",
                "uuid": "<connectionId>",
                "state": "PROVISIONED",
                "name": "TEST-CONNECTION-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
            "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:22:48.000Z",
                    "value": 202
                },
                {
                    "endDateTime": "2025-05-12T19:27:50.000Z",
                    "value": 192
                },
                {
                    "endDateTime": "2025-05-12T19:31:51.000Z",
                    "value": 203
                },
                {
                    "endDateTime": "2025-05-12T19:37:45.000Z",
                    "value": 194
                }
            ]
        },
        {
            "type": "GAUGE",
            "name": "equinix.fabric.connection.bandwidth_tx.usage",
            "unit": "bit/s",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/connections/<connectionId>",
                "type": "EVPL_VC",
                "uuid": "<connectionId>",
                "state": "PROVISIONED",
                "name": "TEST-CONNECTION-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
            "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:22:48.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:27:50.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:31:51.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:37:45.000Z",
                    "value": 0
                }
            ]
        }
    ]
}

Connection Packets Dropped​

To view the packets dropped from a connection, send a GET request to the /fabric/v4/<asset>/<asset_id>/metrics endpoint where:

  • asset is connections
  • asset_id is the uuid of a specific connection

Metrics are available for the a-side, z-side, inbound, and outbound of the connection.

Query Parameters:

  • Inbound a-side - equinix.fabric.connection.packets_dropped_rx_aside_rateexceeded.count
  • Outbound a-side - equinix.fabric.connection.packets_dropped_tx_aside_rateexceeded.count
  • Inbound z-side - equinix.fabric.connection.packets_dropped_rx_zside_rateexceeded.count
  • Outbound z-side - equinix.fabric.connection.packets_dropped_tx_zside_rateexceeded.count

To view all the dropped packets for the connection, specify name=equinix.fabric.connection.packets_dropped_rx_aside_rateexceeded.count&name=equinix.fabric.connection.packets_dropped_tx_aside_rateexceeded.count&name=equinix.fabric.connection.packets_dropped_rx_zside_rateexceeded.count&name=equinix.fabric.connection.packets_dropped_tx_zside_rateexceeded.count as the query parameter for the request. Specify a time period with fromDateTime and toDateTime.

curl -X 'GET' 'https://api.equinix.com/fabric/v4/connections/<connectionId>/metrics?name=equinix.fabric.connection.packets_dropped_rx_aside_rateexceeded.count&name=equinix.fabric.connection.packets_dropped_tx_aside_rateexceeded.count&name=equinix.fabric.connection.packets_dropped_rx_zside_rateexceeded.count&name=equinix.fabric.connection.packets_dropped_tx_zside_rateexceeded.count&fromDateTime=2025-05-12T19%3A18%3A00Z&toDateTime=2025-05-13T19%3A18%3A00Z' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'
Sample Response:
{
    "pagination": {
        "offset": 0,
        "limit": 10,
        "total": 2,
        "next": null,
        "previous": null
    },
    "data": [
        {
            "type": "SUM",
            "name": "equinix.fabric.connection.packets_dropped_rx_aside_rateexceeded.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/connections/<connectionId>",
                "type": "EVPL_VC",
                "uuid": "<connectionId>",
                "state": "PROVISIONED",
                "name": "TEST-CONNECTION-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
             "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:28:59.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:34:01.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:36:16.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:42:12.000Z",
                    "value": 0
                }
            ]
        },
        {
            "type": "SUM",
            "name": "equinix.fabric.connection.packets_dropped_tx_aside_rateexceeded.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/connections/<connectionId>",
                "type": "EVPL_VC",
                "uuid": "<connectionId>",
                "state": "PROVISIONED",
                "name": "TEST-CONNECTION-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
             "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:28:59.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:34:01.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:36:16.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:42:12.000Z",
                    "value": 0
                }
            ]
        },
               {
            "type": "SUM",
            "name": "equinix.fabric.connection.packets_dropped_rx_zside_rateexceeded.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/connections/<connectionId>",
                "type": "EVPL_VC",
                "uuid": "<connectionId>",
                "state": "PROVISIONED",
                "name": "TEST-CONNECTION-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
             "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:28:59.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:34:01.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:36:16.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:42:12.000Z",
                    "value": 0
                }
            ]
        },
        {
            "type": "SUM",
            "name": "equinix.fabric.connection.packets_dropped_tx_zside_rateexceeded.count",
            "unit": "packet",
            "resource": {
                "href": "https://api.equinix.com/fabric/v4/connections/<connectionId>",
                "type": "EVPL_VC",
                "uuid": "<connectionId>",
                "state": "PROVISIONED",
                "name": "TEST-CONNECTION-NAME"
            },
            "summary": {
                "mean": 0,
                "max": 0
            },
             "datapoints": [
                {
                    "endDateTime": "2025-05-12T19:28:59.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:34:01.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:36:16.000Z",
                    "value": 0
                },
                {
                    "endDateTime": "2025-05-12T19:42:12.000Z",
                    "value": 0
                }
            ]
        }
    ]
}

Creating Metric Alerts​

Use the Stream Alert Rule Management APIs to create events when a metric crosses a defined threshold value. For more information, see Managing Metric Alert Rules

Receiving Metrics in a Sink Integration​

Once you have created a stream, and added assets to that stream, you can create a subscription to have metrics sent to your third-party data collector of choice. Metrics are sent on a 5-minute interval.

Was this page helpful?
