Create a Network Edge Service Profile

Network Edge customers can create a service profile that includes their devices. With a Network Edge Service Profile, you can enable other users (from other accounts) to find and connect to your NE devices. This topic also discusses private profiles versus public profiles.

To create a Network Edge Service Profile:

  1. Sign in to the Equinix Customer Portal and go to Network Edge.

  2. On the Administration menu, select My Service Profiles.

  3. Click Create a Service Profile.

  4. In the Network Edge Service card, click Create a Virtual Service.

  5. In the Service Profile Name field, enter a name for the service profile.

  6. In the Description box, enter a brief description of the service profile.

  7. In the Privacy Mode section, select Public or Private.

  8. If the service profile is Private, enter the email addresses of anyone who should have access to the service profile.

  9. In the Notifications section, enter the email address of anyone who should receive notifications about this profile.

  10. Click Next: Location.

Select the Location​

  1. In the Add available locations section, click a location.

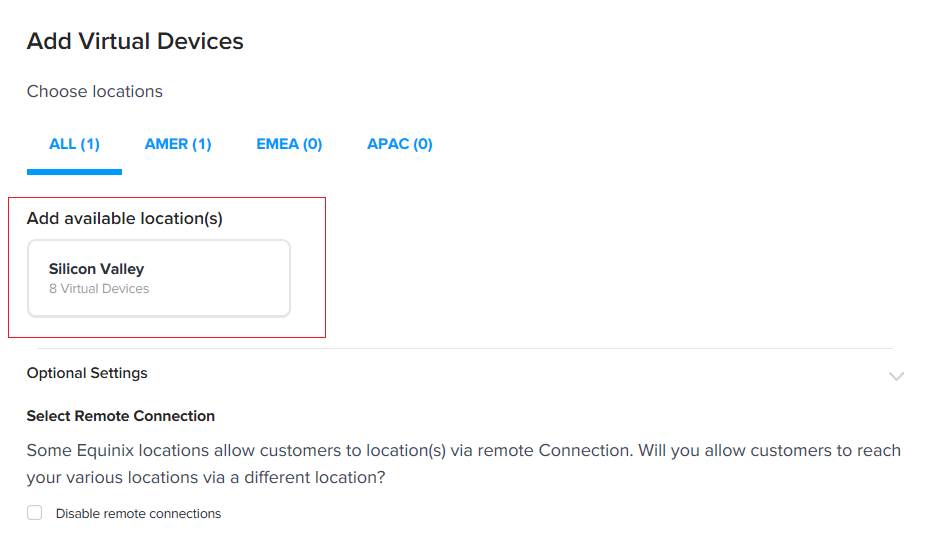

    Add Virtual Devices step with the Add available location(s) section highlighted and a Silicon Valley location card

  2. Select Virtual Devices, Redundant Devices, or Clusters.

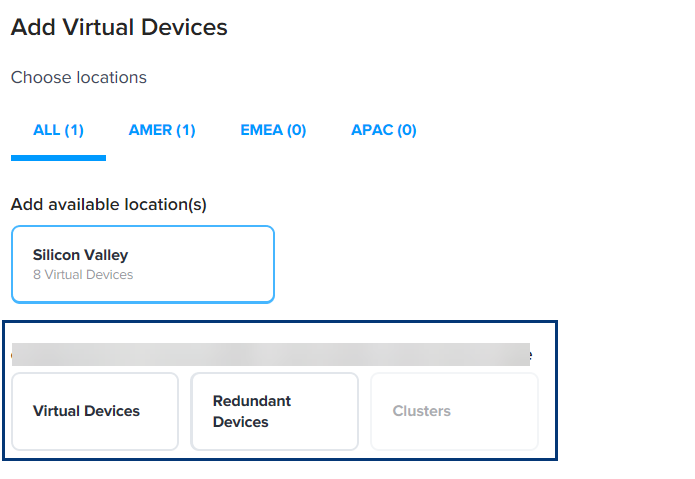

    Add Virtual Devices step with a location selected and Virtual Devices, Redundant Devices, and Clusters options highlighted

  3. In the Select Virtual Devices section, select the devices.

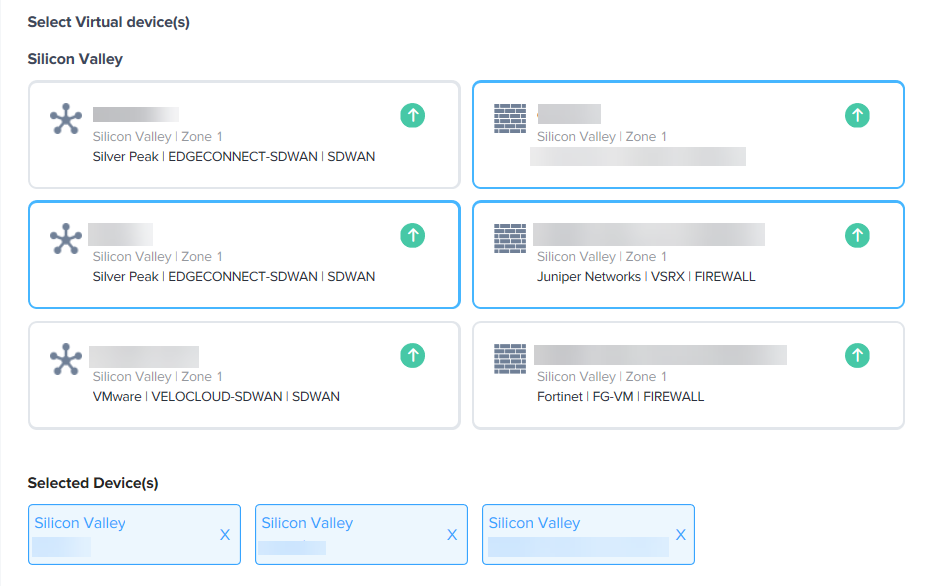

    Select Virtual device(s) list with chosen devices shown in the Selected Device(s) section

    The devices you selected will display in the Selected Device(s) section.

  4. If you do not want customers to reach your location(s) through a different location, select the Disable remote connections checkbox.

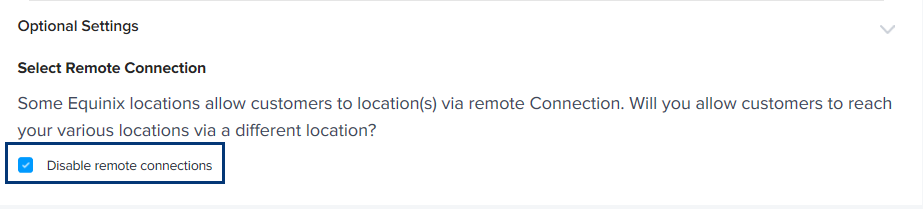

    Select Remote Connection option with the Disable remote connections checkbox checked and highlighted

  5. Click Next: Bandwidth.

Choose Bandwidth​

  1. In the Select Connection Bandwidth section, determine connection speed limits for your subscribers.

    • Click Delete next to any of the speeds listed.
    • Click Add another speed if you want to add a speed that isn't listed.

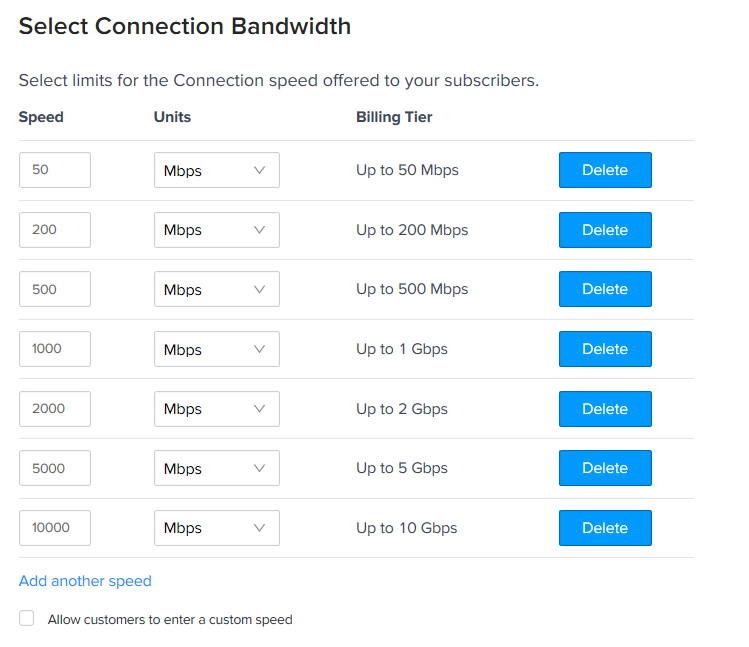

    Select Connection Bandwidth table with speed rows, Delete buttons, Add another speed, and a custom speed checkbox

  2. If you want to allow subscribers to add a custom speed, select the Allow customers to enter a custom speed checkbox.

  3. Click Next: Configuration.

Configuration​

  1. In the Optional Settings section, click Check for Redundancy if you want Network Edge to check the customer's device for redundancy when connecting to the service profile.

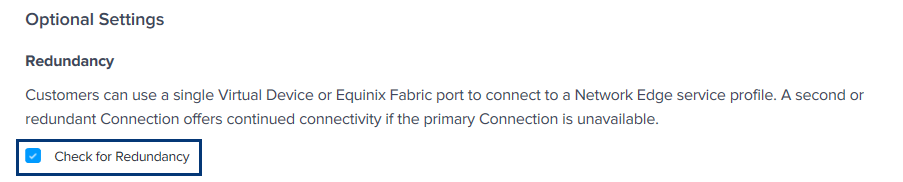

    Optional Settings Redundancy section with the Check for Redundancy checkbox checked and highlighted

  2. Select the Require an Authentication Key from buyers if you want port customers to use a key to access.

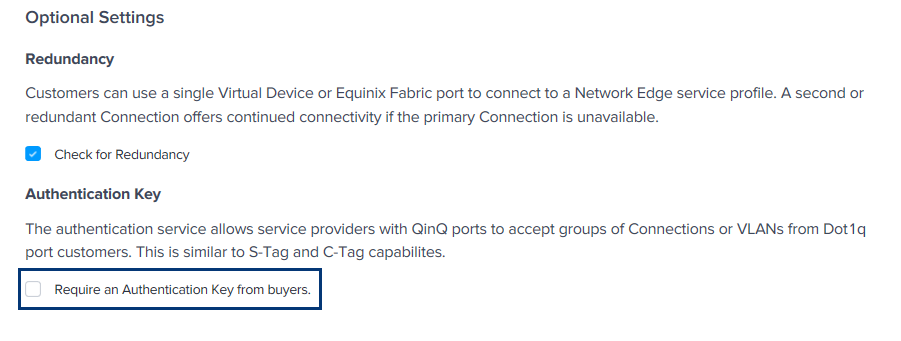

    Authentication Key section with the Require an Authentication Key from buyers checkbox highlighted

  3. If you checked Require an Authentication Key from buyers and you want to use another name for the authentication key, select Use another name for Authentication Key and enter the key in the Authentication Key field.

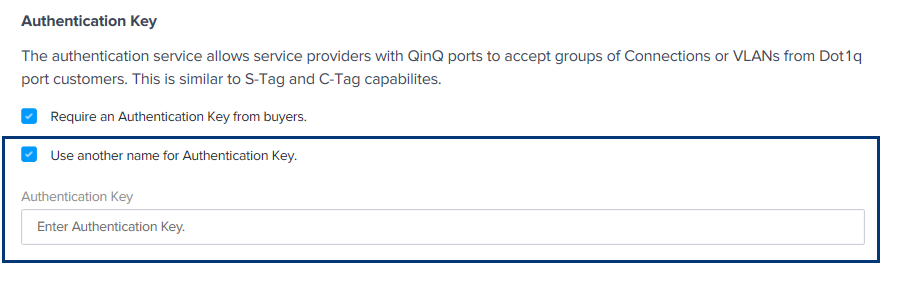

Authentication Key options with Use another name for Authentication Key checked and the key name field highlighted

  1. Click Next: Review and review your order.

  2. Click Submit Order.

Private vs. Public Service Profiles​

Private profiles enable you to grant access (with an A-side service token) to specific Fabric customers, allowing them to view and connect to your service. You can also enable others to connect by editing your existing service profile and adding their email address. See Creating A-Side Service Tokens for information about creating an A-side service token.

note

Connections to private profiles are auto-approved and can be edited by any user associated with your company.

Public profiles allow any Equinix Fabric user to see your service profile and create a connection to it. Public profiles are visible on the Equinix external website. Once created, public profiles are submitted to Equinix for approval. Upon approval, they are available in Equinix Fabric for other Fabric users to view and connect.
