Connect Network Edge Device to Other Service Providers

Establish a direct, layer 2 connection to Cloud Service Providers from your Network Edge Device using the Fabric API.

Fabric API Prerequisites

  1. Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call OAuth API to validate and authenticate your credentials.

  2. Determine Your A-side Information. Retrieve your Network Edge devices information using the Get Virtual Devices or Get Virtual Device {uuid}. You may choose any available interface on the device for your connection. However, Equinix will select an interface if you do not specify one.

  3. Choose the Z-side metro location. Use the Get All Metros API request to find all metros where Equinix Fabric is available and determine destination location.

  4. Identify the Cloud Service Provider's service profile. Use the Retrieve Service Profiles API request to search for a specific service profile or use the Get Service Profiles API request to list all available service profiles, and identify the Cloud Service Provider you want to connect to.

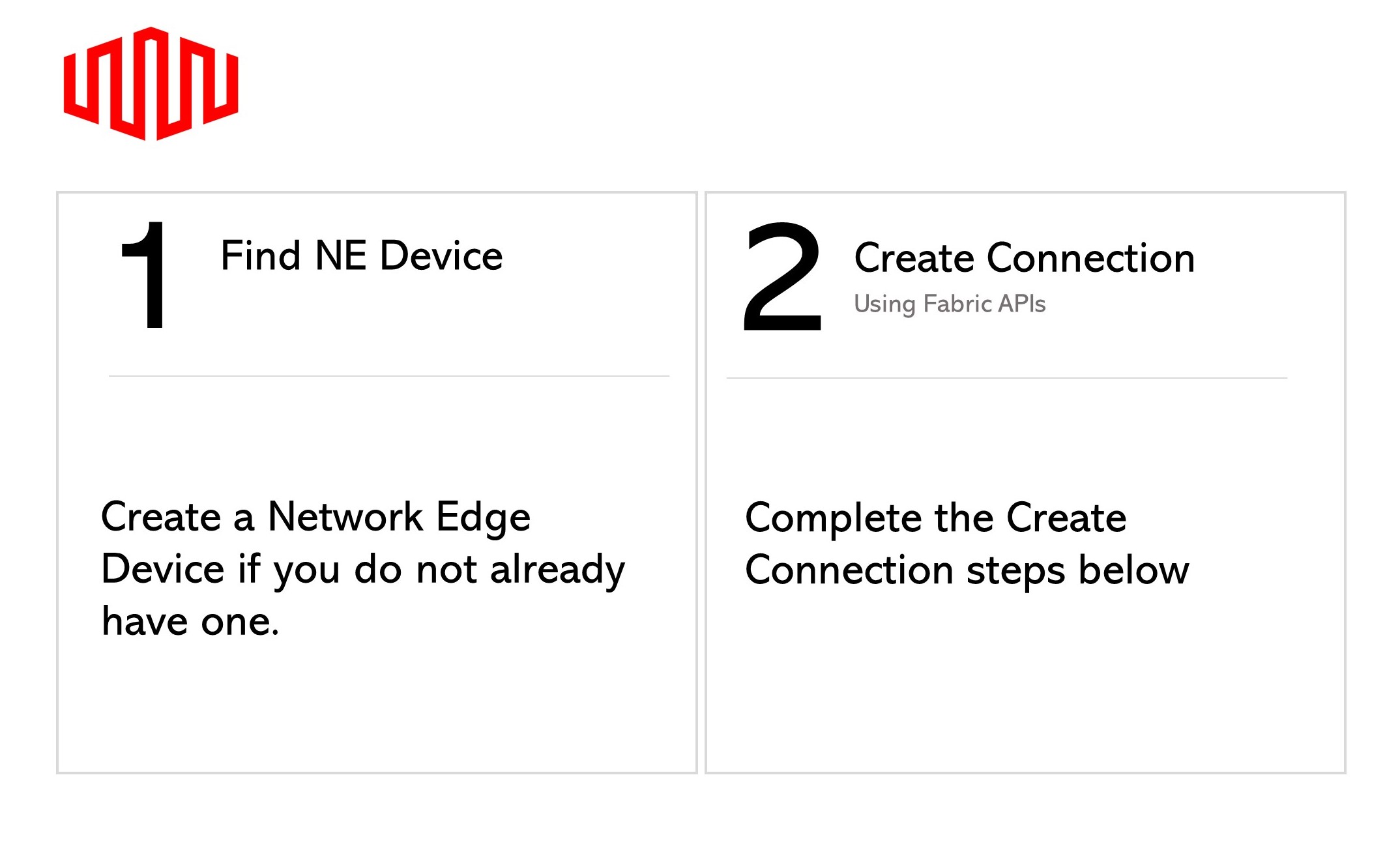

Connecting to a Service Provider

To connect your Network Edge device to a Service provider, send a POST request to the /fabric/v4/connections endpoint. Specify your connection's configuration details in the body of the request.

POST /fabric/v4/connections
MethodPOST
Endpoint/fabric/v4/connections
HeadersAuthorization, Content-Type
Path ParametersNot applicable
Query ParametersNot applicable
Body Parameterstype, name, order, bandwidth, aSide, zSide, notifications

Sample cURL Request:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "vd2other-sp-0412a",
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "VD",
            "virtualDevice": {
                "type": "EDGE",
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXX"
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "SP",
            "profile": {
                "type": "L2_PROFILE",
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXX"
            },
            "location": {
                "metroCode": "DC"
            }
        }
    },
    "project": {
        "projectId": "16799d66-ef43-445c-ba29-d17522d8a137"
    },
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "x@gmail.com"
            ]
        }
    ]
}'

Sample Response:

{
    "type": "EVPL_VC",
    "href": "https://api.equinix.com/fabric/v4/connections/53c89f1a-0be7-44a1-9c03-28059632a72d",
    "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXX",
    "name": "vd2other-sp-0425a",
    "operation": {
        "providerStatus": "PROVISIONING",
        "equinixStatus": "PROVISIONING"
    },
    "order": {
        "purchaseOrderNumber": "1-129105284100",
        "billingTier": "Up to 1G"
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "x@gmail.com"
            ]
        }
    ],
    "changeLog": {
        "createdBy": "fabricamcrh1",
        "createdByFullName": "fabric amcrh1",
        "createdByEmail": "x@gmail.com",
        "createdDateTime": "2024-04-25T20:40:40.676Z",
        "updatedBy": "fabricamcrh1",
        "updatedByFullName": "fabric amcrh1",
        "updatedByEmail": "x@gmail.com",
        "updatedDateTime": "2024-04-25T20:40:40.677Z"
    },
    "bandwidth": 1000,
    "redundancy": {
        "group": "43009a55-87ee-4dff-8ae4-70ccb7c3d4e9",
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "interface": {
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
                "id": 5,
                "type": "CLOUD"
            },
            "location": {
                "metroCode": "DC"
            },
            "virtualDevice": {
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
                "type": "EDGE"
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "location": {
                "metroCode": "DC"
            },
            "profile": {
                "href": "https://api.equinix.com/fabric/v4/serviceProfiles/60ef0382-cdaa-44e7-bd36-b803731816b8",
                "type": "L2_PROFILE",
                "name": "Other Service Provider",
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX"
            }
        }
    }
}

Monitoring the Connection Status

Use the Get Specified Connection endpoint to monitor connection status.

equinixStatus parameter valuesproviderStatus attribute valuesDescription
PROVISIONINGPROVISIONINGConnection request has not been sent to Oracle yet.
PROVISIONEDPROVISIONINGConnection establishment in progress.
PROVISIONEDPROVISIONEDConnection established.
