Rescue Mode

There are times when a server becomes unreachable over SSH due to broken networking, a bad install, misconfiguration, a kernel upgrade, bad firewall rules, etc. When you can’t log into your server at all (you don't have the root password or the server won’t boot up) you can use our Rescue Mode, which loads a vanilla Alpine Linux image into your server's RAM.

If you DO have your server's root password and your SSH key, you should use our Serial Over SSH console.

Requirements

Layer 3 Networking - For us to load the Rescue OS onto your server it must be reachable at an IP address. Therefore, your server must be in a Layer 3 or Hybrid networking mode. If your server is currently in a pure Layer 2 configuration you must convert it to a Layer 3 or Hybrid networking mode to use Rescue Mode.

SSH Keys - To access the server after it boots into the Rescue OS you must have a valid SSH key. The Rescue OS uses the SSH public keys that are associated with your server when you initially provisioned it.

Root Partition - Depending on the type of repair or recovery operations you need to do you'll need the location of the original operating system's root partition. The best way to find this information is before you need rescue mode, from the operating system itself. For example, in Ubuntu you can find the root partition with df -h.

Booting into Rescue Mode

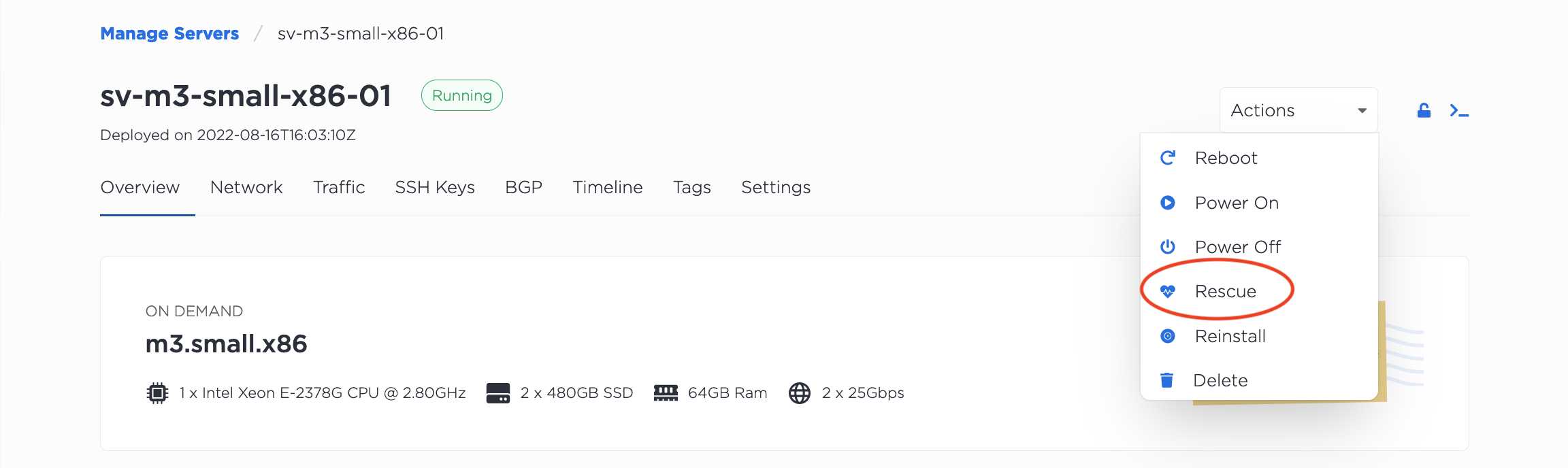

To enter Rescue Mode, you can find Rescue Mode from your server's main Overview page. Click on Server Actions, and select Rescue OS from the dropdown.

This reboots the server, loads the Rescue OS Alpine Linux image into RAM, then boots the server into Alpine Linux. The public IPv4 address of the server stays the same.

Once the server has booted you can SSH as root using authorized SSH keys. If you had previously used SSH to connect to the server, you might get a warning that the host key has changed, and to remove the host key from your known hosts file on the local machine before you can connect.

ssh root@<server_ip_address>

When you have successfully SSHed into the server you will see the Rescue OS intro and command line prompt.

,------.               ,--.        ,--.
|  .---' ,---. ,--.,--.`--',--,--, `--',--.  ,--.
|  `--, | .-. ||  ||  |,--.|      \,--. \  `'  /
|  `---.' '-' |'  ''  '|  ||  ||  ||  | /  /.  \
`------' `-|  | `----' `--'`--''--'`--''--'  '--'
           `--'
===============================================
             OS Rescue Environment
Commit: dd4b2268 (main) BuildNo: unknown
===============================================
Based on Alpine Linux 3.18.4

Use "apk" package manager for additional utilities.
See docs at http://wiki.alpinelinux.org
localhost:~#

Mounting the Original Root Partition

To fix many problems, you need to mount the original OS's root partition. If you don't already know where the original OS's root partition is, you can try to guess. Often, it's dev/sda3 or dev/sdc3. For some of our servers it might be in dev/mdxxx where xxx is the number of the md device.

The examples on this page mount dev/sda3 to /mnt.

mount -t ext4 /dev/sda3 /mnt

Once you have successfully mounted a partition, cd to it.

cd /mnt

Run ls to see the original OS's filesystem.

localhost:/mnt# ls

This example output is from Ubuntu 20.04.

bin         home        libx32      opt         sbin        tmp
boot        lib         lost+found  proc        snap        usr
dev         lib32       media       root        srv         var
etc         lib64       mnt         run         sys

If you have successfully accessed the root partition, you can repair it.

Common Use Cases and Repairs

Resetting the Root Password

In cases when you can normally SSH into your server and can’t use the SOS/OOB console because you have forgotten or haven’t saved the root password, you can reset it through Rescue Mode.

After mounting the root filesystem to /mnt, we can use chroot to load the mounted filesystem and directly use the passwd command to modify the existing root password.

chroot /mnt /bin/bash
>
passwd

Recovering Files

If the server cannot boot into the original OS anymore and you need to recover any important files, you can use scp from Rescue Mode to move them somewhere else.

So, if you have a demo folder located in a /demo folder in your home directory, you can use scp to save them to your local machine.

scp -r root@<server_ip_address>:/mnt/home/demo /User/Downloads

Resize or Add Partitions

By default, the boot drive will have a root partition that utilizes all the drive space. Some servers have additional unformatted drives but if you need to create multiple partitions in the same boot drive, you can go into Rescue Mode to shrink the root partition and create new ones.

The process for doing this can differ depending on the filesystem that you use but if using an OS with ext4 such as Ubuntu, you can use resize2fs and gdisk to resize your filesystem/partition and create additional ones.

It's worth noting that the default cloud-init configuration file in our images has the growpart and resizefs modules enabled which will resize your root partition back to its max drive size if you only shrink the partition but not create additional ones. If you would like to avoid this behavior, you can edit the cloud-init configuration file found at /etc/cloud/cloud.cfg to remove the -growpart and -resizefs modules. Once you save the file, cloud-init should not attempt to resize the partition every time the OS boots.

Additional Packages for Alpine Linux

The Alpine Linux image used for Rescue Mode might be missing packages required for special operations. For example, to run fsck you need to install the e2fsprogs package.

apk add e2fsprogs

After successful installation, you can run fsck on sda1 for example.

fsck.ext4 -f -y /dev/sda1

You might need other packages, like zfs if you are formatting a partition with a filesystem other than ext4. You can find all the available packages to install in the Alpine Linux package directory.

Returning to Your Original Operating System

To get back to the original OS, we can simply reboot the server.

From Alpine Linux:

To reboot Alpine Linux, use the reboot command.

reboot

From the console:

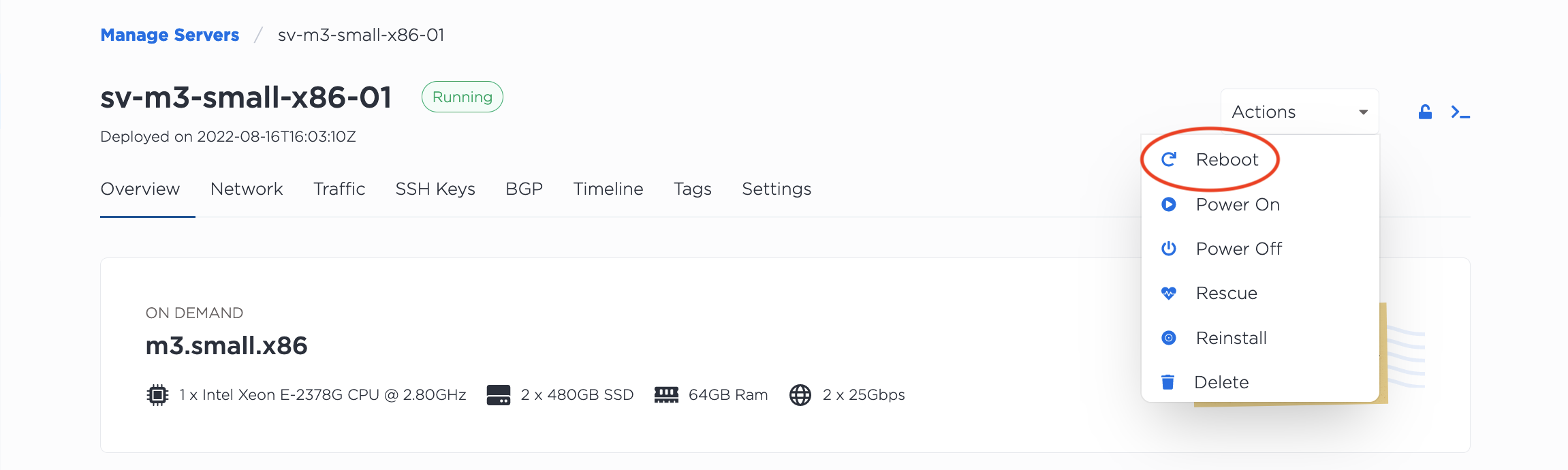

To reboot your server from its Overview page, click on Server Actions, and select Reboot from the dropdown.

Once the server has finished rebooting from either process, it will boot back into your original operating system.
