Reserved Public IPv4 Addresses

Equinix Metal™ supports ordering additional public IPv4 subnets so you can allocate more public IPv4 addresses per server or easily move public IPv4 addresses between servers. These subnets are provisioned and available at the Project-level so they can be unassigned and reallocated other servers in the Project.

Public IPv4 addresses are also provisioned in a specific Metro, and can be used with any server in the same metro.

You can order subnet sizes from /31 to /24.

Public IPv4 Subnet Size	Usable Addresses
/31	2 IPv4 addresses
/30	4 IPv4 addresses
/29	8 IPv4 addresses
/28	16 IPv4 addresses
/27	32 IPv4 Addresses
/26	64 IPv4 Addresses
/25	128 IPv4 Addresses
/24	256 IPv4 Addresses

Reserved Public IPv4 addresses are billed on a usage basis at a fixed rate per IP per hour. Bandwidth is billed at the standard outbound rate. Rates are available in the Equinix Metal console.

Note: there is a default limit of 256 public IPv4 addresses total in a Project. If you have questions or anticipate needing more IP space, please contact support.

Requesting Public IPv4 Addresses

Console

From your Project's Networking section, open the IPs page. Your project's current IP Addresses should be listed. To request additional IP Addresses, click + Add New.

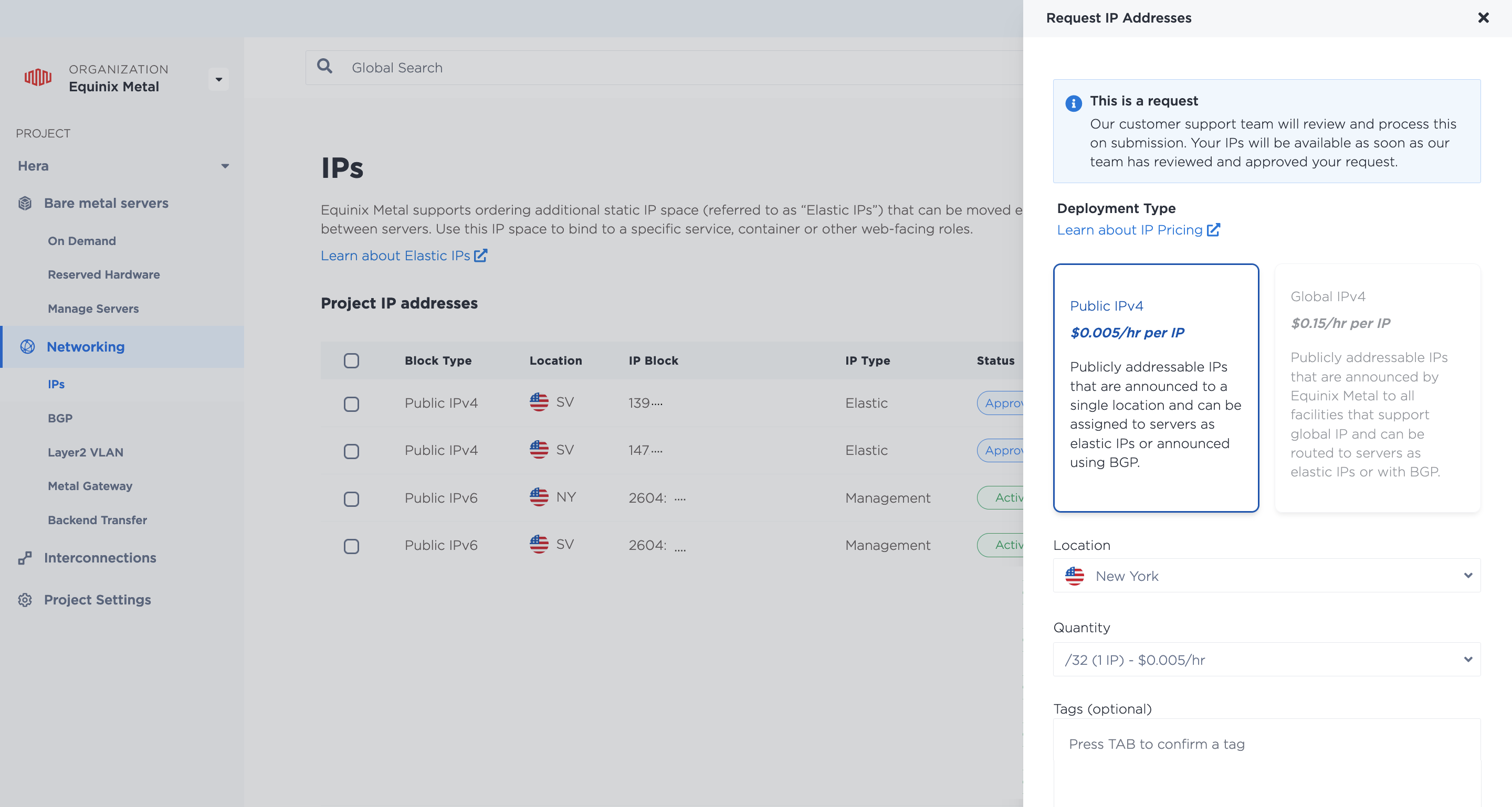

From the Request IP Addresses slide out, select the Location, and the Quantity (size) of the reserved subnet. There are also fields for Tags and a Description for your use. The Custom JSON field is for custom data that you want to be included in your server's metadata.

Use the Comments field for contacting support with any information that is relevant to your request. Particularly if you are planning to request multiple subnets, or multiple large subnets, as there are quotas in place at the project-level. Support may reach out with questions about your request.

CLI

To request public IPv4 addresses, use the metal ip request command and specify the --type as public_ipv4.

metal ip request --project-id <project_id> --type public_ipv4 --quantity <int>

There is an optional --comments flag for contacting support with any information that is relevant to your request. Particularly if you are planning to request multiple subnets, or multiple large subnets, as there are quotas in place at the project-level. Support may reach out with questions about your request.

API

To request additional IP addresses in the API, send a POST request to the /projects/{id}/ips endpoint.

curl -X POST \
-H 'Content-Type: application/json' \
-H "X-Auth-Token: <API_TOKEN>" \
"https://api.equinix.com/metal/v1/projects/{id}/ips" \
-d '{
    "type": "public_ipv4",
    "quantity": 4,
    "metro": "sv",
    "fail_on_approval_required": "false"
}'

Body Parameters

• "type" (required) - Your options are "public_ipv4" or "global_ipv4".
• "quantity" (required) - The quantity parameter should be the number of IPs in the subnet. Valid values are 2, 4, 8, and 16 for Public IPv4 addresses and 1, 2, and 4 for Global Anycast IP addresses.
• "metro" - The metro is required when requesting a public IPv4 address and specifies where the IP addresses will be allocated. If you are requesting a Global Anycast IP address, the metro is not required.
• "fail_on_approval_required" (optional) - If you submit a request that exceeds the maximum number of IP addresses available to your project, you can automatically have the request fail with HTTP status 422 instead of triggering the review process by providing the fail_on_approval_required parameter set to true in the request.

A full listing of body parameter fields and options is available in the API reference.

Provisioning with a Reserved Public IPv4 Subnet

If you are provisioning new servers in projects and metros that already have public IPv4 reserved subnets, then you can use IP Addresses from those subnets on the new servers.

Console

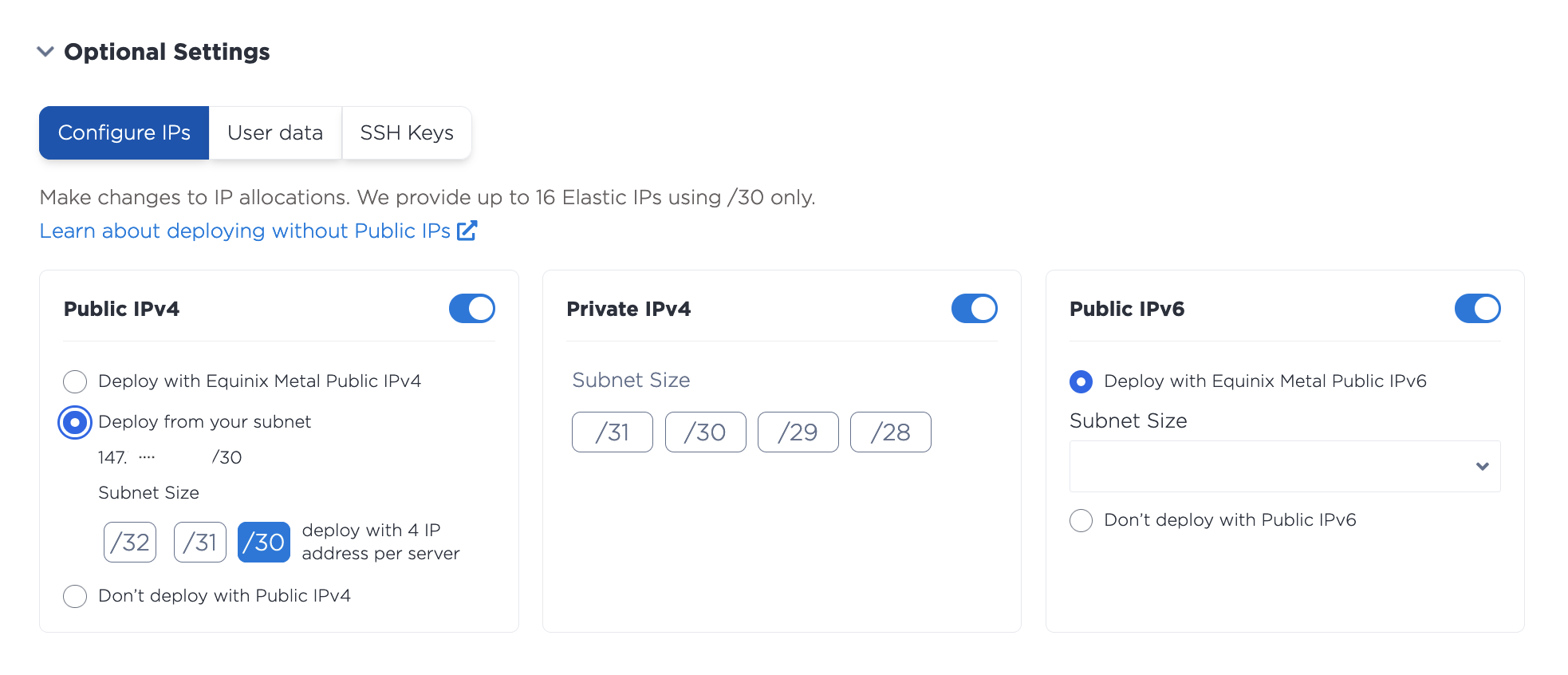

During the provisioning process, under Optional Settings, click Configure IPs. Choose Deploy from your subnet and select the subnet and number of IP Addresses to assign to the server.

API

If you are using the API to provision your server, include the "ip_address" object in the body of your POST request to the projects/{id}/devices endpoint.

curl -X POST \
-H "Content-Type: application/json" \
-H "X-Auth-Token: <API_TOKEN>" \
"https://api.equinix.com/metal/v1/projects/{id}/devices" \
-d '{
    "plan": "c3.small.x86",
    "operating_system": "ubuntu_20_10",
    "metro": "sv",
    "hostname": "reserved_ip_testing",
    "ip_addresses": [
        {
            "type": "public_ipv4",
            "address_family": 4,
            "public": true,
            "cidr": <subnet_size>,
            "ip_reservations": ["<ip_reservation_uuid>"]
        },
        {
            "type": "private_ipv4",
            "address_family": 4,
            "public": false
        },
        {
            "type": "public_ipv6",
            "address_family: 6,
            "public": true
        }
    ]
}'

Body Parameters

• "metro" (required) - Location of the server and the IP reservation.
• "plan" (required) - Server hardware plan slug.
• "operating_system" (required) - The server's operating system slug.
• "ip_addresses" (optional) - The object that specifies the IP address configuration of your server. To provision with your reserved subnet, modify the "type": "public_ipv4" data to include the subnet size and the UUID of the reserved subnet.

A full listing of body parameter fields and options when provisioning a server is available in the API reference.

Remember that Operating Systems have a minimum subnet size requirement.

• Linux Distributions - /31
• Windows Server - /30
• VMware ESXi - /29

Adding Public IPv4 Addresses to a Server

If you want to add your new Public IPv4 addresses or subnets to an existing server, you have two options: to assign your new IP Addresses to a server statically, as Elastic IPs, or by announcing them with BGP.

If you choose to bind your IPs statically as an Elastic IP, you can bind individual addresses and whole subnets to a single device.

If you choose to announce your IPs or subnets with BGP, you will need to set up and configure Local BGP.

Deleting an IPv4 Reservation

Deleting a reservation removes the subnet from your project. You will no longer be able to use the IP addresses for your servers.

Console

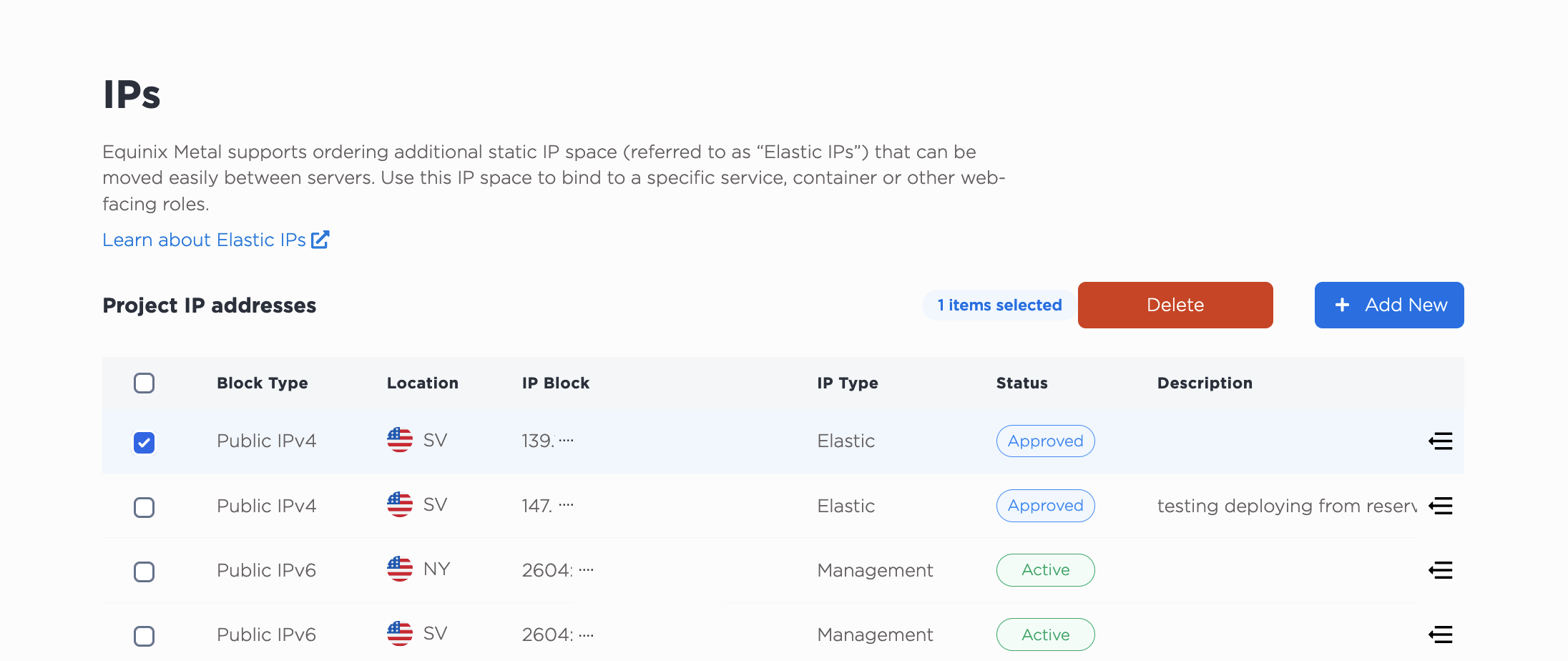

To delete a reservation from your Project, open the IPs page, select the IP reservation you would like to delete, and click Delete.

CLI

To remove a public IPv4 address reservation, use the metal ip remove command.

metal ip remove --id <reservation-id>

API

To delete an IP reservation through the API, send a DELETE request to the /ips/{id} endpoint. The id is the UUID of the reservation.

curl -X DELETE -H "Content-Type: application/json" \
    -H "X-Auth-Token: <API_TOKEN>" \
    "https://api.equinix.com/metal/v1/ips/{id}"
