Setting a Native VLAN

The Equinix Metal™ native VLAN feature enables support for untagged packets when multiple VLANs are configured on the server port.

When multiple VLANs are configured on the server port, the native VLAN feature allows assigning one of the VLANs as native VLAN, so the packets destined for the native VLAN will always go out as untagged packets. Similarly, when the server port receives packets that are untagged, it will automatically be construed as belonging to native VLAN.

Support for Different Networking Modes

• Layer 2 Bonded mode - In Layer 2 Bonded mode, VLANs are assigned to the bond0 interface. If you have more than one VLAN assigned to bond0, then one of those VLANs can be set as the native VLAN.

• Hybrid Unbonded mode - In Hybrid Unbonded mode, VLANs can be assigned to the eth1 interface or the bond0 interface, but only eth0 supports assigning a native VLAN.

• Layer 2 Unbonded Mode - In the Layer-2 Unbonded mode, VLANs can be assigned to either of the interfaces, and each can have one of the VLANs set as the native VLAN.

Native VLAN assignment is not supported in Hybrid Bonded mode.

Note: Assigning a native VLAN is not supported on the 4-port NIC servers. Support for this feature on 4-port NIC servers such as n2.xlarge.x86 is planned.

Setting a Native VLAN

Console

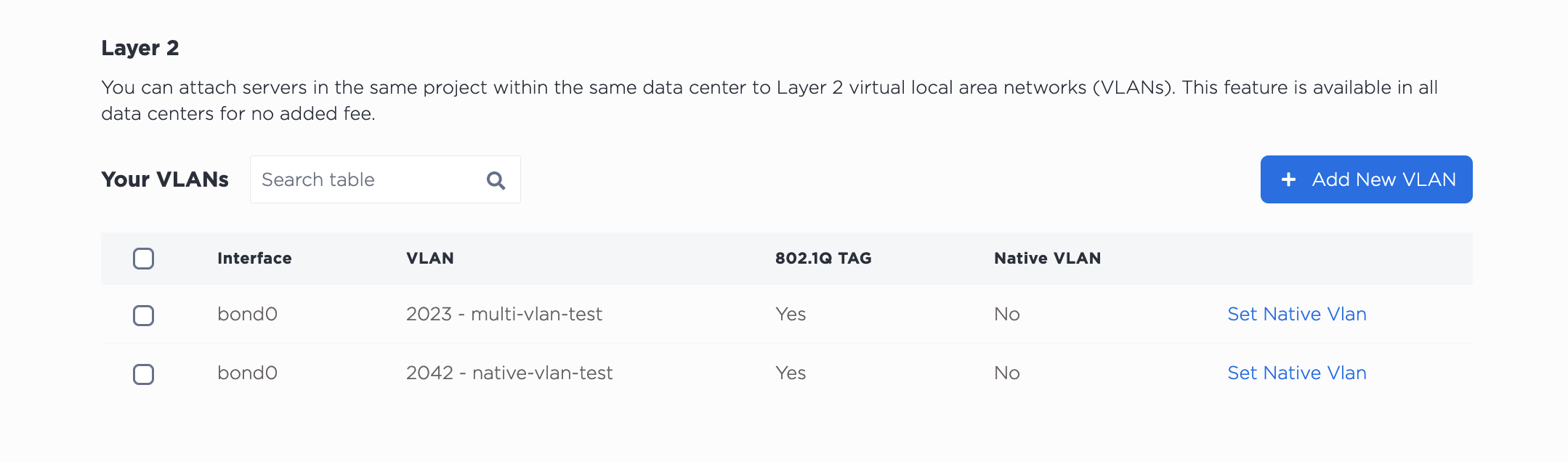

VLANs can be managed from the server's Network tab, in the Layer 2 section. If you have this server attached to multiple VLANs, they will be listed here. You will then see the option Set Native VLAN.

CLI

Set a native VLAN with the metal port vlan command. Specify the port ID that the VLAN is attached to with --port-id and the VLAN to --native=.

metal port vlans --port-id <port_uuid> --native=<vlan>

API

To assign a native VLAN, send a POST request to the /ports/{id}/native-vlan endpoint. You have to specify the port ID the VLAN is attached to in the path, and it needs to be the UUID for that port as returned by the /devices/{id} endpoint. The ID of the VLAN is sent in the body of the request, and it can be either the VLAN's UUID as returned by the /projects/{id}/virtual-networks endpoint or the vxlan ID that is in the console.

curl -X POST \
-H "Content-Type: application/json" \
-H "X-Auth-Token: <API_TOKEN> " \
"https://api.equinix.com/metal/v1/ports/{id}/native-vlan" \
-d '{
    "vnid": "c4032b18-5494-451b-a779-a7d3c536bfd7"
    }'

Unsetting a Native VLAN

Console

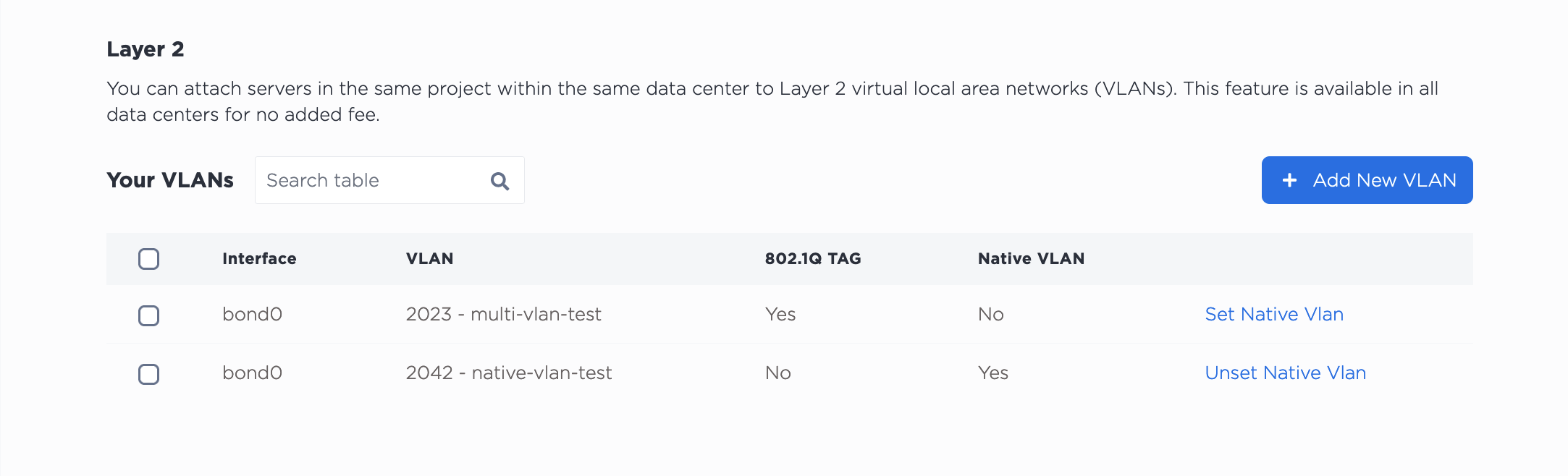

Similarly to setting a native VLAN, you can unset one from the console from the server's Network tab, in the Layer 2 section. You will then see the option to Unset Native VLAN.

CLI

If you want to unset a native VLAN in the CLI, use the metal port vlan command and omit the --native= flag.

metal port vlan --port-id <port_id> --assign <vlan>

API

In the API, a DELETE request to the /ports/{id}/native-vlan endpoint will unset the native VLAN.

curl -X DELETE -H 'X-Auth-Token: <API_TOKEN>' https://api.equinix.com/metal/v1/ports/{id}/native-vlan
