Layer 2 Only Unbonded Mode

Equinix Metal™ allows users to change the networking mode of a server from the default Layer 3 Bonded mode to modes that only use Layer 2 networking over VLANs. This means all access to the public Internet is lost, and the host can only be reached by the Serial Over SSH (SOS) console or from other servers attached to the same VLAN.

This option will destroy the LACP bond and allow you to place each interface into individual Layer 2 networks. This does introduce a single point of failure on the upstream switch or the network interface. An outage, maintenance, or reboot of one of the ports will cause network interruptions.

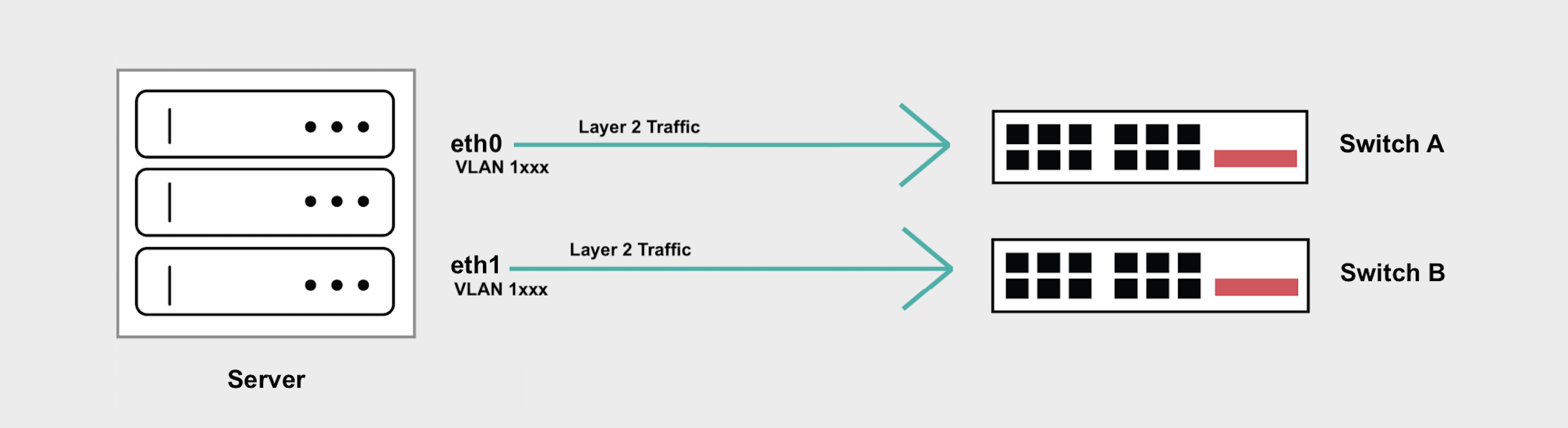

Layer 2 Unbonded Diagram

If you have high-availability concerns, Layer 2 Bonded Mode supports a Layer 2 only configuration while maintaining the bonded networking interface that spans 2 diverse upstream switches.

General Overview​

  • Layer 2 Unbonded mode breaks the bond, allowing you to configure the two interfaces separately, but does expose a single point of failure to your networking if one of the ports or switches fails.
  • You can then add VLANs to eth1 and eth0 for your Layer 2 traffic. If you are only adding one VLAN per interface to eth1 or eth0, traffic can not be tagged.
  • If you are adding more than one VLAN to eth1 or eth0, you will need to create subinterfaces to handle tagged traffic for each VLAN and/or you have to set a Native VLAN to handle untagged traffic.

Converting to Layer 2 Unbonded Mode​

In the Equinix Metal console, navigate to the server's Network page, click Convert To Other Network Type and choose Layer 2. Select the Unbonded mode. Click Convert to Layer 2 to start the conversion.

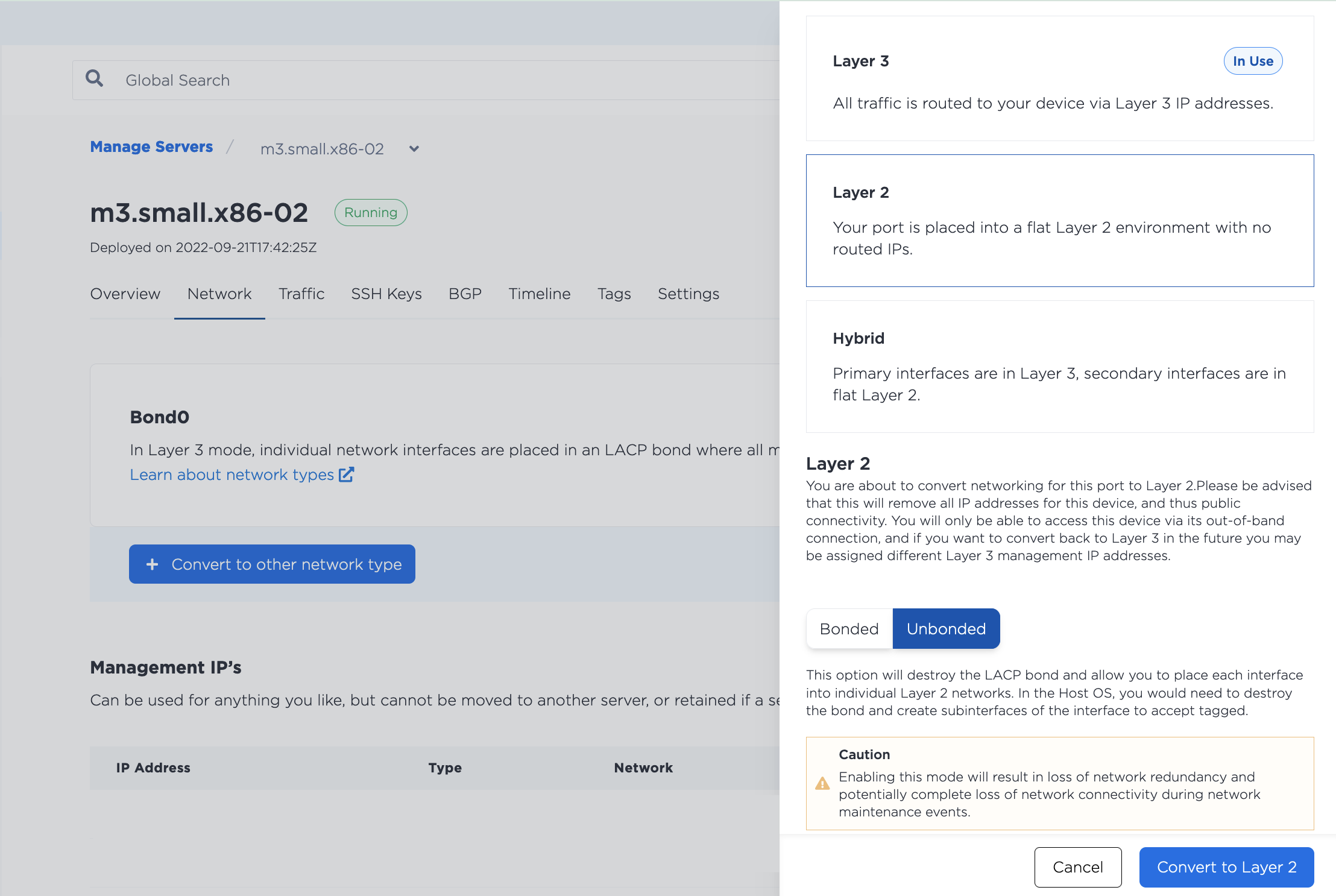

Converting to Layer 2 Unbonded mode panel

When it is finished, you will be back on the server's Network page.

To assign a VLAN to one of the ports, click Add New VLAN, and select either the eth0 or eth1 interface. Click Add to start the changes.

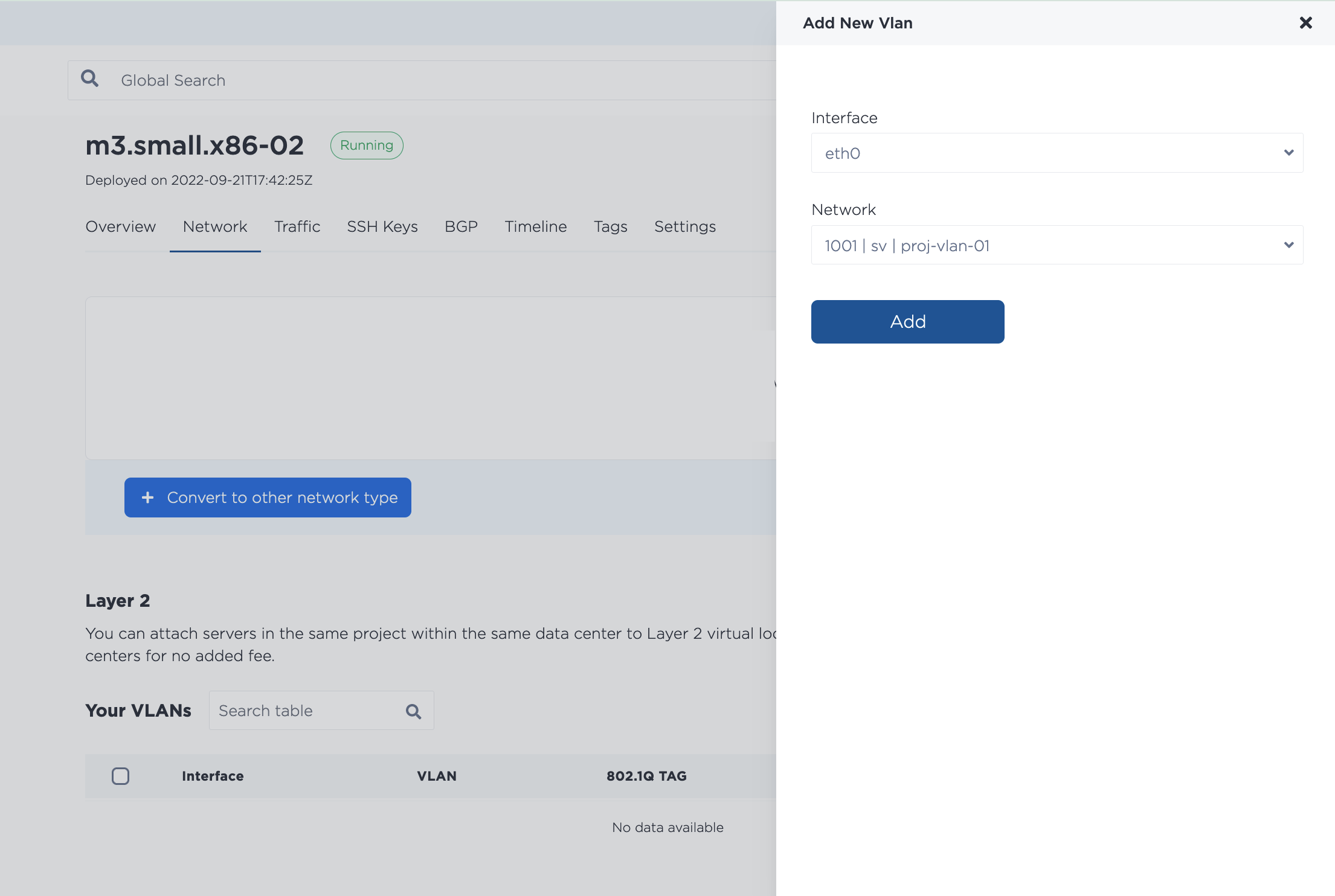

Adding a VLAN to eth0

Attaching Multiple VLANs - Unbonded​

Adding multiple VLANs to the bonded interface is supported. This does affect the server configuration as you will have to make sure there is a subinterface that will receive packets destined for each VLAN and/or you set a Native VLAN to handle untagged traffic.

To assign multiple VLANs to a port, navigate to the server's Network page. In the Layer 2 section, click Add New VLAN, which will allow you to assign more VLANs to eth0 or eth1.

Click Add to start the changes. Note that if you assign multiple VLANs at once, they are added through an asynchronous batch process, which begins immediately, but may take some time to complete.

Configuring Your Servers for Layer 2 Unbonded​

Once you have converted the server to Layer 2 Unbonded mode and assigned the VLAN to an interface, you will need to configure the networking on the server's operating system and assign it an IP address on the VLAN.

Note - Since all Equinix Metal assigned IP addresses were removed when you converted this server to Layer 2, you are free to configure and use whatever subnets you need, but you may have to remove any existing configuration in the server's operating system to prevent conflicts.

There are two example configurations, the first example is a configuration for assigning a single VLAN, and the second example is for assigning multiple VLANs.

Remember you will need to use the SOS/OOB Console to SSH into your server.

For a Single VLAN per Interface​

If you have only one VLAN, do not tag the traffic, and assign the VLAN IP Address directly to the interface. This example uses eth1, but the procedure is the same for eth0 or eth1.

Note - in our recent Ubuntu images, the interfaces are no longer aliased to eth1 and eth0, eth1 is enp1s0f1 and eth0 is enp1s0f0.

  1. Install and configure the prerequisites for VLANs.

    apt-get install vlan
    modprobe 8021q
    echo "8021q" >> /etc/modules

  2. Make sure eth1 and eth0 have been removed from bond0.

    ip -d link show enp1s0f1
    ip -d link show enp1s0f0

    If they haven't been removed, remove it.

    ip link set enp1s0f1 nomaster
    ip link set enp1s0f0 nomaster

  3. Configure enp1s0f1 with an IP address for the VLAN. The example uses IP address 192.168.1.2/29.

    ip addr add 192.168.1.2/29 dev enp1s0f1

    To make the networking configuration permanent and survive server reboots, edit enp1s0f1 in the /etc/network/interfaces file.

    auto enp1s0f1
    iface enp1s0f1 inet manual
        address 192.168.1.2
        netmask 255.255.255.248
        pre-up sleep 4

  4. Bring up the interface, and check that it is back up.

    ip link set dev enp1s0f1 up
    ip -d link show enp1s0f1

For Multiple VLANs on an Interface​

If you are using multiple VLANs on eth1 or eth0, IP packets will have the to be tagged, and you will need to setup subinterfaces that will receive packets destined for each VLAN.

This example uses eth1, but the procedure is the same for eth0 or eth1.

Note: If you need support for untagged packets, set the VLAN that handles the untagged packets as the Native VLAN.

Note - in our recent Ubuntu images, the interfaces are no longer aliased to eth1 and eth0, eth1 is enp1s0f1 and eth0 is enp1s0f0.

  1. Install and configure the prerequisites for VLANs.

    apt-get install vlan
    modprobe 8021q
    echo "8021q" >> /etc/modules

  2. Make sure eth1 and eth0 have been removed from bond0.

    ip -d link show enp1s0f1
    ip -d link show enp1s0f0

    If they haven't been removed, remove it.

    ip link set enp1s0f1 nomaster
    ip link set enp1s0f0 nomaster

  3. Add new subinterfaces on enp1s0f1 to handle tagged traffic, one for each VLAN, and assign them IP addresses. Use your VLAN IDs from the Equinix Metal VLAN as in the VLAN_ID fields. The example uses VLAN IDs 1000 and 1001 and IP addresses 192.168.1.2/29 and 192.168.100.2/29.

    ip link add link enp1s0f1 name enp1s0f1.1000 type vlan id 1000
    ip addr add 192.168.1.2/29 dev enp1s0f1.1000
    ip link add link enp1s0f1 name enp1s0f1.1001 type vlan id 1001
    ip addr add 192.168.100.2/29 dev enp1s0f1.1001

    To make the networking configuration permanent and survive server reboots, add the new subinterfaces to the /etc/network/interfaces file.

    auto enp1s0f1.1000
    iface enp1s0f1.1000 inet static
        address 192.168.1.2
        netmask 255.255.255.248
        vlan-raw-device enp1s0f1

    auto enp1s0f1.1001
    iface enp1s0f1.1001 inet static
        address 192.168.100.2
        netmask 255.255.255.248
        vlan-raw-device enp1s0f1

  4. Bring up the interfaces, and check that they came up.

    ip link set dev enp1s0f1.1000 up
    ip -d link show enp1s0f1.1000

    ip link set dev enp1s0f1.1001 up
    ip -d link show enp1s0f1.1001

You will need to run through the same steps on all the servers that you want to attach to the VLANs, assigning different IP addresses to each.

Converting Back to Layer 3​

If you are in one of the Layer 2 modes and want to go back to Layer 3, you must first remove any attached VLANs.

To detach a VLAN in the console, navigate to the server's Network page. In the Layer 2 section, click Remove next to the VLAN you are detaching from the server. Confirm that you wish to remove it by clicking Yes.

Removing a VLAN

Detaching the VLAN from this server does NOT delete it from your project. The VLAN will continue to exist after detaching it from the server.

Then, to convert back to Layer 3, click Convert To Other Network Type, select Layer 3. Click Convert to Layer 3 to start the process.

Converting from Layer 2 to Layer 3

Note - Being in Layer Bonded Mode removed the server's public IP addresses. If the server is later converted back to Layer 3, new public IP addresses are assigned and the server is accessible to the public Internet
