コロケーションデータをAPIからストリーム配信

Streaming APIは、お客様のデータをAPIから取得するためのサブスクリプションの作成をサポートしています。

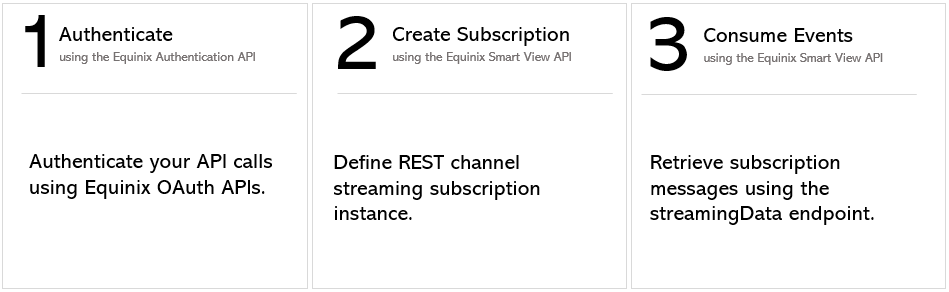

前提条件

• OAuth2認証のためのユーザー認証情報、クライアントID、クライアントシークレットを送信します。Equinix APIへのリクエストを認証する方法については、「API認証」(../../equinix-api/api-authentication.md)を参照してください。

• [サブスクリプションの作成Smartview/v2/streaming/subscriptions](/api-catalog/smartviewv2/#operation/createSubscription) エンドポイントに POST リクエストを送信し、channelTypeにRESTを指定します。レスポンスのLocation` ヘッダには、リアルタイムフィードを利用するために必要な購読 ID が含まれます。詳細はCreating a Subscriptionを参照してください。

データの取得

REST ストリーミングチャネルのメッセージを取得するには、smartview/v2/streaming/subscriptionData/{subscriptionId} エンドポイントに GET リクエストを送信します。

サンプルcURLリクエスト：

curl -X
GET 'https://api.equinix.com/smartview/v2/streaming/subscriptionData/0f6bdb36-e130-4924-b038-ee1785fad999'

回答例

{
    "alarmMessageData": [],
    "alertMessageData": [],
    "environmentMessageData": [],
    "meteredPowerMessageData": [],
    "powerMessageData": [
        {
            "type": "power",
            "data": {
                "streamId": "20409808",
                "ibx": "LD9",
                "asset": {
                    "id": "20409808",
                    "type": "CIRCUIT"
                },
                "cage": "LD9:0G:0Z10BB",
                "cabinet": "LD9:0G:0Z10BB:0109",
                "accountNumber": "116710",
                "description": "32-amp 230v Single Phase Primary AC Power",
                "oid": "1.3.6.1.2.1.299.36.10.4442",
                "realPower": {
                    "value": "0.000",
                    "unit": "kW"
                },
                "apparentPower": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "current": {
                    "value": "0.000",
                    "unit": "A"
                },
                "powerFactor": {
                    "value": "0.000",
                    "unit": "pf"
                },
                "soldCurrent": {
                    "value": "32.000",
                    "unit": "A"
                },
                "soldPower": {
                    "value": "7.360",
                    "unit": "kVA"
                },
                "powerConsumptionToContractual": {
                    "value": "0.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDays": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "peakLastSevenDaysRatio": {
                    "value": "0.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDaysContractualPower": {
                    "value": "7.360",
                    "unit": "kVA"
                },
                "peakLastSevenDaysTime": "2023-12-06T05:45:00",
                "lastUpdated": "2023-12-07T15:49:00",
                "readingTime": "2023-12-07T15:45:00"
            }
        },
        {
            "type": "power",
            "data": {
                "streamId": "20409809",
                "ibx": "LD9",
                "asset": {
                    "id": "20409809",
                    "type": "CIRCUIT"
                },
                "cage": "LD9:0G:0Z10BB",
                "cabinet": "LD9:0G:0Z10BB:0109",
                "accountNumber": "116710",
                "description": "32-amp 230v Single Phase Redundant AC Power",
                "oid": "1.3.6.1.2.1.299.36.10.4443",
                "realPower": {
                    "value": "0.000",
                    "unit": "kW"
                },
                "apparentPower": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "current": {
                    "value": "0.000",
                    "unit": "A"
                },
                "powerFactor": {
                    "value": "0.000",
                    "unit": "pf"
                },
                "soldCurrent": {
                    "value": "32.000",
                    "unit": "A"
                },
                "soldPower": {
                    "value": "7.360",
                    "unit": "kVA"
                },
                "powerConsumptionToContractual": {
                    "value": "0.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDays": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "peakLastSevenDaysRatio": {
                    "value": "-1.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDaysContractualPower": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "peakLastSevenDaysTime": "2023-12-06T22:15:00",
                "lastUpdated": "2023-12-07T15:49:00",
                "readingTime": "2023-12-07T15:45:00"
            }
        }
    ],
    "tagPointMessageData": [],
    "pagination": {
        "offset": 0,
        "limit": 250,
        "total": 46,
        "next": null,
        "previous": "?offset=0&limit=250"
    }
}
