機器の設置を依頼する

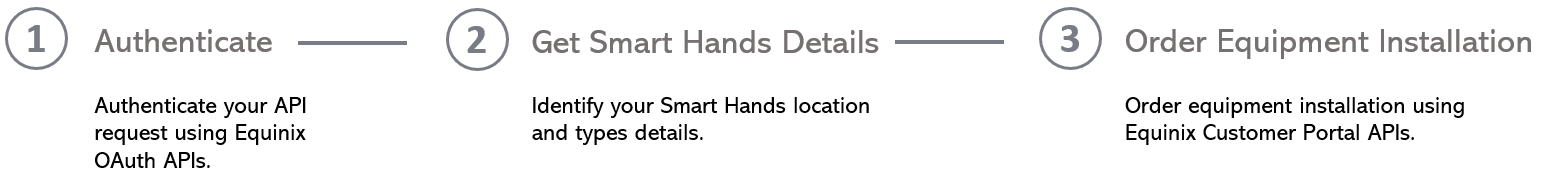

前提条件​

  1. Smart Handsの詳細を取得するには、権限が必要です。Smart Hands

  2. 認証-ユーザー認証情報、クライアントID、クライアントシークレットを送信してOauth2認証を行います。認証情報を検証および認証するためにOAuth APIを呼び出す方法については、「API認証」を参照してください。

  3. Get Smart Hands Types -エンドポイントにリクエストを/v1/orders/smarthands/types送信して、GETすべてのSmart Handsオーダータイプを取得します。Smart Handsのオーダータイプがすでにわかっている場合は、この手順をスキップできます。

  4. ロケーション情報の取得-エンドポイントにリクエストを/v1/orders/smarthands/locations送信して、GETアクセス可能なIBXロケーションを取得します。ロケーション情報がすでにわかっている場合は、この手順をスキップしても構いません。

設備導入の発注 - 最小限の例​

Equinix IBX技術者による機器の設置を発注するには、エンドポイントにリクエストを/v1/orders/smarthands/equipmentInstall送信してください。POSTリクエストの本文でインストール要件を指定してください。

サンプルcURLリクエスト:

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/equipmentInstall"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "deviceLocation": "DHL tracking no. 1039 5739 92",
    "elevationDrawingAttached": false,
    "installationPoint": "Front and center.",
    "patchDevices": true,
    "patchingInfo": "When patching use the next available port, but maintain a symmetrical appearance.",
    "powerItOn": true,
    "mountHardwareIncluded": true,
    "installedEquipmentPhotoRequired": true,
    "scopeOfWork": "When installing make sure wires are all labeled."
  },
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "contacts": [
    {
        "contactType": "ORDERING",
        "userName": "johndoe"
    },
    {
        "contactType": "TECHNICAL",
        "userName": "johndoe",
        "workPhonePrefToCall": "ANYTIME"
    },
    {
        "contactType": "NOTIFICATION",
        "userName": "johndoe"
    }
  ]
}'

回答例

{
"OrderNumber": "1-190986534844"
}

応答は注文が成功したことを示し、注文番号を返します。

機器設置のご注文 - 拡張例​

Equinix IBX技術者による機器の設置を発注するには、エンドポイントにリクエストを/v1/orders/smarthands/equipmentInstall送信してください。POSTリクエストの本文でインストール要件を指定してください。オブジェクトを使用して、attachments技術者の追加詳細を含めることができます。

メモ

アタッチメント付きのオーダーを作成する前に、エンドポイントに電話してください。Attachments File

curl -X
POST "https://api.equinix.com/v1/orders/smarthands/equipmentInstall"
-H "content-type: application/json"
-H "authorization: Bearer <token>"
-d '{
    "ibxLocation": {
    "ibx": "AM1",
    "cages": [
      {
        "cage": "AM1:0J:00JD11",
        "cabinets": [
            "AM1:0J:00JD11:0001"
        ],
        "accountNumber": "126854"
      }
    ]
  },
  "serviceDetails": {
    "deviceLocation": "DHL tracking no. 1039 5739 92",
    "elevationDrawingAttached": true,
    "installationPoint": "Front and center.",
    "patchDevices": true,
    "patchingInfo": "When patching use the next available port, but maintain a symmetrical appearance.",
    "powerItOn": true,
    "mountHardwareIncluded": true,
    "installedEquipmentPhotoRequired": true,
    "scopeOfWork": "When installing make sure wires are all labeled.",
    "needSupportFromASubmarineCableStationEngineer": true
  },
  "attachments": [
    {
        "id": "fcb4a673-6308-456e-8f83-f745501d60ba",
        "name": "Elevation drawing.docx"
    }
  ],
  "schedule": {
    "scheduleType": "SCHEDULED_MAINTENANCE",
    "requestedStartDate": "2019-08-30T22:00:49.776Z",
    "requestedCompletionDate": "2019-08-31T22:00:49.776Z"
  },
  "customerReferenceNumber": "EQX-PO2019-08-001",
  "purchaseOrder": {
    "purchaseOrderType": "EXEMPTED",
    "attachment": {
        "id": "abc1fd2e-345f-67g4-hi89-01jk234l5m6n",
        "name": "PurchaseOrderExemptionForm123.docx"
    }
  },
  "contacts": [
    {
        "contactType": "ORDERING",
        "userName": "johndoe"
    },
    {
        "contactType": "TECHNICAL",
        "name": "Jane Smith",
        "email": "janesmith@corporation.com",
        "workPhoneCountryCode": "+44",
        "workPhone": "0148211111",
        "workPhonePrefToCall": "MY_BUSINESS_HOURS",
        "workPhoneTimeZone": "Europe/London",
        "mobilePhoneCountryCode": "+44",
        "mobilePhone": "0123456789",
        "mobilePhonePrefToCall": "MY_BUSINESS_HOURS",
        "mobilePhoneTimeZone": "Europe/London"
    },
    {
        "contactType": "NOTIFICATION",
        "userName": "johndoe"
    },
    {
        "contactType": "NOTIFICATION",
        "userName": "janesmith"
    }
  ]
}'

本文のパラメータと説明の完全なリストについては、APIリファレンスを参照してください。
