OIDC Providers

When you create an OIDC provider, you specify the resources that Equinix uses to establish trust relationships with your provider.

An OIDC provider consists of:

• Name - A human-friendly name for the provider.

• Issuer Location - The OIDC issuer location URL. This URL is used to obtain OpenID Provider configuration, which includes the URL of the JWKS where its public keys may be obtained.

• IDP Prefix - Used to create a unique IDP ID for the OIDC provider. The IDP Prefix cannot be the same as any existing, suspended or non-suspended, OIDC provider records for this project.

• Trusted Client IDs - Specify the OAuth 2.0 clients that are able to exchange identity tokens for Equinix API access tokens. The value of the audience (aud) claim in an OIDC ID token is checked against the list of Trusted Client IDs during token exchange.

• Group Membership Claim - (optional) Name of the claim in the ID tokens provided by this OIDC issuer containing a principal's group memberships, for authorization purposes. The value of the group membership claim in an ID token must be an array of strings, where each string is a unique, non-reassignable identifier for a group. When this property is not set, no claim from this provider is treated as a group membership claim.

Create an OIDC Provider

Use the Customer Portal or the Equinix API to create an OIDC provider in Equinix. You must be a Company Administrator.

Portal

1. Sign in to the Customer Portal --> Identity and Access Management.

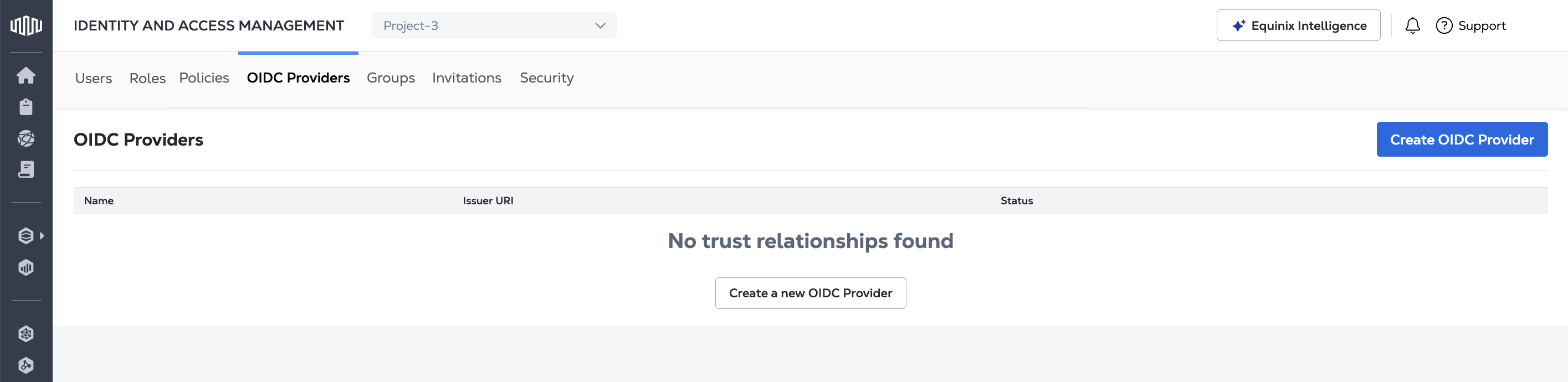

2. Open the OIDC Providers tab.

3. Click Create OIDC Provider.

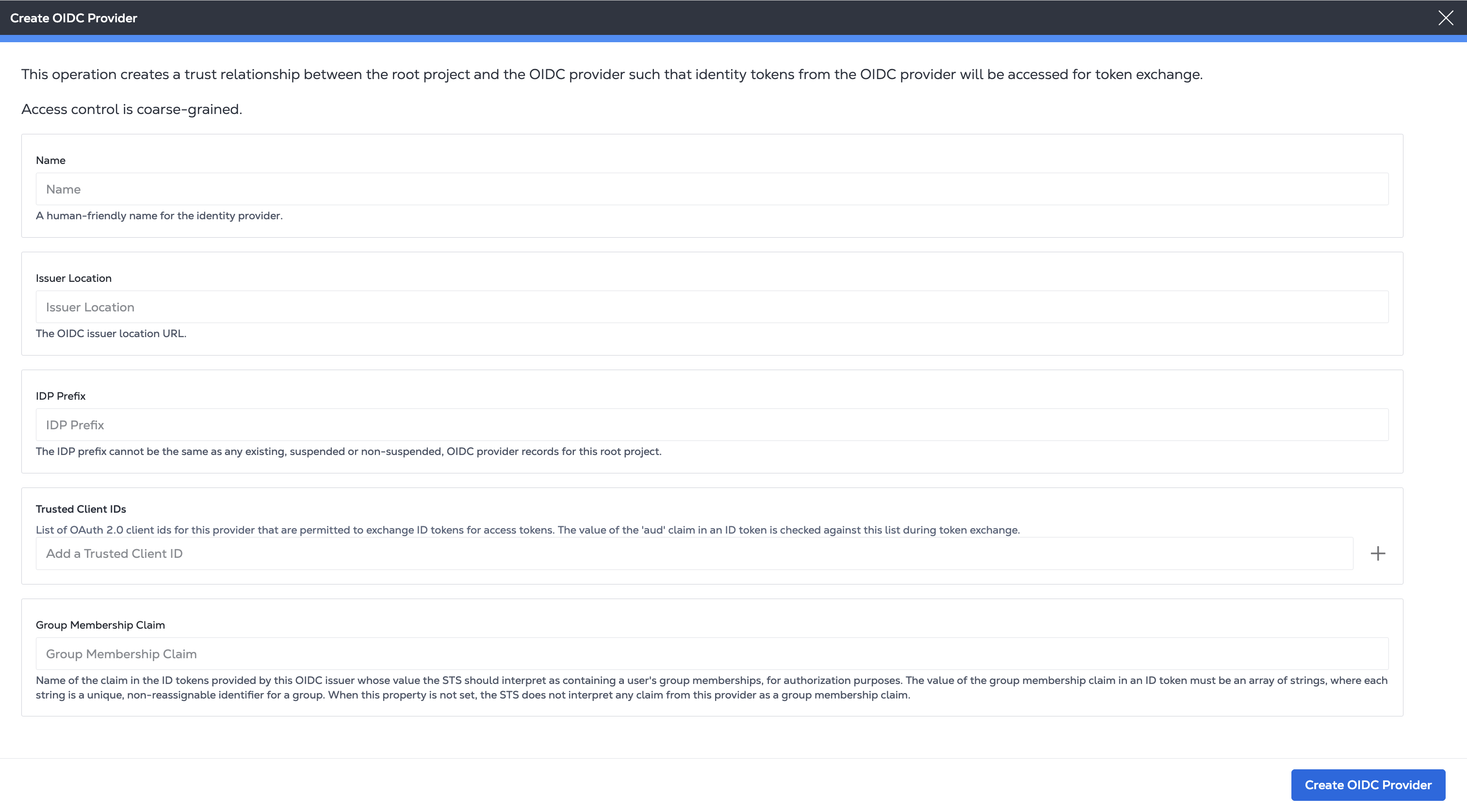

4. On the Create OIDC Provider page, provide:

   • a name for the provider
   • your OIDC Issuer Location URL
   • IDP Prefix to create a unique identifier for the identity provider.
   • the Trusted Client IDs that are permitted to exchange identity tokens. Enter an ID in the field and click +.
   • a Group Membership Claim (optional).



5. Click Create OIDC Provider.

API

To register an OIDC provider, send a POST request to the /v1/projects/{projectId}/oidcProviders endpoint. Specify the project in the path of the request.

Specify a friendly, human-readable name along with your OIDC issuer and authentication details for issuerLocation, idpPrefix, trustedClientIds, and optional groupMembershipClaim in the body of the request.

Sample cURL Request:

curl -X POST 'https://sts.eqix.equinix.com/v1/projects/{projectId}/oidcProviders' \
-H 'content-type: application/json' \
-H 'authorization: Bearer <token>' \
-d '{
    "name": "<string>",
    "trustedClientIds": [
        "<string>"
    ],
    "groupMembershipClaim": "<string>",
    "issuerLocation": "<oidc_url>",
    "idpPrefix": "<string>"
}'

Using Your OIDC Provider

Once you have registered an OIDC provider, grant and manage access to your Equinix infrastructure using Access Policies or Roles.

Then, use the /v1/token endpoint to request bearer tokens for use when calling the Equinix API. For more information, see OIDC API Authentication.
