Port Traffic and Tagging

A Fabric port is the primary access method into Equinix Fabric, and it is important to get your port order correct. All ports are initially set up as either VLAN-based EVPL (802.1Q or 802.1ad) or port-based EPL (untagged). You can order Fabric ports with either encapsulation option to obtain point-to-multipoint capabilities over Equinix Fabric. EVPL (Dot1q or QinQ) ports can create multiple VCs from a Fabric port, segmenting traffic based on the VLAN assigned to the VC. EPL ports can only create one VC between the two ports to pass traffic, including any VLANs, transparently without traffic segmentation.

You choose the following when ordering Ports:

ParameterPossible ValuesNotes
Speed1G SX MMF 1G LX SMF 10G LR SMF 100G LR4 SMF1G MMF might be limited in some regions and is generally not recommended by Equinix.
Port FormatEthernet
Encapsulation802.1Q (TPID: 0x8100); 802.1ad (TPID: 0x8100, 0x88a8, 0x9100, 0x9200); Untagged (EPL)In case of the frame type 802.1ad (QinQ), the TPID value of 0x8100, 0x88a8, 0x9100, 0x9200 in the DP/CRD applies to the outer tag while the inner tag uses 0x8100.
MTU9100 bytesPorts on Equinix Fabric are set to a default MTU size of 9100 bytes.
LAGLAG Group name (with which ports) LAG quantity (min 1; max 8)If ports should be configured as members of 802.3ad Link Aggregation Group (LAG) members, Equinix Fabric uses the LACP protocol. Equinix Fabric does not support MC-LAG.

Ethernet Virtual Private Line (EVPL) Ports​

Equinix Fabric achieves multiple interconnections on the same physical port using VLAN-based 802.1Q (Dot1q) or 802.1ad (Q-in-Q) encapsulation.

  • IEEE 802.1Q – Also known as Dot1q, this is the industry standard network trunking protocol that supports multiple VLANs on the same physical interface, and defines how VLAN tagging is used on Ethernet frames to create logically separate networks. Customers must assign a single VLAN ID to each VC to achieve traffic separation. Although unlikely, Fabric customers can technically create up to 4094 VCs from a Dot1q port, using all available VLANs.

  • IEEE 802.1ad – Also known as Q-in-Q, VLAN Stacking, and double-tagging, this protocol is based on 802.1Q but uses two 802.1Q tags instead of one. There is an outer tag or s-tag (sometimes called the service tag or service provider tag), and an inner tag or c-tag (also called the customer tag, 802.1ad), Q-in-Q is often used by service providers to extend up to 4094 customer VLANs using just one service provider tag.

Traffic will be switched to the corresponding Virtual Connection (VC) configured in Equinix Fabric. If traffic is tagged with a VLAN not mapped to a VC, or arrives untagged, the traffic will be dropped at ingress.

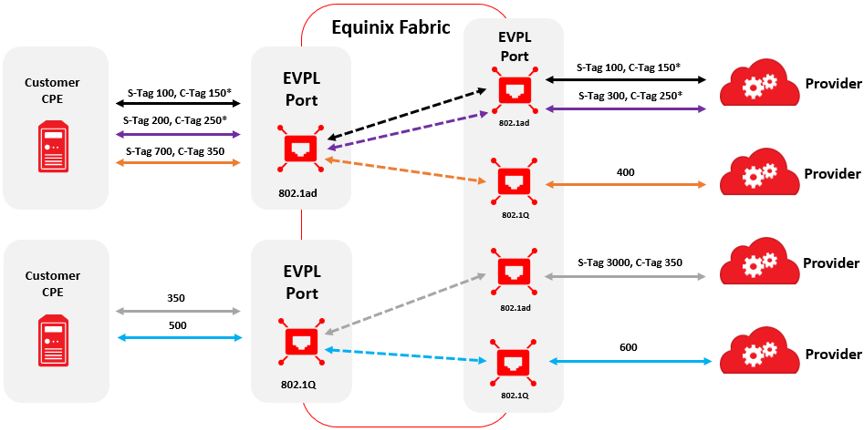

The diagram below is a complex example showing both EVPL configured for 802.1ad and 802.1Q with the following characteristics:

  • Multiple tags can go to the same provider.
  • Multiple tags can go to different providers.
  • Untagged traffic is dropped.
  • Tags without a destination are dropped.
  • Equinix Fabric is blind to inner tags (Customer Tag, aka C-Tag) when creating VCs between two 802.1ad ports – Fabric matches on the outer tag (Service Tag, aka S-Tag) only.
  • Equinix Fabric can translate all tags except when going between two 802.1ad ports (Equinix Fabric is blind to the inner tags and cannot translate them.)

Ethernet Private Line (EPL) Ports​

On EPL ports, traffic that is VLAN tagged, untagged, or a combination of the two transported as is between both ports.Each EPL port allows for one connection and there is no separation of traffic. Users can pass multiple VLANs across an EPL connection, but Equinix will just pass the VLANs along and not act on them.

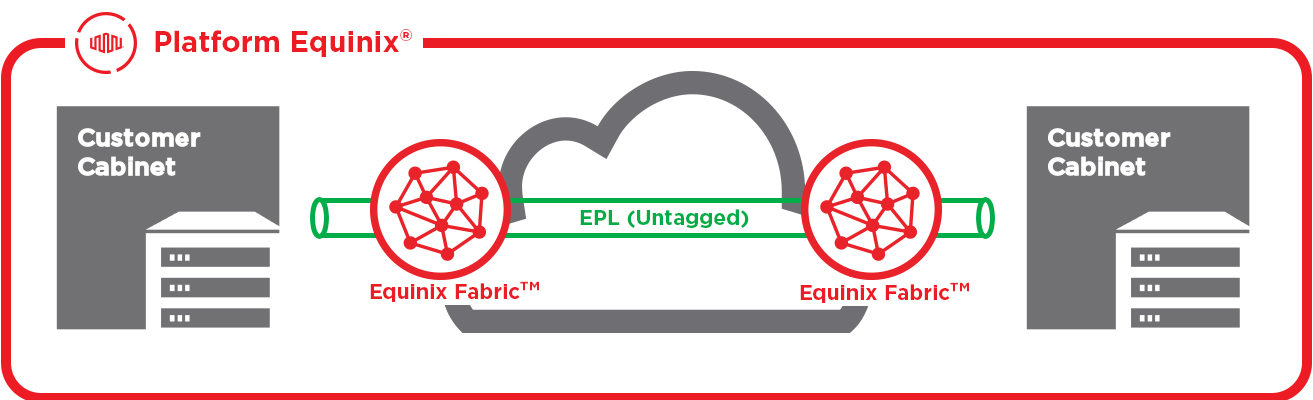

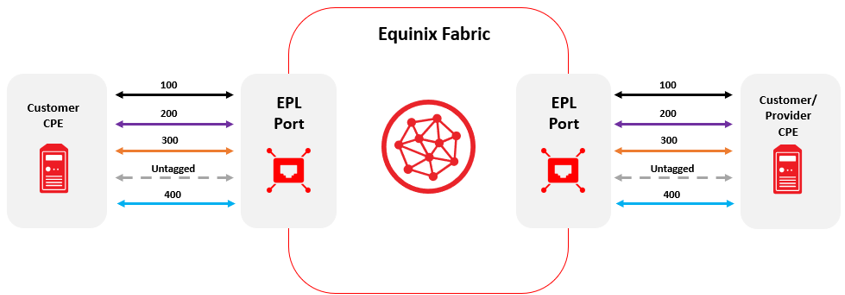

The diagram below is a complex example showing the use of EPL on Equinix Fabric. EPL VCs have the following characteristics:

  • They are highly-transparent – all Ethernet frames except Pause frames are passed through EPL.
  • All traffic entering an EPL port will exit to the far-end EPL port.
  • Equinix Fabric is blind to all traffic within the EPL VC; VLAN translation is not supported.
  • EPL requires two ports and only two ports.
  • Only one VC is created between EPL ports.
