Virtual Connection Availability

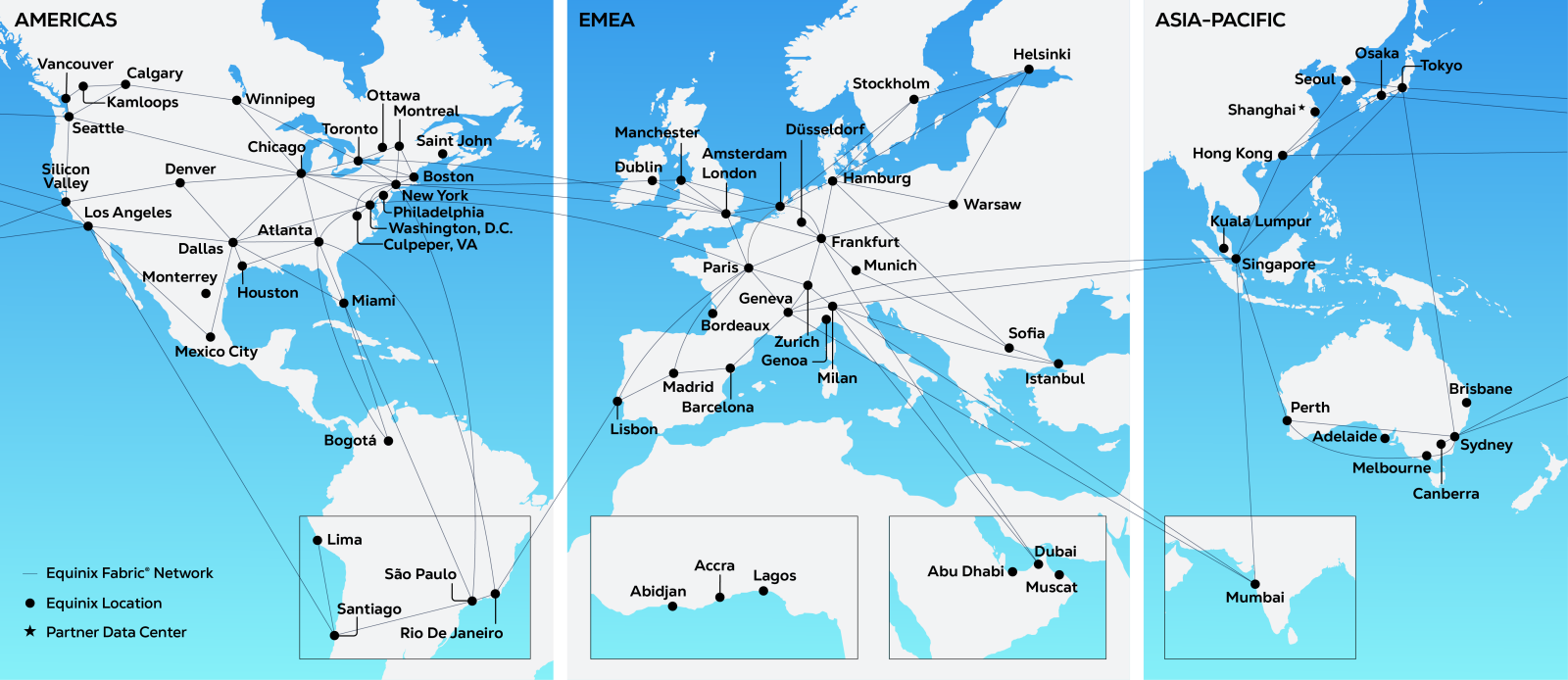

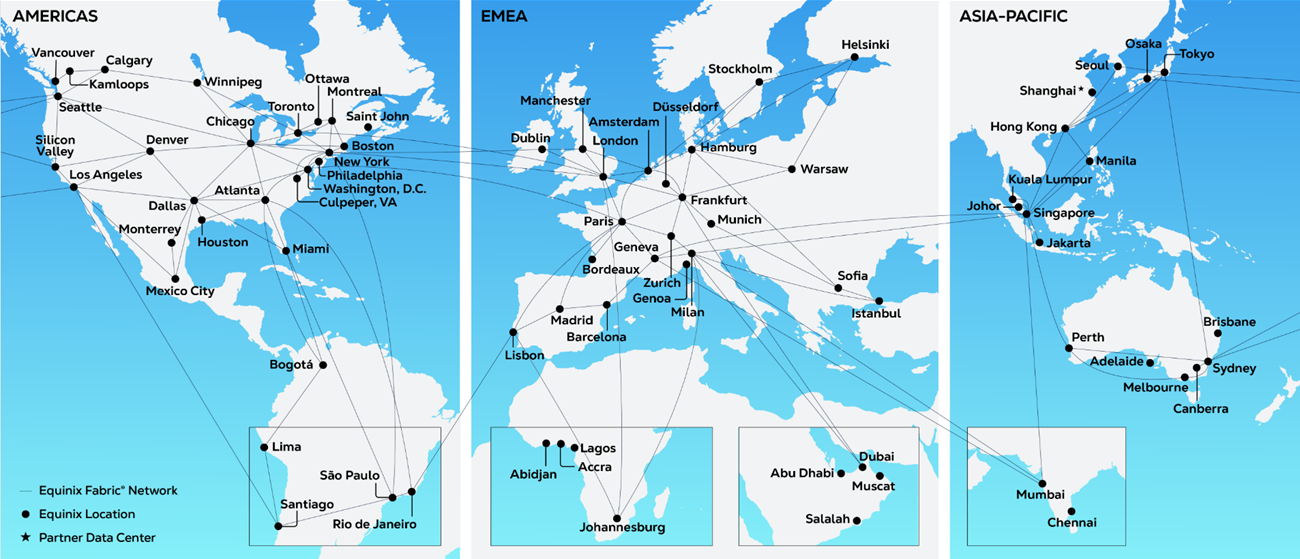

Equinix Fabric is available in over 60 global metros.
Virtual Connections at speeds up to 100 Gbps
Virtual connections with speeds up to 50 Gbps are available in most metros. 100 Gbps connection speeds are available in select metros.
Connection speeds greater than 10 Gbps are currently available for:
- Port-to-port, Fabric Cloud Router (FCR), and cloud connections
- 100 Gbps EPL or EVPL ports are required for port based connections
- FCR Advanced package is required for FCR based connections
- New 100 Gbps ports must be provisioned to support 100 Gbps connections in metros where they are available. Existing 100 Gbps ports do not support 100 Gbps connections.
Maximum virtual connection bandwidth speed by metro:
| AMER | Max VC Speed (Gbps) | EMEA | Max VC Speed (Gbps) | APAC | Max VC Speed (Gbps) |
|---|---|---|---|---|---|
| AT (Atlanta) | 50 | AM (Amsterdam) | 100* | CA (Canberra) | 5 |
| BG (Bogota) | 50 | BA (Barcelona) | 50 | HK (Hong Kong) | 50 |
| BO (Boston) | 50 | BX (Bordeaux) | 50 | JH (Johor) | 50 |
| CL (Calgary) | 50 | DB (Dublin) | 50 | JK (Jakarta) | 5 |
| CH (Chicago) | 100* | DX (Dubai) | 5 | KL (Kuala Lumpur) | 5 |
| CU (Culpeper) | 50 | FR (Frankfurt) | 100* | MB (Mumbai) | 5 |
| DA (Dallas) | 50 | GV (Geneva) | 50 | ME (Melbourne) | 50 |
| DC (Ashburn) | 100* | HH (Hamburg) | 50 | OS (Osaka) | 50 |
| DE (Denver) | 50 | HE (Helsinki) | 50 | PE (Perth) | 50 |
| HO (Houston) | 50 | IL (Istanbul) | 50 | SE (Seoul) | 50 |
| KA (Kamloops) | 50 | JN (Johannesburg) | 50 | SG (Singapore) | 50 |
| LA (Los Angeles) | 50 | LS (Lisbon) | 50 | SY (Sydney) | 50 |
| LI (Lima) | 5 | LD (London) | 100* | TY (Tokyo) | 50 |
| MI (Miami) | 50 | MD (Madrid) | 50 | — | — |
| MO (Monterrey) | 50 | MA (Manchester) | 50 | — | — |
| MT (Montreal) | 50 | ML (Milan) | 50 | — | — |
| MX (Mexico City) | 50 | MU (Munich) | 50 | — | — |
| NY (New York) | 100* | PA (Paris) | 100* | — | — |
| OT (Ottawa) | 50 | SO (Sofia) | 50 | — | — |
| PH (Philadelphia) | 50 | SK (Stockholm) | 50 | — | — |
| RJ (Rio de Janeiro) | 50 | ZH (Zurich) | 50 | — | — |
| SP (Sao Paulo) | 50 | — | — | — | — |
| ST (Santiago) | 50 | — | — | — | — |
| SE (Seattle) | 50 | — | — | — | — |
| SV (Silicon Valley) | 50 | — | — | — | — |
| TR (Toronto) | 50 | — | — | — | — |
| VA (Vancouver) | 50 | — | — | — | — |
| WI (Winnipeg) | 50 | — | — | — | — |
*In the AMER region, 100 Gbps connections are only available within and between CH, DC, and NY. In the EMEA region, 100 Gbps connections are only available within and between AM, FR, LD, and PA.
Multipoint Networks – Maximum Bandwidth Speed
The Maximum bandwidth speed for connections to regional and global multipoint networks (E-LAN, E-Tree, IP-WAN) is 25Gbps. Connections to multipoint networks are not supported from the following metros:
AMER
- LM (Lima)
EMEA
- DX (Dubai)
APAC
- Canberra (CA)
- Jakarta (JK)
- Kuala Lumpur (KA)
- Mumbai (MB)
Inter-metro Latency
The values in the tables represent average round-trip latencies between a Metro and a Region, expressed in milliseconds, observed during the preceding month. These numbers describe only latencies between Equinix Fabric nodes and should not be taken to represent the end-to-end performance of an individual connection. Latency due to connectivity beyond those nodes (for example, local access within a metro) is not accounted for here.
Latencies are subject to change as a result of ongoing network upgrades and metro expansions.
North America
| Metro | North America | South America | EMEA | APAC |
|---|---|---|---|---|
| AT (Atlanta) | 36 | 143 | 119 | 210 |
| BO (Boston) | 41 | 153 | 103 | 224 |
| CH (Chicago) | 30 | 165 | 114 | 195 |
| CL (Calgary) | 50 | 171 | 139 | 177 |
| CU (Culpeper) | 37 | 153 | 106 | 222 |
| DA (Dallas) | 37 | 141 | 133 | 199 |
| DC (Ashburn) | 35 | 150 | 103 | 220 |
| DE (Denver) | 38 | 156 | 133 | 184 |
| HO (Houston) | 42 | 161 | 135 | 204 |
| KA (Kamloops) | 50 | 171 | 146 | 167 |
| LA (Los Angeles) | 49 | 149 | 163 | 178 |
| MI (Miami) | 50 | 132 | 135 | 225 |
| MO (Monterrey) | 49 | 158 | 149 | 213 |
| MT (Montreal) | 40 | 155 | 105 | 224 |
| MX (Mexico City) | 57 | 163 | 160 | 218 |
| NY (New York) | 36 | 147 | 97 | 219 |
| PH (Philadelphia) | 36 | 148 | 98 | 221 |
| SE (Seattle) | 50 | 170 | 158 | 159 |
| SV (Silicon Valley) | 50 | 157 | 165 | 177 |
| TR (Toronto) | 36 | 157 | 103 | 207 |
| VA (Vancouver) | 51 | 175 | 151 | 164 |
| WI (Winnipeg) | 39 | 181 | 124 | 190 |
South America
| Metro | North America | South America | EMEA | APAC |
|---|---|---|---|---|
| BG (Bogota) | 105 | 163 | 188 | 275 |
| LM (Lima) | 204 | 101 | 268 | 331 |
| RJ (Rio de Janeiro) | 155 | 72 | 169 | 311 |
| SP (Sao Paulo) | 152 | 68 | 177 | 316 |
| ST (Santiago) | 170 | 78 | 231 | 298 |
EMEA
| Metro | North America | South America | EMEA | APAC |
|---|---|---|---|---|
| AM (Amsterdam) | 112 | 197 | 24 | 219 |
| BA (Barcelona) | 134 | 186 | 36 | 222 |
| BL (Brussels) | 116 | 197 | 26 | 225 |
| BX (Bordeaux) | 119 | 201 | 31 | 222 |
| DB (Dublin) | 100 | 200 | 34 | 243 |
| DX (Dubai) | 213 | 305 | 114 | 305 |
| FR (Frankfurt) | 120 | 200 | 22 | 210 |
| GV (Geneva) | 121 | 193 | 27 | 209 |
| HE (Helsinki) | 141 | 225 | 41 | 233 |
| HH (Hamburg) | 120 | 206 | 26 | 218 |
| IL (Istanbul) | 153 | 236 | 53 | 231 |
| LD (London) | 106 | 195 | 26 | 237 |
| LS (Lisbon) | 143 | 173 | 49 | 240 |
| MA (Manchester) | 106 | 199 | 30 | 242 |
| MD (Madrid) | 129 | 177 | 38 | 233 |
| ML (Milan) | 132 | 204 | 30 | 200 |
| MU (Munich) | 126 | 205 | 27 | 216 |
| PA (Paris) | 112 | 190 | 25 | 217 |
| SK (Stockholm) | 136 | 220 | 38 | 231 |
| SO (Sofia) | 144 | 224 | 44 | 234 |
| WA (Warsaw) | 134 | 212 | 35 | 227 |
| ZH (Zurich) | 122 | 197 | 25 | 203 |
APAC
| Metro | North America | South America | EMEA | APAC |
|---|---|---|---|---|
| CA (Canberra) | 190 | 288 | 280 | 91 |
| HK (Hong Kong) | 197 | 312 | 215 | 72 |
| JH (Johor) | 225 | 340 | 184 | 59 |
| KL (Kuala Lumpur) | 231 | 345 | 191 | 65 |
| MB (Mumbai) | 240 | 311 | 142 | 106 |
| ME (Melbourne) | 198 | 296 | 268 | 86 |
| OS (Osaka) | 151 | 264 | 261 | 85 |
| PE (Perth) | 235 | 330 | 230 | 75 |
| SG (Singapore) | 224 | 340 | 184 | 59 |
| SL (Seoul) | 179 | 295 | 259 | 92 |
| SY (Sydney) | 185 | 284 | 275 | 86 |
| TY (Tokyo) | 145 | 262 | 247 | 77 |
