Connect as E-access

Enable access to your network services on Equinix Fabric without having to manage connections' C-tag information.

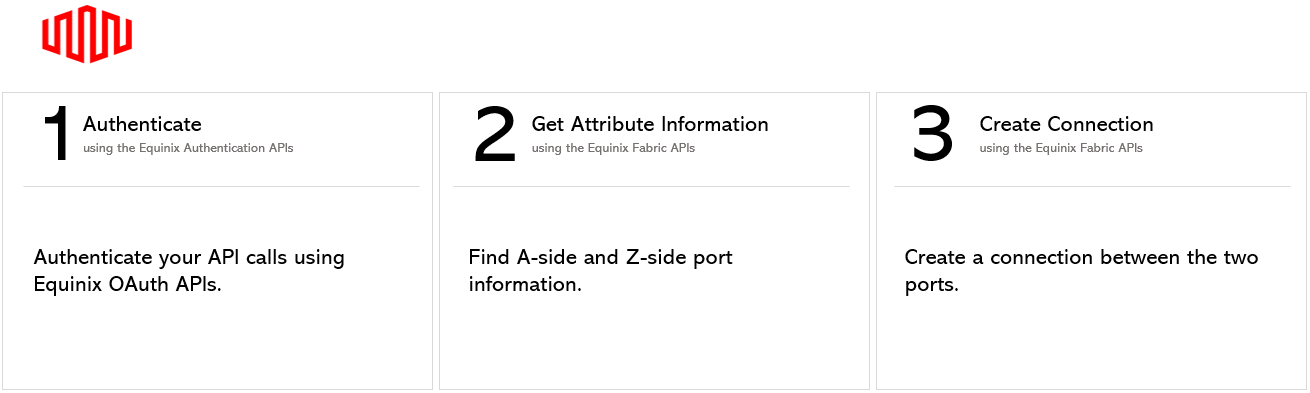

Prerequisites

Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call the OAuth API to validate and authenticate your credentials.
Get your relevant port information using the Get All Ports endpoint. Specifically, the ports need to meet the following criteria:
- The port that aggregates traffic from different clients must use QINQ encapsulation.
- The port that aggregates traffic from different clients can be assigned to other ACCESS_EPL_VC type connections only.
- The client side port must be an EPL port, and it can't be assigned to any other connection unless it's in the DEPROVISIONED state.

Creating a Connection - QINQ Port to EPL Port

To create a connection as e-access from a QINQ Port to an EPL Port, send a POST request to the /fabric/v4/connections endpoint. Specify your connection's configuration details in the body of the request.

	POST /fabric/v4/connections
Method	`POST`
Endpoint	`/fabric/v4/connections`
Headers	`Authorization`, `Content-Type`
Path Parameters	Not applicable
Query Parameters	Not applicable
Body Parameters	`type`, `name`, `order`, `redundancy`, `bandwidth`, `aSide`, `zSide`, `project`, `notifications`

Sample cURL request:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "ACCESS_EPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "bandwidth": 50,
    "redundancy": {
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "3312101f-5bd0-43d5-b21a-d442b35816a5"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 1001
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "ca655bb1-cca0-ca01-75e0-306a5c00ae38"
            }
        }
    },
    "project": {
        "projectId": 568
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com"
            ]
        }
    ]
}'

The parameters included in the request body are specific to this example. For a full list of parameters and their descriptions, see the API Reference.

Sample Response:

{
    "type": "ACCESS_EPL_VC",
    "href": "https://api.equinix.com/fabric/v4/connections/eb45d323-5281-44dc-842b-c19a15ac837f",
    "uuid": "eb45d323-5281-44dc-842b-c19a15ac837f",
    "name": "Conn-1",
    "state": "PROVISIONING",
    "operation": {
        "providerStatus": "NOT_AVAILABLE",
        "equinixStatus": "PROVISIONING"
    },
    "order": {
        "purchaseOrderNumber": "1-129105284100",
        "billingTier": "Up to 50 Mbps"
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com"
            ]
        }
    ],
    "project": {
        "projectId": 568
    },
    "account": {
        "accountNumber": 272235,
        "orgId": 91604,
        "globalOrgId": "0016u000003JZ6HAAW"
    },
    "changeLog": {
        "createdBy": "EPL-account01-user",
        "createdDateTime": "2022-03-26T11:07:47.325Z"
    },
    "bandwidth": 50,
    "redundancy": {
        "group": "5c0e9384-aa79-4ec9-b7a2-557f8c307292",
        "priority": "PRIMARY"
    },
    "isRemote": false,
    "direction": "INTERNAL",
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "account": {
                "accountNumber": 272235,
                "orgId": 91604,
                "organizationName": "EPL-account01",
                "globalOrgId": "0016u000003JZ6HAAW"
            },
            "location": {
                "href": "https://api.equinix.com/fabric/v4/metros/DA",
                "region": "AMER",
                "metroName": "Dallas",
                "metroCode": "DA"
            },
            "port": {
                "href": "https://api.equinix.com/fabric/v4/ports/3312101f-5bd0-43d5-b21a-d442b35816a5",
                "uuid": "3312101f-5bd0-43d5-b21a-d442b35816a5",
                "name": "272235-DA1-CX-Primary-01"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 689,
                "vlanCTag": 0
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "account": {
                "accountNumber": 272235,
                "orgId": 91604,
                "organizationName": "EPL-account01",
                "globalOrgId": "0016u000003JZ6HAAW"
            },
            "location": {
                "href": "https://api.equinix.com/fabric/v4/metros/DA",
                "region": "AMER",
                "metroName": "Dallas",
                "metroCode": "DA"
            },
            "port": {
                "href": "https://api.equinix.com/fabric/v4/ports/ca655bb1-cca0-ca01-75e0-306a5c00ae38",
                "uuid": "ca655bb1-cca0-ca01-75e0-306a5c00ae38",
                "name": "EPL-account01-DA1-NL-EPL-STD-SEC-10G-NK-28"
            },
            "linkProtocol": {
                "type": "UNTAGGED"
            }
        }
    }
}

Response payload includes configuration parameters defined in the request body. For a full list of possible parameters and their descriptions, see the API Reference.

Creating a Connection - EPL Port to QINQ Port

To create a connection as e-access from an EPL Port to a QINQ Port, send a POST request to the /fabric/v4/connections endpoint. Specify your connection's configuration details in the body of the request.

Sample cURL request:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "ACCESS_EPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "bandwidth": 50,
    "redundancy": {
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f4"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanSTag": 1001
            }
        }
    },
    "project": {
        "projectId": 568
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test@equinix.com"
            ]
        }
    ]
}'

The parameters included in the request body are specific to this example. For a full list of parameters and their descriptions, see the API Reference.

Monitoring the Connection

Use the Get Specified Connection endpoint to monitor connection status.
