API - Connect to Oracle

Establish a direct, layer 2 connection to Oracle FastConnect to access Oracle Cloud Infrastructure and other Oracle Cloud services.

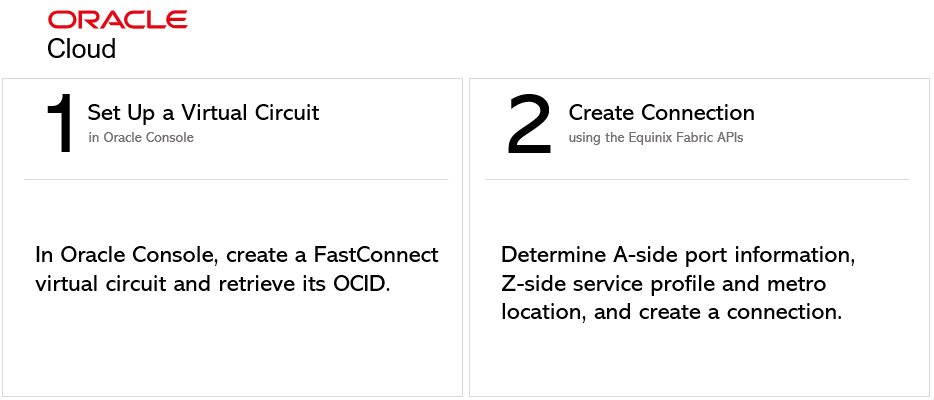

Set Up a Virtual Circuit

In Oracle Console, create a FastConnect virtual circuit. Take note of the OCID as it's necessary for creating a Fabric connection.

Refer to the Oracle Cloud documentation for instructions on how to sign up for Oracle FastConnect.

Fabric API Prerequisites

  1. Authenticate - Submit your user credentials, Client ID, and Client Secret for OAuth2 authentication. Refer to API Authentication for instructions on how to call OAuth API to validate and authenticate your credentials.

  2. Determine Your A-side Information. Either:

    • Retrieve your Equinix Fabric ports information using the Get All Ports API request.

    OR

    • Determine your Network Edge device information. You need a provisioned Equinix Virtual Device/Redundant Devices/Cluster with a registered license. Check your available virtual devices and clusters by calling Get Virtual Devices or Get Virtual Device {uuid}. You may choose any available interface on the device for your connection. However, Equinix will select an interface if you do not specify one.
  3. Choose the Z-side metro location. Use the Get All Metros API request to find all metros where Equinix Fabric is available and determine destination location.

  4. Identify the service profile. Use the Retrieve Service Profiles API request to search for a specific service profile or use the Get Service Profiles API request to list all available service profiles, and identify the profile you want to connect to.

  5. Validate your Authorization Key. Use the Validate Connection Authorization Key API request to verify that your AOracle OCID can be used to create a connection to the selected service profile in the given metro.

Connecting to Oracle FastConnect from a DOT1Q Port

To create a connection from your DOT1Q port to Oracle FastConnect, send a POST request to the /fabric/v4/connections endpoint. Specify your connection's configuration details in the body of the request.

POST /fabric/v4/connections
MethodPOST
Endpoint/fabric/v4/connections
HeadersAuthorization, Content-Type
Path ParametersNot applicable
Query ParametersNot applicable
Body Parameterstype, name, order, bandwidth, aSide, zSide, notifications

Sample cURL request:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "bandwidth": 1000,
    "redundancy": {
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "SP",
            "profile": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f5"
            },
            "location": {
                "metroCode": "SV"
            },
            "authenticationKey": "<auth_key>",
            "sellerRegion": "us-west-1"
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test2@equinix.com"
            ]
        }
    ]
}'

The parameters included in the request body are specific to this example. For a full list of parameters and their descriptions, see the API Reference.

Sample Response:

{
    "href": "https://api.equinix.com/fabric/v4/connections/3a58dd05-f46d-4b1d-a154-2e85c396ea62",
    "type": "EVPL_VC",
    "uuid": "3a58dd05-f46d-4b1d-a154-2e85c396ea62",
    "name": "Conn-1",
    "state": "PROVISIONING",
    "order": {
        "purchaseOrderNumber": "1-129105284100",
        "billingTier": "Up to 1 Gbps"
    },
    "bandwidth": 1000,
    "redundancy": {
        "group": "m167f685-41b0-1b07-6de0-320a5c00abeu",
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "href": "https://api.equinix.com/fabric/v4/ports/a867f685-41b0-1b07-6de0-320a5c00abdd",
                "type": "XF_PORT",
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "DOT1Q",
                "vlanTag": 1001
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "SP",
            "profile": {
                "href": "https://api.equinix.com/fabric/v4/services/serviceProfiles/20d32a80-0d61-4333-bc03-707b591ae2f5",
                "type": "L2_PROFILE",
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f5"
            },
            "location": {
                "href": "https://api.equinix.com/v4/metros/SV",
                "metroCode": "SV",
                "region": "AMER"
            },
            "authenticationKey": "<auth_key>",
            "sellerRegion": "us-west-1"
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test2@equinix.com"
            ]
        }
    ],
    "operation": {
        "equinixStatus": "PROVISIONING",
        "providerStatus": "PROVISIONING"
    },
    "changeLog": {
        "createdDateTime": "2021-07-15T19:30:29.526Z"
    }
}

Response payload includes configuration parameters defined in the request body. For a full list of possible parameters and their descriptions, see the API Reference.

Connecting to Oracle FastConnect from a QINQ Port

To create a connection from your QINQ port to Oracle FastConnect, send a POST request to the /fabric/v4/connections endpoint. Specify your connection's configuration details in the body of the request.

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "Conn-1",
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "bandwidth": 1000,
    "redundancy": {
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "type": "COLO",
            "port": {
                "uuid": "a867f685-41b0-1b07-6de0-320a5c00abdd"
            },
            "linkProtocol": {
                "type": "QINQ",
                "vlanCTag": 1001,
                "vlanSTag": 1002
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "SP",
            "profile": {
                "uuid": "20d32a80-0d61-4333-bc03-707b591ae2f5"
            },
            "location": {
                "metroCode": "SV"
            },
            "authenticationKey": "<auth_key>",
            "sellerRegion": "us-west-1"
        }
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "test@equinix.com",
                "test2@equinix.com"
            ]
        }
    ]
}'

The parameters included in the request body are specific to this example. For a full list of parameters and their descriptions, see the API Reference.

Connecting to Oracle FastConnect from a Network Edge Device

To create a connection from your Network Edge device to Oracle FastConnect, send a POST request to the /fabric/v4/connections endpoint. Specify your connection's configuration details in the body of the request.

| POST /fabric/v4/connections | | --- | --- | | Method | POST | | Endpoint | /fabric/v4/connections | | Headers | Authorization, Content-Type | | Path Parameters | Not applicable | | Query Parameters | Not applicable | | Body Parameters | type, name, order, bandwidth, aSide, zSide, notifications |

Sample cURL Request:

curl -X
POST 'https://api.equinix.com/fabric/v4/connections'
-H 'content-type: application/json'
-H 'authorization: Bearer <token>'
-d '{
    "type": "EVPL_VC",
    "name": "vd2oracle-vvv-0412a",
    "bandwidth": 1000,
    "aSide": {
        "accessPoint": {
            "type": "VD",
            "virtualDevice": {
                "type": "EDGE",
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXX"
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "type": "SP",
            "profile": {
                "type": "L2_PROFILE",
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXX"
            },
            "location": {
                "metroCode": "DC"
            },
            "authenticationKey": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
            "sellerRegion": "us-ashburn-1"
        }
    },
    "project": {
        "projectId": "16799d66-ef43-445c-ba29-d17522d8a137"
    },
    "order": {
        "purchaseOrderNumber": "1-129105284100"
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "x@gmail.com"
            ]
        }
    ]
}'

The parameters included in the request body are specific to this example. For a full list of parameters and their descriptions, see the API Reference.

Sample Response:

{
    "type": "EVPL_VC",
    "href": "https://api.equinix.com/fabric/v4/connections/53c89f1a-0be7-44a1-9c03-28059632a72d",
    "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXX",
    "name": "vd2oracle-vvv-0425a",
    "operation": {
        "providerStatus": "PROVISIONING",
        "equinixStatus": "PROVISIONING"
    },
    "order": {
        "purchaseOrderNumber": "1-129105284100",
        "billingTier": "Up to 1G"
    },
    "notifications": [
        {
            "type": "ALL",
            "emails": [
                "x@gmail.com"
            ]
        }
    ],
    "changeLog": {
        "createdBy": "fabricamcrh1",
        "createdByFullName": "fabric amcrh1",
        "createdByEmail": "x@gmail.com",
        "createdDateTime": "2024-04-25T20:40:40.676Z",
        "updatedBy": "fabricamcrh1",
        "updatedByFullName": "fabric amcrh1",
        "updatedByEmail": "x@gmail.com",
        "updatedDateTime": "2024-04-25T20:40:40.677Z"
    },
    "bandwidth": 1000,
    "redundancy": {
        "group": "43009a55-87ee-4dff-8ae4-70ccb7c3d4e9",
        "priority": "PRIMARY"
    },
    "aSide": {
        "accessPoint": {
            "interface": {
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
                "id": 5,
                "type": "CLOUD"
            },
            "location": {
                "metroCode": "DC"
            },
            "virtualDevice": {
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
                "type": "EDGE"
            }
        }
    },
    "zSide": {
        "accessPoint": {
            "location": {
                "metroCode": "DC"
            },
            "profile": {
                "href": "https://api.equinix.com/fabric/v4/serviceProfiles/60ef0382-cdaa-44e7-bd36-b803731816b8",
                "type": "L2_PROFILE",
                "name": "Oracle Cloud Infrastructure FastConnect",
                "uuid": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX"
            },
            "sellerRegion": "us-ashburn-1",
            "authenticationKey": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX"
        }
    }
}

Response payload includes configuration parameters defined in the request body. For a full list of possible parameters and their descriptions, see the API Reference.

Monitoring the Connection Status

Send a GET request to the fabric/v4/connections/{connectionId} endpoint to monitor connection status.

equinixStatusparameter valuesproviderStatusattribute valuesDescription
PROVISIONINGPROVISIONINGConnection request has not been sent to Oracle yet.
PROVISIONEDPROVISIONINGConnection establishment in progress.
PROVISIONEDPROVISIONEDConnection established.
