Transmisión de datos de Colocation desde la API de Equinix

La API de streaming permite crear una suscripción para poder recuperar sus datos de la API de Equinix.

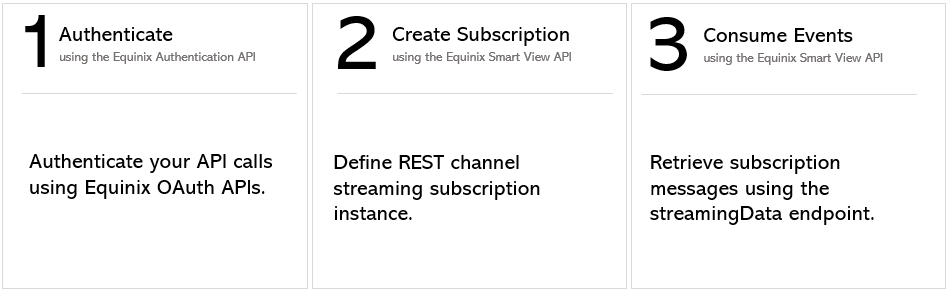

Requisitos previos

• Envíe sus credenciales de usuario, ID de cliente y secreto de cliente para la autenticación OAuth2. Consulte Autenticación de API para obtener más información sobre cómo autenticar sus solicitudes en Equinix API.

• Crear una suscripción. Envíe una POST solicitud al /smartview/v2/streaming/subscriptionspunto final y especifique el channelType AS REST. El Location encabezado de la respuesta contiene el ID de suscripción necesario para consumir el feed en tiempo real. Para obtener más información, consulte Creación de una suscripción.

Recuperar los datos

Para recuperar sus mensajes de canal de streaming REST, envíe una GET solicitud al smartview/v2/streaming/subscriptionData/{subscriptionId}punto final.

Ejemplo de solicitud cURL:

curl -X
GET 'https://api.equinix.com/smartview/v2/streaming/subscriptionData/0f6bdb36-e130-4924-b038-ee1785fad999'

Respuesta de muestra:

{
    "alarmMessageData": [],
    "alertMessageData": [],
    "environmentMessageData": [],
    "meteredPowerMessageData": [],
    "powerMessageData": [
        {
            "type": "power",
            "data": {
                "streamId": "20409808",
                "ibx": "LD9",
                "asset": {
                    "id": "20409808",
                    "type": "CIRCUIT"
                },
                "cage": "LD9:0G:0Z10BB",
                "cabinet": "LD9:0G:0Z10BB:0109",
                "accountNumber": "116710",
                "description": "32-amp 230v Single Phase Primary AC Power",
                "oid": "1.3.6.1.2.1.299.36.10.4442",
                "realPower": {
                    "value": "0.000",
                    "unit": "kW"
                },
                "apparentPower": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "current": {
                    "value": "0.000",
                    "unit": "A"
                },
                "powerFactor": {
                    "value": "0.000",
                    "unit": "pf"
                },
                "soldCurrent": {
                    "value": "32.000",
                    "unit": "A"
                },
                "soldPower": {
                    "value": "7.360",
                    "unit": "kVA"
                },
                "powerConsumptionToContractual": {
                    "value": "0.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDays": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "peakLastSevenDaysRatio": {
                    "value": "0.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDaysContractualPower": {
                    "value": "7.360",
                    "unit": "kVA"
                },
                "peakLastSevenDaysTime": "2023-12-06T05:45:00",
                "lastUpdated": "2023-12-07T15:49:00",
                "readingTime": "2023-12-07T15:45:00"
            }
        },
        {
            "type": "power",
            "data": {
                "streamId": "20409809",
                "ibx": "LD9",
                "asset": {
                    "id": "20409809",
                    "type": "CIRCUIT"
                },
                "cage": "LD9:0G:0Z10BB",
                "cabinet": "LD9:0G:0Z10BB:0109",
                "accountNumber": "116710",
                "description": "32-amp 230v Single Phase Redundant AC Power",
                "oid": "1.3.6.1.2.1.299.36.10.4443",
                "realPower": {
                    "value": "0.000",
                    "unit": "kW"
                },
                "apparentPower": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "current": {
                    "value": "0.000",
                    "unit": "A"
                },
                "powerFactor": {
                    "value": "0.000",
                    "unit": "pf"
                },
                "soldCurrent": {
                    "value": "32.000",
                    "unit": "A"
                },
                "soldPower": {
                    "value": "7.360",
                    "unit": "kVA"
                },
                "powerConsumptionToContractual": {
                    "value": "0.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDays": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "peakLastSevenDaysRatio": {
                    "value": "-1.000",
                    "unit": "PERCENT"
                },
                "peakLastSevenDaysContractualPower": {
                    "value": "0.000",
                    "unit": "kVA"
                },
                "peakLastSevenDaysTime": "2023-12-06T22:15:00",
                "lastUpdated": "2023-12-07T15:49:00",
                "readingTime": "2023-12-07T15:45:00"
            }
        }
    ],
    "tagPointMessageData": [],
    "pagination": {
        "offset": 0,
        "limit": 250,
        "total": 46,
        "next": null,
        "previous": "?offset=0&limit=250"
    }
}
