Gestión de suscripciones

Utilice las API de administración de suscripciones para administrar la entrega de datos de telemetría a su recopilador de datos.

Requisitos previos

• Antes de llamar a las API de administración de suscripciones, consulte Configuración del recopilador de datos para configurar un tipo de fregadero de su elección.

• Para crear suscripciones, debe tener el Fabric Stream Subscription Managerrol (STREAM_SUBSCRIPTION AUMERY CREATE AND LEAD). Póngase en contacto con el administrador de su empresa o con el administrador de IAM para administrar el acceso y los roles.

• Si usas la API, envía tus credenciales de usuario, ID de cliente y Client Secret para la autenticación OAuth2. Consulte Autenticación de API para obtener más información sobre cómo autenticar sus solicitudes en la API de Equinix.

Crear una suscripción

Portal

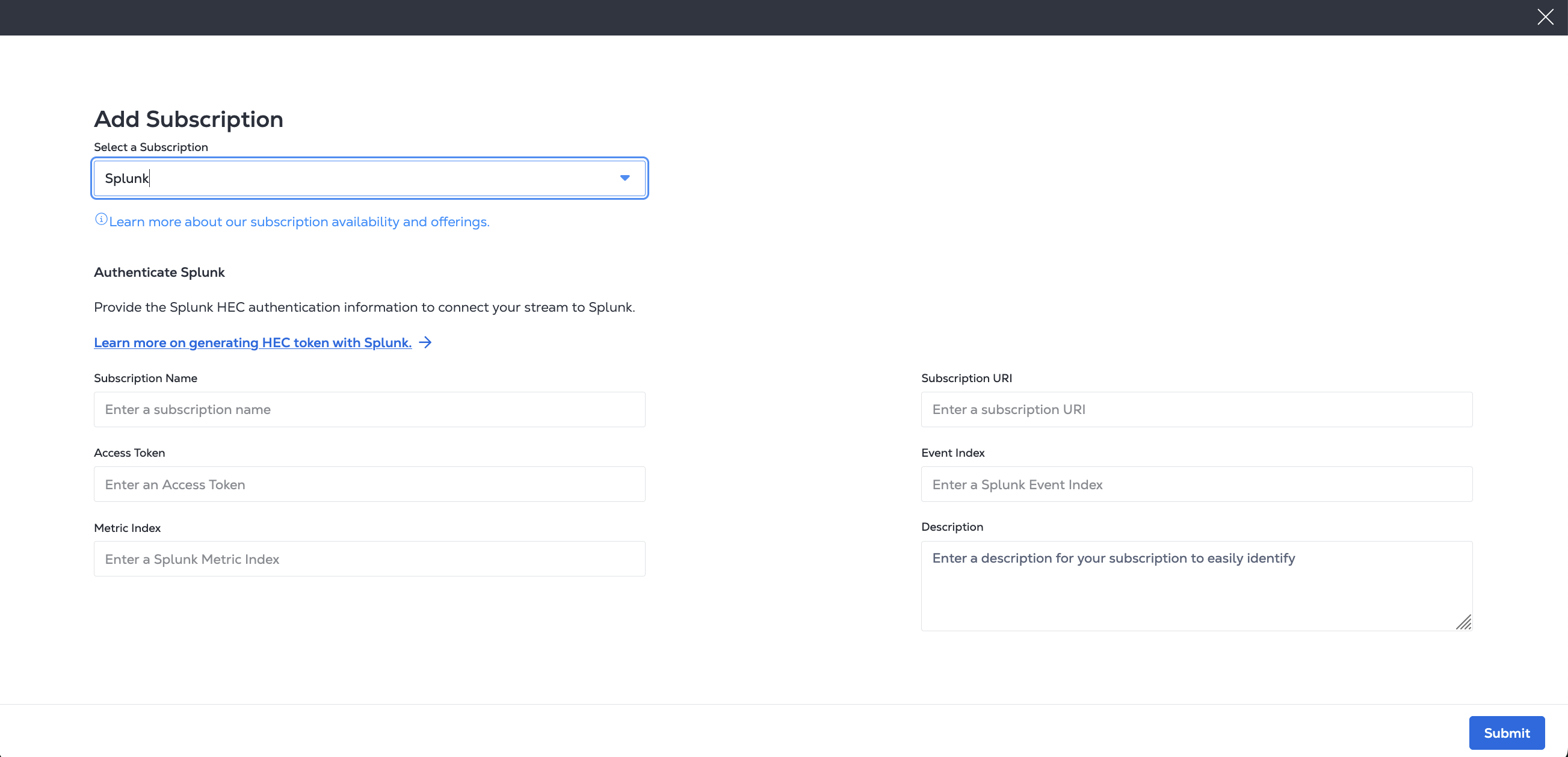

El portal admite la creación y administración de suscripciones a Splunk, Datadog, Microsoft Teams y PagerDuty.

1. Inicie sesión en el Portal del cliente > Fabric Dashboard.

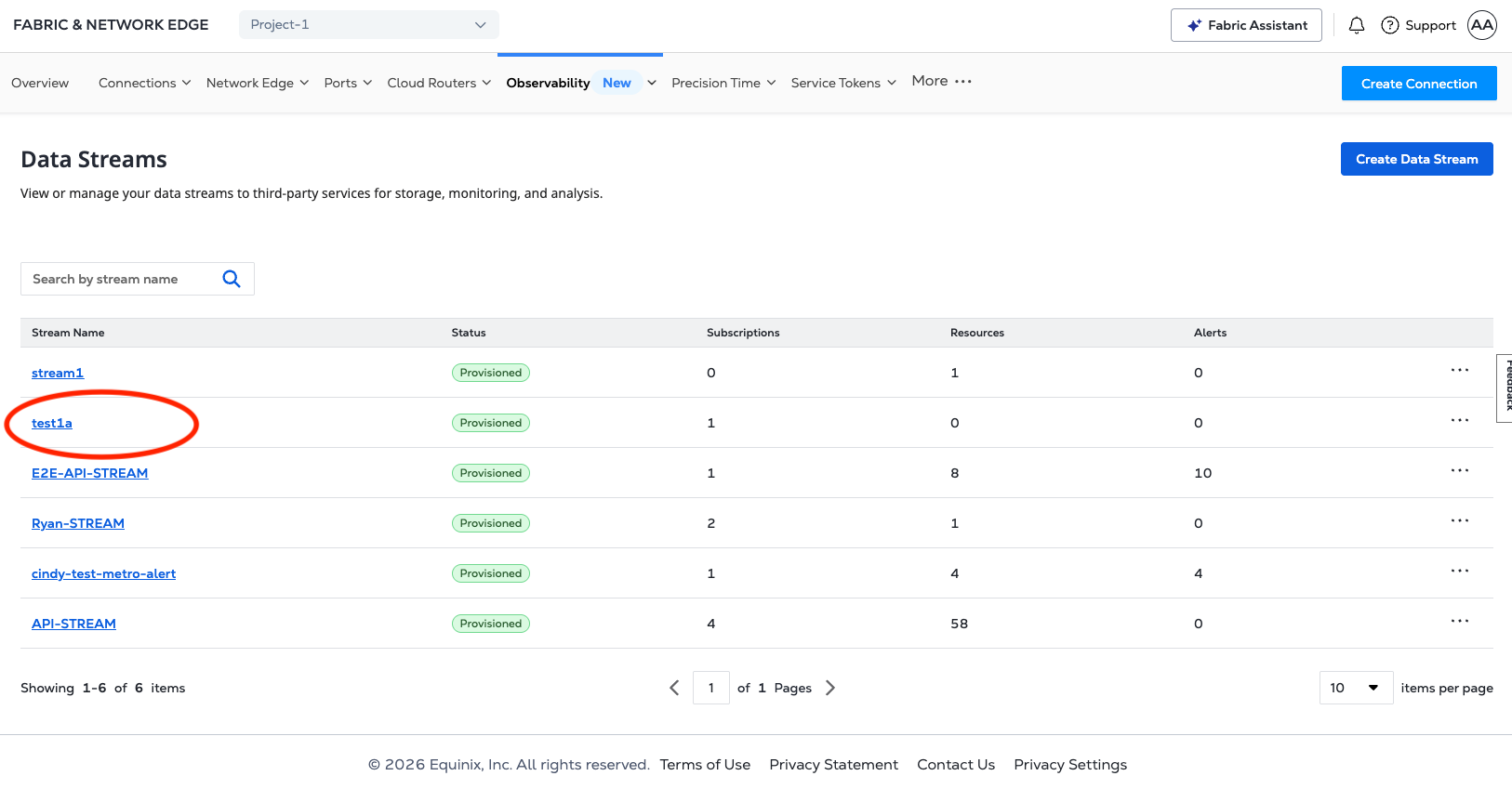

2. En el menú Observability, seleccione Flujos de datos.

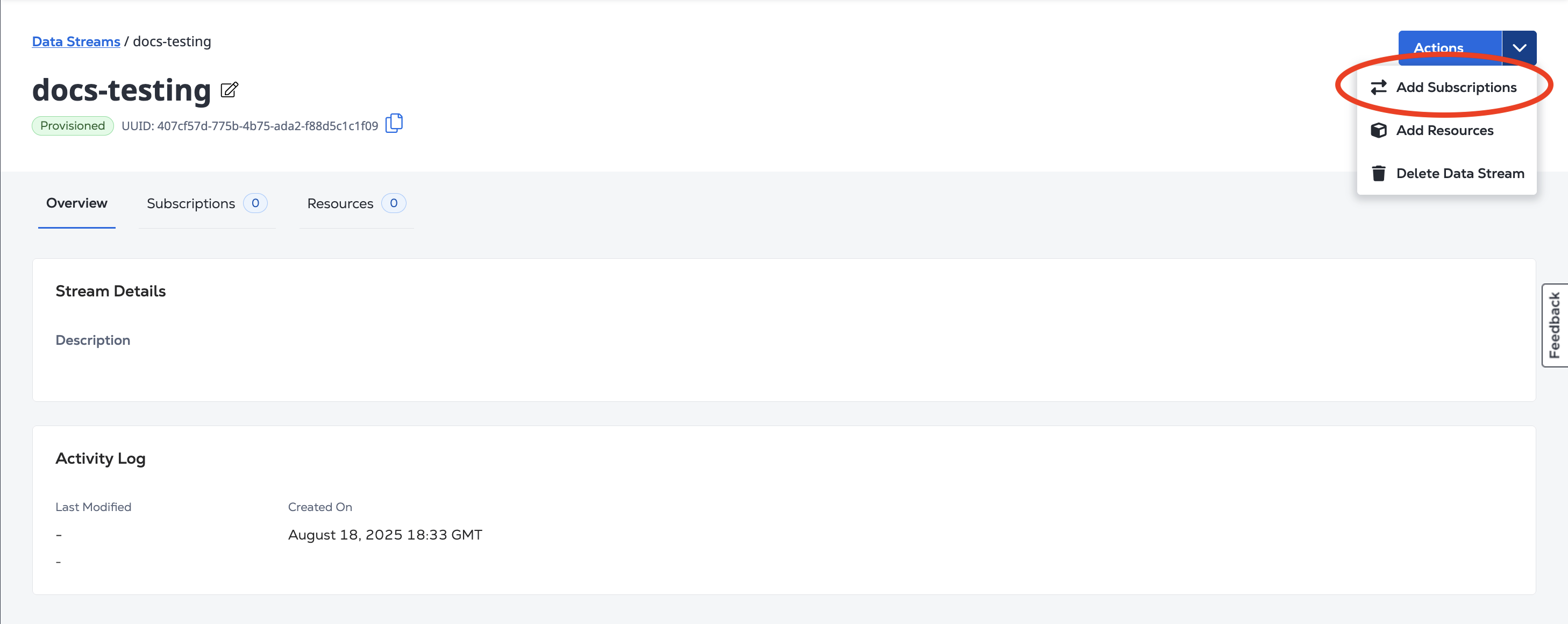

3. En el menú desplegable Acciones, seleccione Agregar suscripciones.



4. Seleccione el recopilador de datos para su Suscripción en el menú desplegable. Consulte los ejemplos a continuación para los recopiladores de datos soportados.

API

Para crear una suscripción, envíe una POST solicitud al /fabric/v4/streams/<streamId>/subscriptionspunto final. Especifique el ID de flujo en el stream objeto y la configuración del recopilador de datos y la información de autenticación en el sink objeto en el cuerpo de la solicitud.

Consulte los ejemplos a continuación para crear una suscripción de flujo para los recopiladores de datos admitidos.

nota

Los valores URI/host de la API de suscripción solo admiten HTTPS y no admiten certificados autofirmados.

Datos

Portal

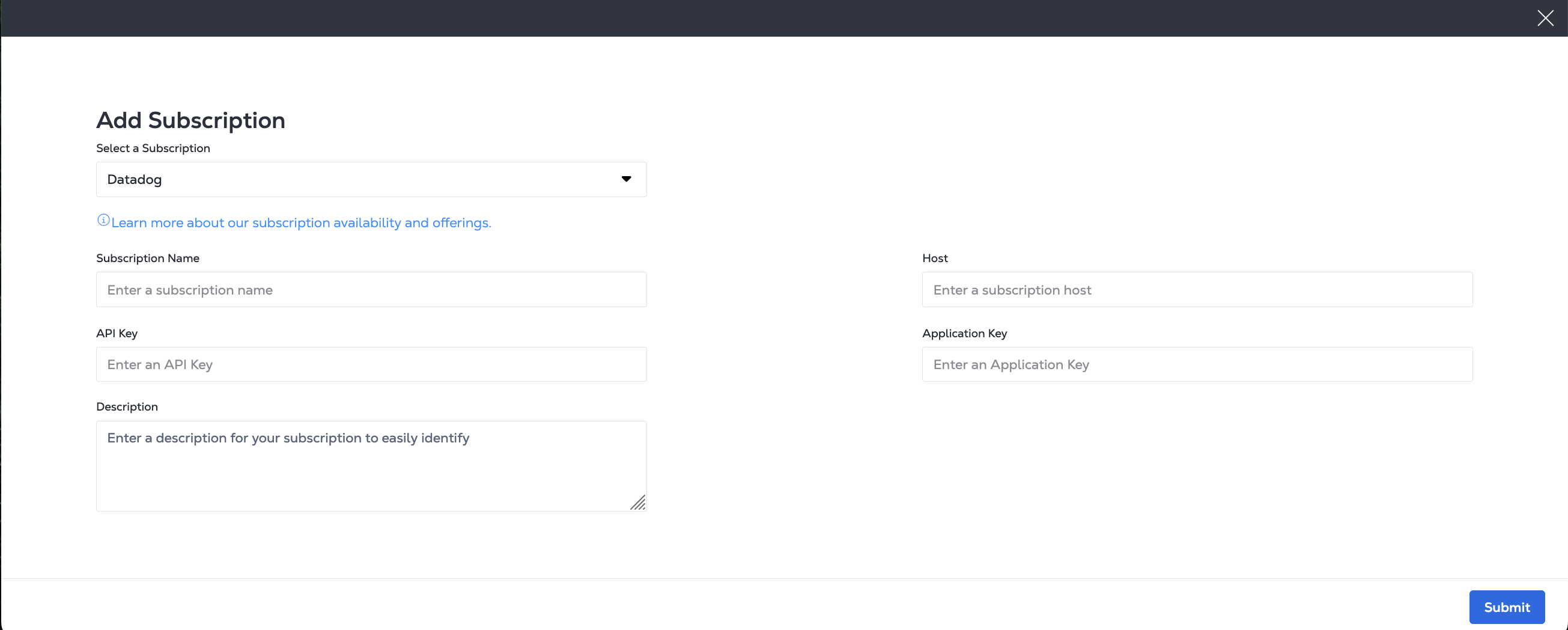

En la página Add Subscription, ingrese la información de su Datadog, incluyendo:

• Un nombre de suscripción
• Tu URL de host de Datadog
• Tu clave API de Datadog
• Su clave de aplicación Datadog
• y proporcionar una descripción (opcional)

API

Utilice la tabla de referencia del sitio Datadog para encontrar el parámetro del sitio para el sink.host parámetro.

Solicitud de curl de muestra:

curl -X 'POST' 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
  "type": "STREAM_SUBSCRIPTION",
  "name": "<datadog_subscription_name>",
  "description": "<datadog_subscription_desc>",
  "sink": {
    "host": "https://<datadog_site_parameter>",
    "type": "DATADOG",
    "credential": {
      "type": "API_KEY",
      "apiKey": "<datadog_api_key>"
    },
    "settings": {
      "applicationKey": "<datadog_application_key>"
    }
  }
}'

Respuesta de muestra:

{
  "href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/1a39648d-c407-4470-b08b-454965f31bf4",
  "uuid": "1a39648d-c407-4470-b08b-454965f31bf4",
  "type": "STREAM_SUBSCRIPTION",
  "name": "datadog_subscription",
  "description": "datadog_subscription_desc",
  "state": "PROVISIONED",
  "enabled": true,
  "sink": {
    "host": "https://<datadog_site_parameter>",
    "type": "DATADOG",
    "credential": {
      "type": "API_KEY",
      "apiKey": "<encrypted_datadog_api_key>"
    },
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5,
    "settings": {
      "metricUri": "https://<datadog_site_parameter>/api/v2/series",
      "eventUri": "https://<datadog_site_parameter>/api/v1/events"
    }
  },
  "changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-10-07T06:48:45.861755Z",
    "updatedDateTime": "2024-10-07T06:48:51.514474Z"
  }
}

Event

---
date_happened: 1719864741 # in seconds
source_type_name: Equinix
aggregation_key: NCAB543WC4lrLpET8nLX4Vd8
title: 'Virtual port status changed to Up'
status: info # INFO->info, WARN -> warn, ERROR->error, CRITICAL->warn, FATAL->error, default: info
text: "{\"cloudevent\":{\"specversion\":\"1.0\",\"source\":\"https://api.equinix.com/fabric/v4/cloudevents\",\"id\":\"6c573287-9914-4202-8b6d-2d15e7da04b8\",\"type\":\"equinix.fabric.port.status.up\",\"subject\":\"/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688\",\"time\":\"2024-07-01T20:12:21.306Z\",\"severitynumber\":9,\"severitytext\":\"INFO\",\"equinixalert\":\"clear/NCAB543WC4lrLpET8nLX4Vd8\",\"equinixproject\":\"123\",\"data\":{\"message\":\"Virtual port status changed to Up\",\"resource\":{}}}}"

Metric

---
series:
- type: 3 # 0(unspecified), 1(count), 2(rate), 3(gauge)
  metric: equinix.fabric.port.bandwidth_rx.usage
  resources:
  - type: subject
    name: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
  - type: equinixproject
    name: 123
  unit: bit/s
  points:
  - timestamp: 1719889941
    value: 440023
- type: 1
  metric: equinix.fabric.port.packets_erred_tx.count
  resources:
  - type: subject
    name: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
  - type: equinixproject
    name: 123
  unit: packet
interval: 300 # in seconds
  points:
  - timestamp: 1719889941
    value: 10

Google PubSub

Portal

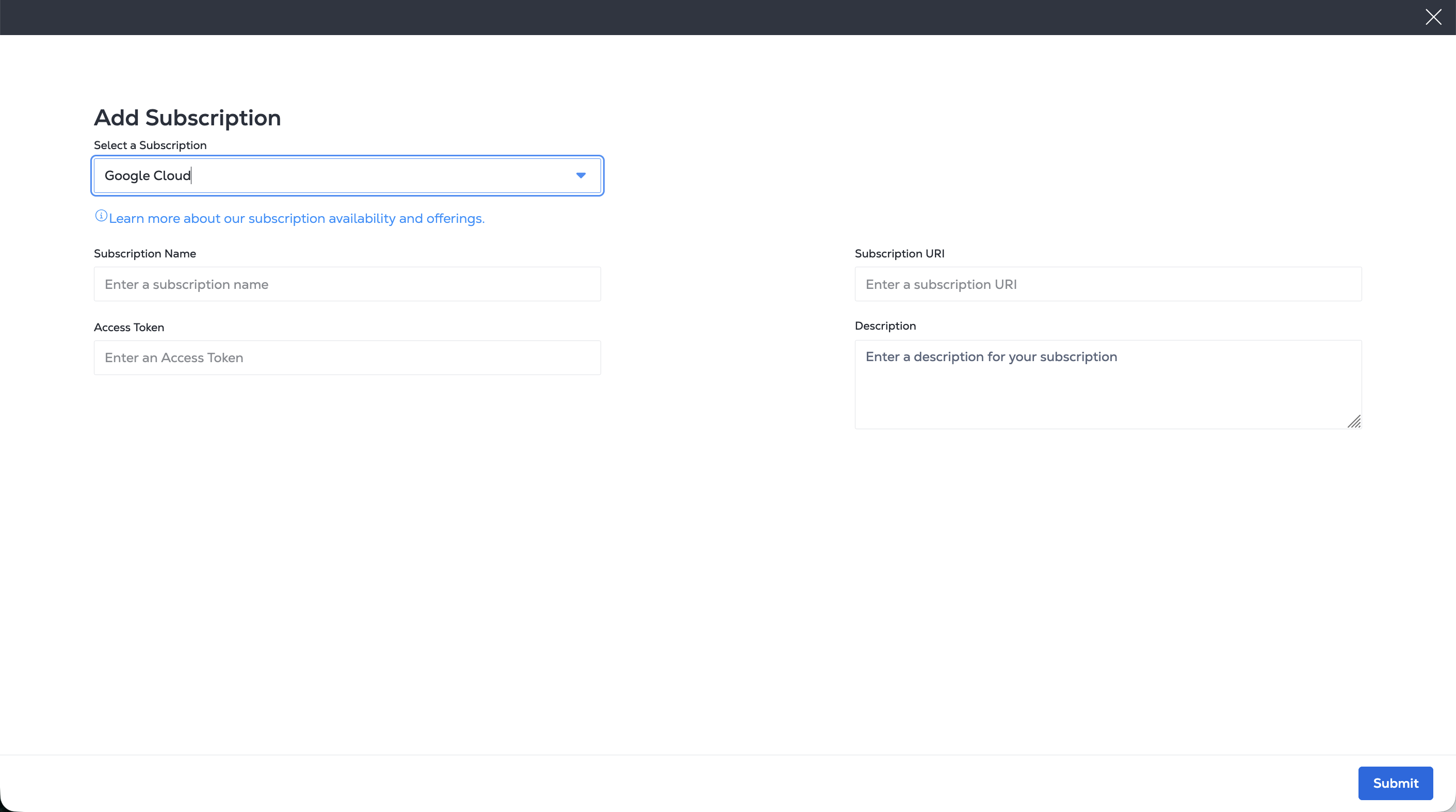

En la página Agregar suscripción, introduce la información de Google Cloud PubSub, que incluye:

• Un nombre de suscripción
• El token de acceso de Google Cloud PubSub
• El URI de suscripción de Google Cloud PubSub
• Y proporcionar una descripción (opcional)

API

curl -X POST 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
    "type": "STREAM_SUBSCRIPTION",
    "name": "<gcp_pubsub_subscription_name>",
    "description": "<gcp_pubsub_subscription_desc>",
    "sink": {
    "uri": "https://pubsub.googleapis.com/v1/projects/<gcp_project_name>/topics/<gcp_topic_name>:publish",
    "type": "GOOGLE_PUBSUB",
    "credential": {
        "type": "ACCESS_TOKEN",
        "accessToken": "<encoded_base64_service_account_json>"
    }
    }
}'

Respuesta de muestra:

{
"href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/12190e7d-a486-4a77-ba56-fecdab616837",
"uuid": "12190e7d-a486-4a77-ba56-fecdab616837",
"type": "STREAM_SUBSCRIPTION",
"name": "<gcp_pubsub_subscription_name>",
"description": "<gcp_pubsub_subscription_desc>",
"state": "PROVISIONED",
"enabled": true,
"sink": {
    "uri": "https://pubsub.googleapis.com/v1/projects/<gcp_project_name>/topics/<gcp_topic_name>:publish",
    "type": "GOOGLE_PUBSUB",
    "credential": {
    "type": "ACCESS_TOKEN"
    },
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5
},
"changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2025-04-28T21:23:02.006057019Z"
}
}

Grafana Webhook

Portal

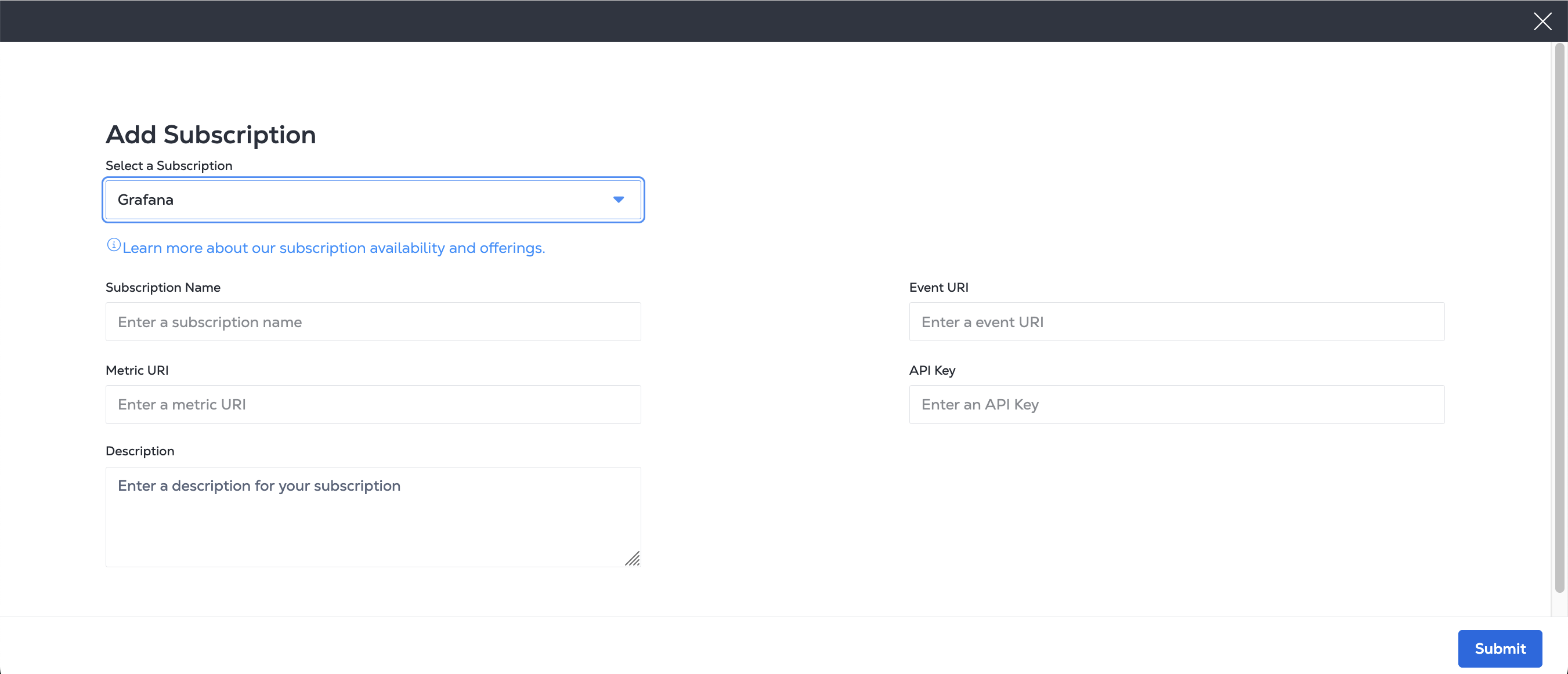

En la página Add Subscription, ingrese su información de Grafana, incluyendo:

• Un nombre de suscripción.
• El URI de métricas de Grafana.
• El URI de eventos de Grafana.
• Tu clave API de Grafana.
• Una descripción opcional.

API

Solicitud de curl de muestra:

curl -X POST 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
"type": "STREAM_SUBSCRIPTION",
"name": "<webhook_subscription_name>",
"description": "<webhook_subscription_desc>",
"enabled": true,
"sink": {
    "type": "WEBHOOK"
    "settings": {
    "eventUri": "https://<grafana_oltp_endpoint>/otlp/v1/logs",
    "metricUri": "https://<grafana_oltp_endpoint>/otlp/v1/metrics",
    "format": "OPENTELEMETRY"
    },
    "credential": {
    "type": "API_KEY",
    "apiKey": "<granfana_instance_id>:<grafana_api_key>",
    }
}
}'

Respuesta de muestra:

{
"href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/1a39648d-c407-4470-b08b-454965f31bf4",
"uuid": "1a39648d-c407-4470-b08b-454965f31bf4",
"type": "STREAM_SUBSCRIPTION",
"name": "datadog_subscription",
"description": "datadog_subscription_desc",
"state": "PROVISIONED",
"enabled": true,
"sink": {
    "host": "https://<datadog_site_parameter>",
    "type": "DATADOG",
    "credential": {
    "type": "API_KEY",
    "apiKey": "<encrypted_datadog_api_key>"
    },
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5,
    "settings": {
    "metricUri": "https://<datadog_site_parameter>/api/v2/series",
    "eventUri": "https://<datadog_site_parameter>/api/v1/events"
    }
},
"changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-10-07T06:48:45.861755Z",
    "updatedDateTime": "2024-10-07T06:48:51.514474Z"
}
}

CloudEvent

---
specversion: '1.0'
source: https://api.equinix.com/fabric/v4/cloudevents
id: 6c573287-9914-4202-8b6d-2d15e7da04b8
type: equinix.fabric.metric
subject: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
time: '2024-07-01T20:12:21.306Z'
severitynumber: 9
severitytext: INFO
equinixproject: 123
dataschema: https://github.com/Fabric/.../ApiConfigEventData.json
datacontenttype: application/json
data:
  message: New metrics collected
  resource:
    href: https://api.equinix.com/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
    uuid: 956a86fb-d03d-436c-8d5d-30d1f51f7688
    name: my-test-port
    description: port description
  metrics:
  - type: GAUGE
    name: equinix.fabric.port.bandwidth_rx.usage
    description: Port inbound bandwidth utilization
    unit: bit/s
    datapoints:
    - endDateTime: '2024-07-01T20:12:21.000Z'
      value: 440023
  - type: SUM
    name: equinix.fabric.port.packets_erred_tx.count
    description: Port error packets
    interval: PT5M
    unit: packet
    datapoints:
    - endDateTime: '2024-07-01T20:12:21.000Z'
      value: 10

CloudEvents Metric

{
  "specversion": "1.0",
  "source": "https://api.equinix.com/fabric/v4/cloudevents",
  "id": "16c7e20a-d147-40c4-81ad-f60d25548aad",
  "time": "2026-06-24T20:20:59.000Z",
  "type": "equinix.fabric.metric",
  "subject": "/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688",
  "dataschema": "https://equinix.github.io/equinix-cloudevents/jsonschema/equinix/fabric/v1/MetricEvent.json",
  "datacontenttype": "application/json",
  "severitynumber": "9",
  "severitytext": "INFO",
  "equinixproject": "123",
  "data": {
    "message": "Metrics collected",
    "resource": {
      "href": "https://api.equinix.com/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688",
      "uuid": "956a86fb-d03d-436c-8d5d-30d1f51f7688",
      "type": "XF_PORT",
      "state": "PROVISIONED"
    },
    "metrics": [
      {
        "type": "GAUGE",
        "name": "equinix.fabric.port.bandwidth_rx.usage",
        "unit": "bit/s",
        "datapoints": [
          {
            "endDateTime": "2026-06-24T20:20:59.000Z",
            "value": 179
          }
        ]
      },
      {
        "type": "GAUGE",
        "name": "equinix.fabric.port.bandwidth_tx.usage",
        "unit": "bit/s",
        "datapoints": [
          {
            "endDateTime": "2026-06-24T20:20:59.000Z",
            "value": 1711
          }
        ]
      }
    ]
  }
}

OpenTelemetry Log

---
resourceLogs:
- resource:
    attributes:
    - key: service.name
      value:
        stringValue: Equinix
    - key: equinix.event.specversion
      value:
        stringValue: '1.0'
    - key: equinix.event.source
      value:
        stringValue: https://api.equinix.com/fabric/v4/cloudevents
    - key: equinix.event.subject
      value:
        stringValue: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
    - key: equinix.event.equinixproject
      value:
        stringValue: 123
  scopeLogs:
  - scope:
    logRecords:
    - timeUnixNano: '1719889941306000000'
      severityNumber: 9
      severityText: Information
      body:
        stringValue: '{"message":"Virtual port status changed to Up","resource":{"href":"https://api.equinix.com/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688","uuid":"956a86fb-d03d-436c-8d5d-30d1f51f7688","name":"my-test-port","description":"port description"}}'
      attributes:
      - key: equinix.event.id
        value:
          stringValue: 6c573287-9914-4202-8b6d-2d15e7da04b8
      - key: equinix.event.type
        value:
          stringValue: equinix.fabric.port.status.up

OpenTelemetry Metric

---
resourceMetrics:
- resource:
    attributes:
    - key: service.name
      value:
        stringValue: Equinix
    - key: equinix.event.specversion
      value:
        stringValue: '1.0'
    - key: equinix.event.source
      value:
        stringValue: https://api.equinix.com/fabric/v4/cloudevents
    - key: equinix.event.subject
      value:
        stringValue: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
    - key: equinix.event.equinixproject
      value:
        stringValue: 123
  scopeMetrics:
  - scope:
    metrics:
    - name: equinix.fabric.port.bandwidth_rx.usage
      description: Port inbound bandwidth utilization
      unit: 'bit/s'
      gauge:
        dataPoints:
        - attributes:
          - key: service.name
            value:
              stringValue: Equinix
          - key: equinix.event.source
            value:
              stringValue: https://api.equinix.com/fabric/v4/cloudevents
          - key: equinix.event.subject
            value:
              stringValue: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
          - key: equinix.event.equinixproject
            value:
              stringValue: 123
          - key: equinix.event.resource.name
            value:
              stringValue: 'my-port-name'
          timeUnixNano: '1719889941306000000'
          asInt: 566
    - name: equinix.fabric.port.packets_erred_tx.count
      description: Port error packets
      unit: packet
      sum:
        aggregationTemporality: 2 # required for sum https://github.com/open-telemetry/opentelemetry-proto/blob/v0.9.0/opentelemetry/proto/metrics/v1/metrics.proto#L230
        dataPoints:
        - attributes:
          - key: service.name
            value:
              stringValue: Equinix
          - key: equinix.event.source
            value:
              stringValue: https://api.equinix.com/fabric/v4/cloudevents
          - key: equinix.event.subject
            value:
              stringValue: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
          - key: equinix.event.equinixproject
            value:
              stringValue: 123
          - key: equinix.event.resource.name
            value:
              stringValue: 'my-port-name'
          startTimeUnixNano: '1719889641306000000' # optional
          timeUnixNano: '1719889941306000000'
          asInt: 10

Equipos de Microsoft

Portal

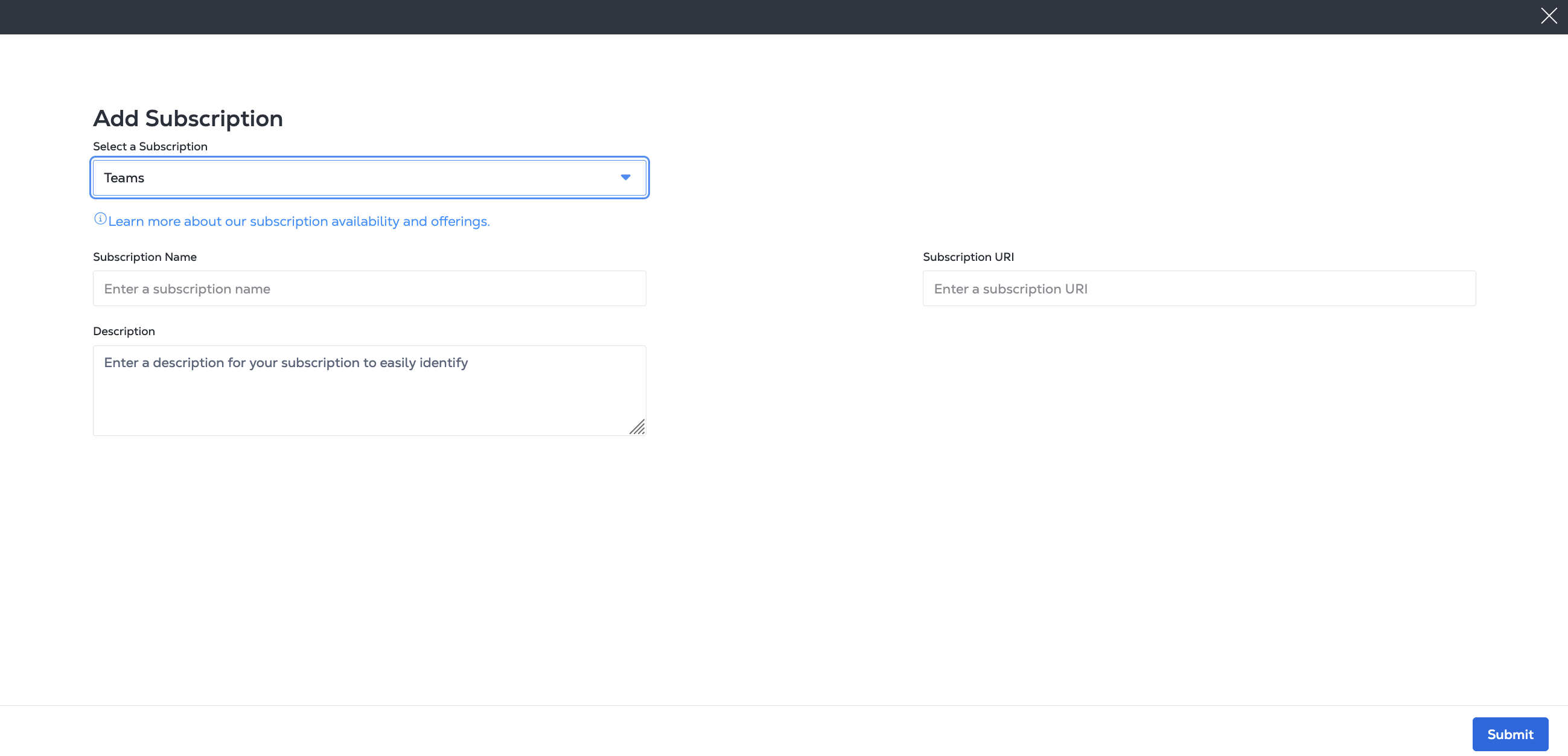

En la página Add Subscription, ingrese la información de Microsoft Teams, que incluye:

• Un nombre de suscripción
• Tu Microsoft Workflow Webhook URI
• y proporcionar una descripción (opcional)

API

Solicitud de curl de muestra:

curl -X 'POST' 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
  "type": "STREAM_SUBSCRIPTION",
  "name": "<ms_teams_subscription>",
  "description": "<ms_teams_subscription_desc>",
  "sink": {
    "uri": "<teams_webhook_uri>",
    "type": "TEAMS"
  }
}'

Respuesta de muestra:

{
  "href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/12190e7d-a486-4a77-ba56-fecdab616837",
  "uuid": "12190e7d-a486-4a77-ba56-fecdab616837",
  "type": "STREAM_SUBSCRIPTION",
  "name": "ms_teams_subscription",
  "description": "ms_teams_subscription_desc",
  "state": "PROVISIONED",
  "enabled": true,
  "sink": {
    "uri": "****",
    "type": "TEAMS",
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5
  },
  "changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-10-04T13:20:40.127727Z"
  }
}

PagerDuty

Portal

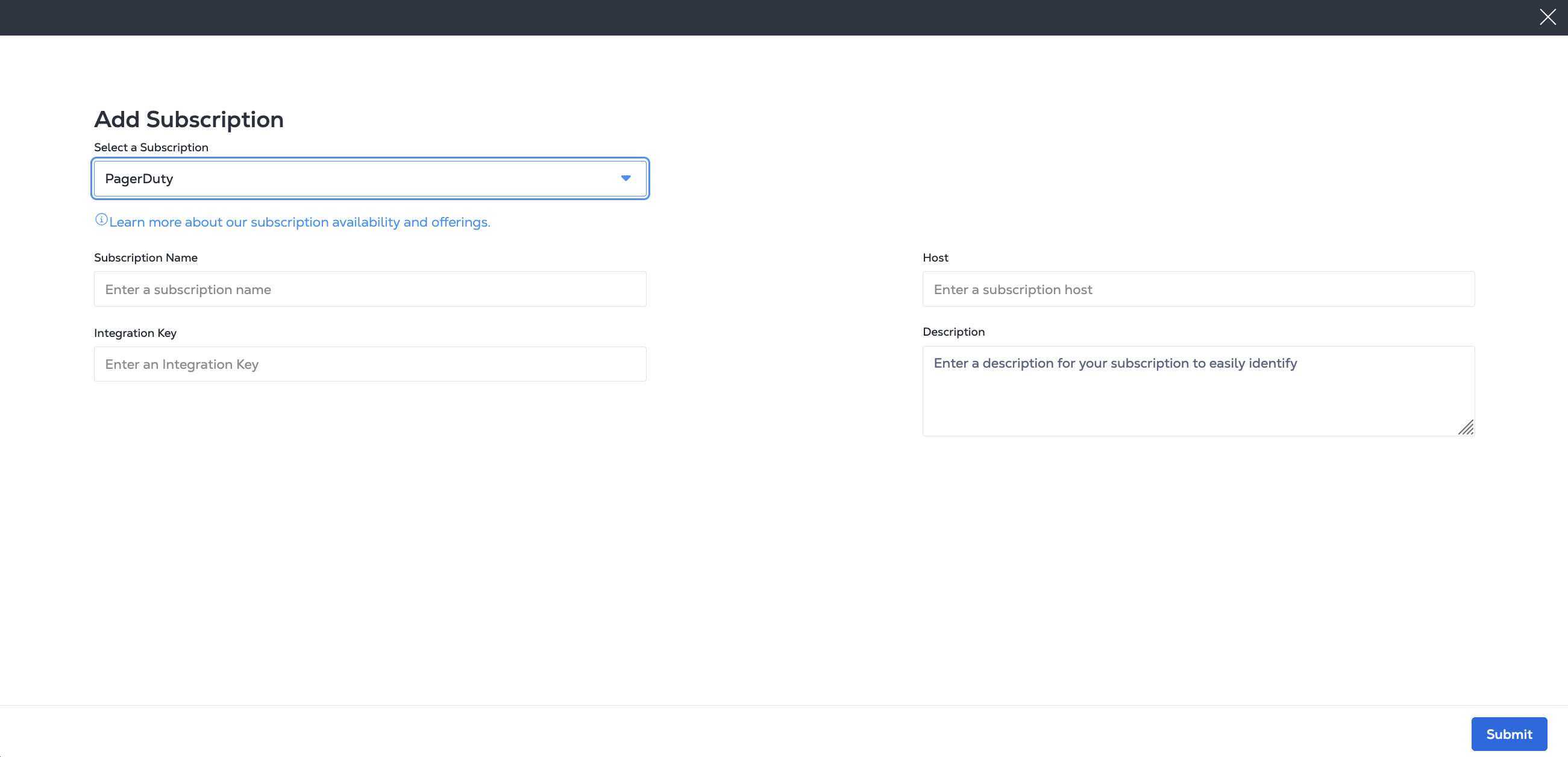

En la página Add Subscription, ingrese su información de PagerDuty, incluyendo:

• Un nombre de suscripción
• Tu URL de host de PagerDuty
• Tu clave de integración de PagerDuty
• y proporcionar una descripción (opcional)

API

Solicitud de curl de muestra:

curl -X 'POST' 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
  "type": "STREAM_SUBSCRIPTION",
  "name": "<pagerduty_subscription_name>",
  "description": "<pagerduty_subscription_desc>",
  "sink": {
    "host": "https://events.pagerduty.com",
    "type": "PAGERDUTY",
    "credential": {
      "type": "INTEGRATION_KEY",
      "integrationKey": "<pagerduty_integration_key>"
    }
  }
}'

Respuesta de muestra:

{
  "href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/dae0726a-87f0-4c5f-8662-ccbcf44a0de2",
  "uuid": "dae0726a-87f0-4c5f-8662-ccbcf44a0de2",
  "type": "STREAM_SUBSCRIPTION",
  "name": "pagerduty-subscription",
  "description": "pagerduty-subscription-desc",
  "state": "PROVISIONED",
  "enabled": true,
  "sink": {
    "host": "https://events.pagerduty.com",
    "type": "PAGERDUTY",
    "credential": {
      "type": "INTEGRATION_KEY",
      "integrationKey": "<encrypted_integration_key>"
    },
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5,
    "settings": {
      "source": "equinix",
      "changeUri": "https://events.pagerduty.com/v2/change/enqueue",
      "alertUri": "https://events.pagerduty.com/v2/enqueue"
    }
  },
  "changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-09-18T22:04:58.664523Z"
  }
}

Event

---
routing_key: routingKey
dedup_key: NCAB543WC4lrLpET8nLX4Vd8
event_action: trigger # or resolve
payload:
  source: Equinix
  timestamp: '2024-07-01T20:12:21.306Z'
  severity: critical
  summary: Virtual port status changed to Down
  custom_details:
    equinixsource: https://api.equinix.com/fabric/v4/cloudevents
    specversion: '1.0'
    id: 6c573287-9914-4202-8b6d-2d15e7da04b8
    type: equinix.fabric.port.status.down
    subject: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
    time: '2024-07-01T20:12:21.306Z'
    severitynumber: 21
    severitytext: FATAL # or INFO
    equinixalert: raise/NCAB543WC4lrLpET8nLX4Vd8
    equinixproject: 123

ServiceNow

Portal

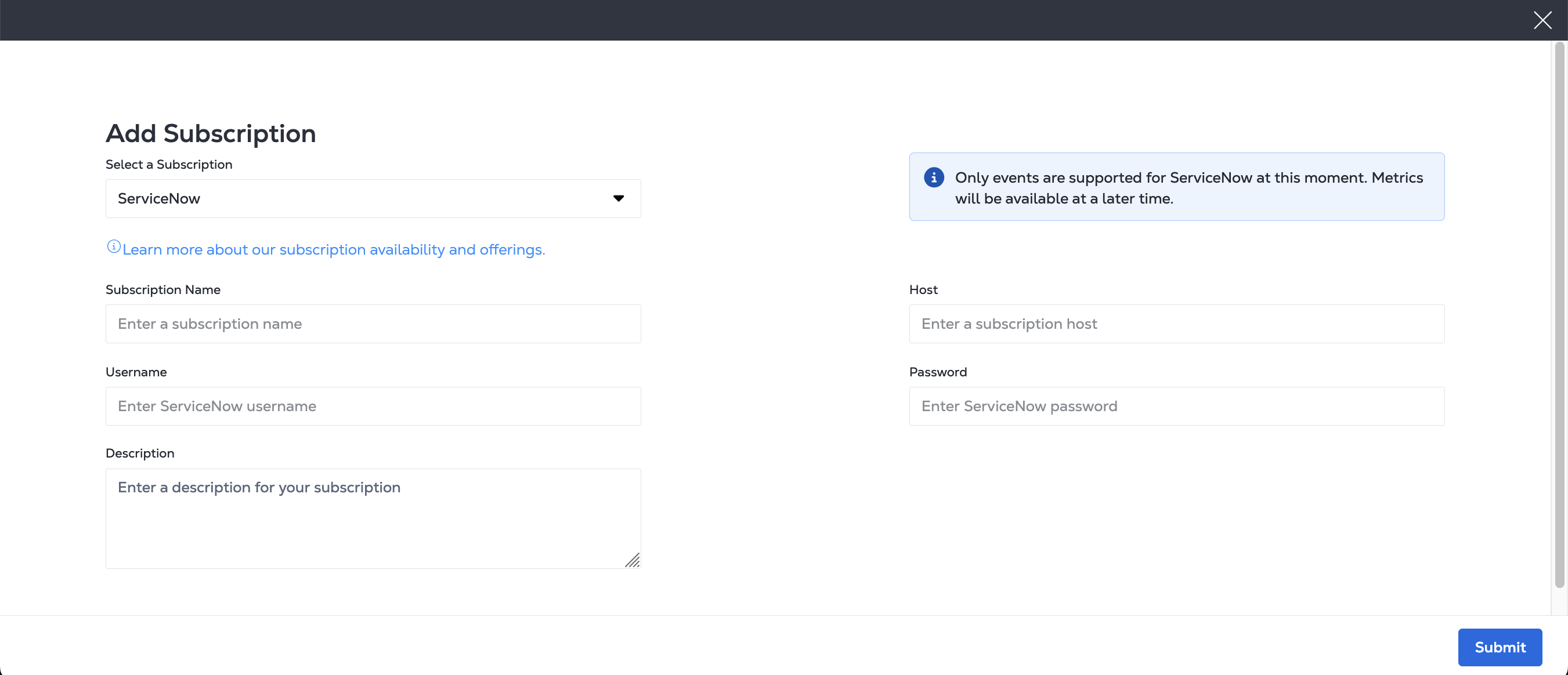

En la página Add Subscription, ingrese su información de ServiceNow, incluyendo:

• Un nombre de suscripción.
• La URL de host de ServiceNow.
• Su nombre de usuario de ServiceNow.
• Su contraseña de ServiceNow.
• Una descripción opcional.

API

Solicitud de curl de muestra:

curl -X 'POST' 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
"type": "STREAM_SUBSCRIPTION",
"name": "<servicenow_subscription_name>",
"description": "<servicenow_subscription_desc>",
"sink": {
    "host": "https://<host>.service-now.com",
    "type": "SERVICENOW",
    "settings": {
    "source": "<source_name>"
    },
    "credential": {
    "type": "USERNAME_PASSWORD",
    "username": "<servicenow-username>",
    "password": "<servicenow-password>"
    }
}
}'

Respuesta de muestra:

{
"href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/9b503760-b30f-4eb8-a681-aab1cfa9db1f",
"uuid": "9b503760-b30f-4eb8-a681-aab1cfa9db1f",
"type": "STREAM_SUBSCRIPTION",
"name": "servnow_subscription",
"description": "servnow_subscription_desc",
"state": "PROVISIONING",
"enabled": true,
"sink": {
    "host": "https://<host>.service-now.com",
    "type": "SERVICENOW",
    "credential": {
    "type": "USERNAME_PASSWORD"
    },
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5,
    "settings": {
    "source": "source_name",
    "metricUri": "https://<host>.service-now.com/api/mid/sa/metrics",
    "eventUri": "https://<host>.service-now.com/api/global/em/jsonv2"
    }
},
"changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2025-01-22T18:09:20.894582046Z"
}
}

Event

---
source: Equinix
time_of_event: '2024-07-01T20:12:21.306Z'
description: Virtual port status changed to Down
severity: 1 # 1 for clear and 0 for clear
resolution_state: New # or Closing
message_key: NCAB543WC4lrLpET8nLX4Vd8
resource: fabric.port
node: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
type: equinix.fabric.port.status.down
additional_info: '{"cloudevent":{"specversion":"1.0","source":"https://api.equinix.com/fabric/v4/cloudevents","id":"6c573287-9914-4202-8b6d-2d15e7da04b8","type":"equinix.fabric.port.status.down","subject":"/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7681","time":"2024-07-01T20:12:21.306Z","severitynumber":13,"severitytext":"CRITICAL","equinixalert":"raise/NCAB543WC4lrLpET8nLX4Vd8","equinixproject":"123","data":{"message":"Virtual port named \'Test-port\' status changed to Down","resource":{}}}}'

Metric

---
- timestamp: 1719889941306000. #mili sec
  source: Equinix
  resource_path: "/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7681"
  metric_type: equinix.fabric.port.bandwidth_rx.utilization
  value: 70.5
  ci2metric_id:
    type: GAUGE
    subject: "/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7681"
    equinixproject: 123
    unit: "%"
- timestamp: 1719889941306000 #mili sec
source: Equinix
  resource_path: "/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7681"
  metric_type: equinix.fabric.port.packets_erred_tx.count
  value: 70.5
  ci2metric_id:
    type: GAUGE
    interval: PT5M
    subject: "/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7681"
    equinixproject: 123
    unit: "%"

Slack

Portal

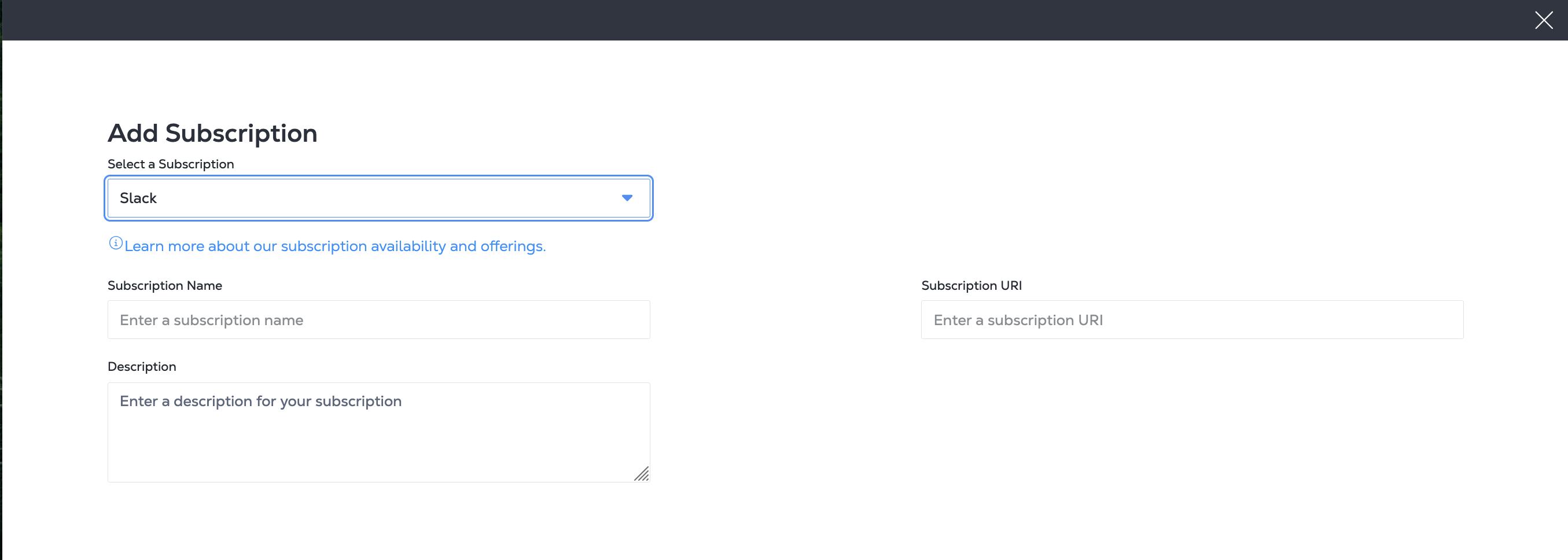

En la página Add Subscription, introduce tu información de Slack, que incluye:

• Nombre de la suscripción
• URI de suscripción
• Descripción (opcional)

API

Solicitud de curl de muestra:

curl -X 'POST' 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
"type": "STREAM_SUBSCRIPTION",
"name": "<slack_subscription_name>",
"description": "<slack_subscription_desc>",
"sink": {
    "uri": "<slack_webhook_uri>",
    "type": "SLACK"
}
}'

Respuesta de muestra:

{
"href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/12190e7d-a486-4a77-ba56-fecdab616837",
"uuid": "12190e7d-a486-4a77-ba56-fecdab616837",
"type": "STREAM_SUBSCRIPTION",
"name": "slack_subscription",
"description": "slack_subscription_desc",
"state": "PROVISIONED",
"enabled": true,
"sink": {
    "uri": "****",
    "type": "SLACK",
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5
},
"changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-10-04T13:20:40.127727Z"
}
}

CloudEvent

---
cloudevent:
  source: https://api.equinix.com/fabric/v4/cloudevents
  specversion: '1.0'
  id: 6c573287-9914-4202-8b6d-2d15e7da04b8
  type: equinix.fabric.port.status.up
  subject: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
  time: '2024-07-01T20:12:21.306Z'
  severitynumber: 9
  severitytext: INFO
  equinixalert: clear/NCAB543WC4lrLpET8nLX4Vd8
  equinixproject: 123
  data:
    message: Virtual port status changed to Up
    resource:
      href: https://api.equinix.com/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
      uuid: 956a86fb-d03d-436c-8d5d-30d1f51f7688
      name: my-test-port
      description: port description

CloudEvent Metric

---
specversion: '1.0'
source: https://api.equinix.com/fabric/v4/cloudevents
id: 6c573287-9914-4202-8b6d-2d15e7da04b8
type: equinix.fabric.metric
subject: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
time: '2024-07-01T20:12:21.306Z'
severitynumber: 9
severitytext: INFO
equinixproject: 123
dataschema: https://github.com/equinixapis/.../ApiConfigEventData.json
datacontenttype: application/json
data:
  message: New metrics collected
  resource:
    href: https://api.equinix.com/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
    uuid: 956a86fb-d03d-436c-8d5d-30d1f51f7688
    name: my-test-port
    description: port description
  metrics:
  - type: GAUGE
    name: equinix.fabric.port.bandwidth_rx.usage
    description: Port inbound bandwidth utilization
    unit: bit/s
    datapoints:
    - endDateTime: '2024-07-01T20:12:21.000Z'
      value: 440023
  - type: SUM
    name: equinix.fabric.port.packets_erred_tx.count
    description: Port error packets
    interval: PT5M
    unit: packet
    datapoints:
    - endDateTime: '2024-07-01T20:12:21.000Z'
      value: 10

Splunk

Portal

En la página Add Subscription, ingrese su información de Splunk, incluyendo:

• Un nombre de suscripción
• Tu URI de Splunk HTTP Event Collector
• Su token de acceso de Splunk
• Su índice de eventos de Splunk (requerido)
• Su índice de métricas de Splunk, si planea ingerir métricas en Splunk
• y proporcionar una descripción (opcional)

API

Solicitud de curl de muestra:

curl -X 'POST' 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
  "type": "STREAM_SUBSCRIPTION",
  "name": "<splunk_subscription_name>",
  "description": "<splunk_subscription_desc>",
  "sink": {
    "uri": "https://http-inputs-<host>.splunkcloud.com:<port>/services/collector/event"
    "type": "SPLUNK_HEC",
    "settings": {
      "eventIndex": "<name_of_eventIndex>",
      "metricIndex": "<name_of_metricIndex>",
      "source": "<name_of_splunk_hec>"
    },
    "credential": {
      "type": "ACCESS_TOKEN",
      "accessToken": "Splunk <Splunk AccessToken>"
    }
  }
}'

Respuesta de muestra:

{
  "href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/958a9854-dc49-4ded-87bd-be4d0099355e",
  "uuid": "958a9854-dc49-4ded-87bd-be4d0099355e",
  "type": "STREAM_SUBSCRIPTION",
  "name": "eq-splunk ",
  "description": "subscription1",
  "state": "PROVISIONING",
  "enabled": true,
  "sink": {
    "uri": "https://http-inputs-<host>.splunkcloud.com:<port>/services/collector/event",
    "type": "SPLUNK_HEC",
    "credential": {
      "type": "ACCESS_TOKEN"
    },
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5,
    "settings": {
      "eventIndex": "<name_of_eventIndex>",
      "metricIndex": "<name_of_metricIndex>",
      "source": "<name_of_splunk_hec>"
    }
  },
  "changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-08-12T21:49:21.761029359Z"
  }
}

Event

---
sourcetype: _json
index: test-event-index
source: equinix # optional
event:
  equinixsource: https://api.equinix.com/fabric/v4/cloudevents
  specversion: '1.0'
  id: 6c573287-9914-4202-8b6d-2d15e7da04b8
  type: equinix.fabric.port.status.up
  subject: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
  time: '2024-07-01T20:12:21.306Z'
  severitynumber: 9
  severitytext: INFO
  equinixalert: clear/NCAB543WC4lrLpET8nLX4Vd8
  equinixproject: 123
  data:
    message: Virtual port status changed to Up
    resource:
      href: https://api.equinix.com/fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
      uuid: 956a86fb-d03d-436c-8d5d-30d1f51f7688
      name: my-test-port
      description: port description

Metric

---
time: 1719889941.306
event: metric
index: test-index-metric
source: Equinix # Optional
fields:
  subject: /fabric/v4/ports/956a86fb-d03d-436c-8d5d-30d1f51f7688
  equinixproject: 123
  "metric_name:equinix.fabric.port.bandwidth_rx.usage": 440023
  "metric_name:equinix.fabric.port.packets_erred_tx.count": 10

Webhook genérico

Cree una suscripción a cualquier servicio genérico de webhook para eventos y métricas. Especifique el tipo de fregadero como un webhook. Debe incluir un URI de evento o un URI de métrica. Para transmitir eventos y métricas, debe proporcionar tanto un URI de eventos como un URI de métrica. Si proporciona solo uno de estos campos, solo se envía el tipo de datos correspondiente (eventos o métricas) a la plataforma de destino.

Portal

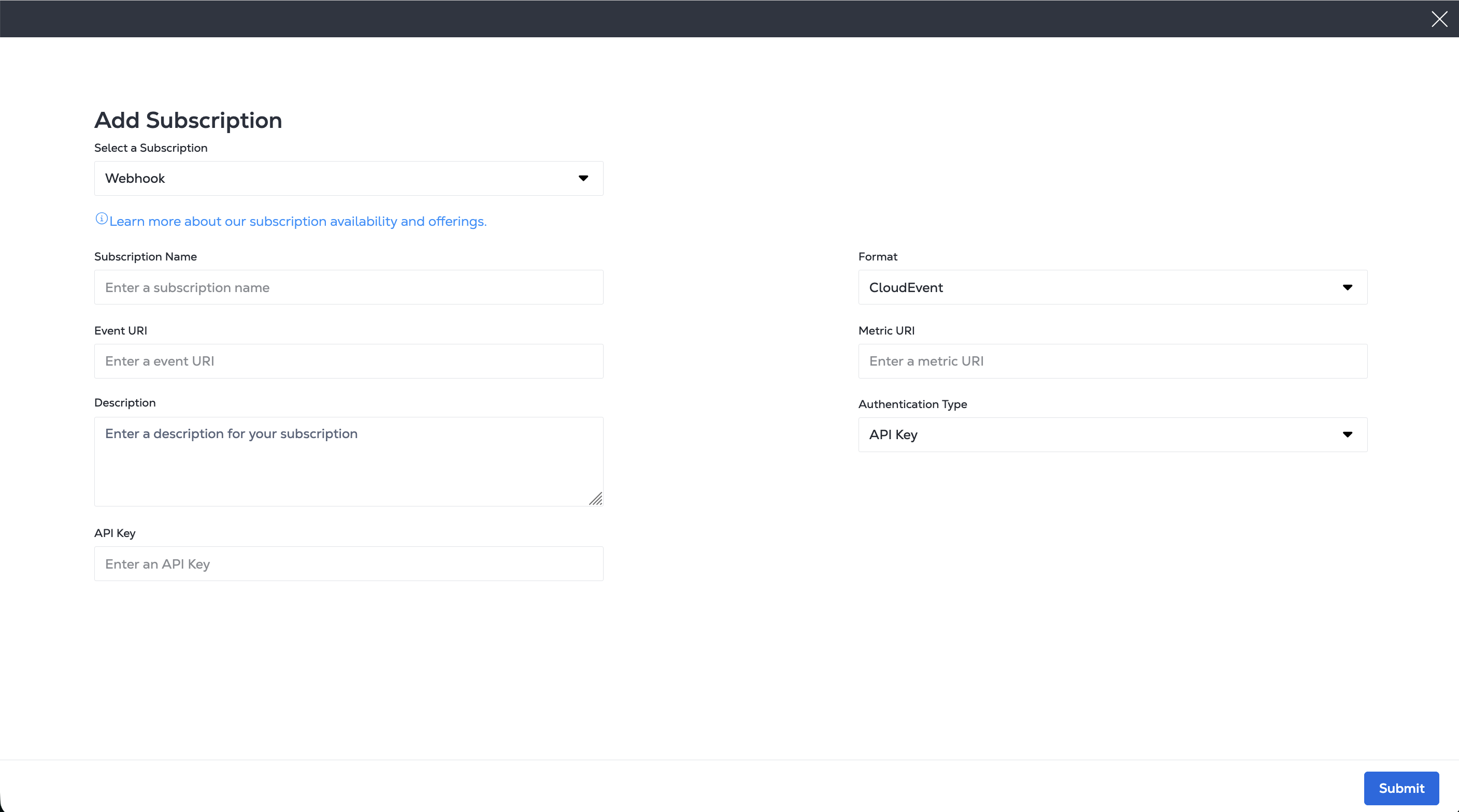

En la página Add Subscription, ingrese su información de Webhook, incluyendo:

• Un nombre de suscripción
• Seleccione CloudEvent Format o Open Telemetry Format para sus datos de transmisión.
• El URI del evento
• El URI métrico
• Seleccione un tipo de autenticación en las opciones Sin Auth, Nombre de usuario/contraseña, Token de acceso o clave API. Introduzca la información relevante en los campos proporcionados.
• Y proporcionar una descripción (opcional).

API

Solicitud de curl de muestra:

curl -X POST 'https://api.equinix.com/fabric/v4/streams/<streamId>/subscriptions' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>' \
-d '{
  "type": "STREAM_SUBSCRIPTION",
  "name": "<webhook_subscription_name>",
  "description": "<webhook_subscription_desc>",
  "enabled": true,
  "sink": {
    "type": "WEBHOOK",
    "settings": {
      "eventUri": "<webhook_uri>",
      "metricUri": "<webhook_uri>",
      "format": "<format>"
    }
  }
}'

Respuesta de muestra:

{
"href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/12190e7d-a486-4a77-ba56-fecdab616837",
"uuid": "12190e7d-a486-4a77-ba56-fecdab616837",
"type": "STREAM_SUBSCRIPTION",
"name": "<webhook_subscription_name>",
"description": "<webhook_subscription_desc>",
"state": "PROVISIONED",
"enabled": true,
"sink": {
    "type": "WEBHOOK",
    "batchEnabled": false,
    "batchSizeMax": 50,
    "batchWaitTimeMax": 5,
    "settings": {
    "eventUri": "<webhook_uri>",
    "format": "CLOUDEVENT"
    }
},
"changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2025-04-30T15:31:34.528915714Z"
}
}

Ver una suscripción

Portal

1. En el menú Observability, haga clic en Flujos de datos.

2. Seleccione un Stream desde el Stream Inventario.

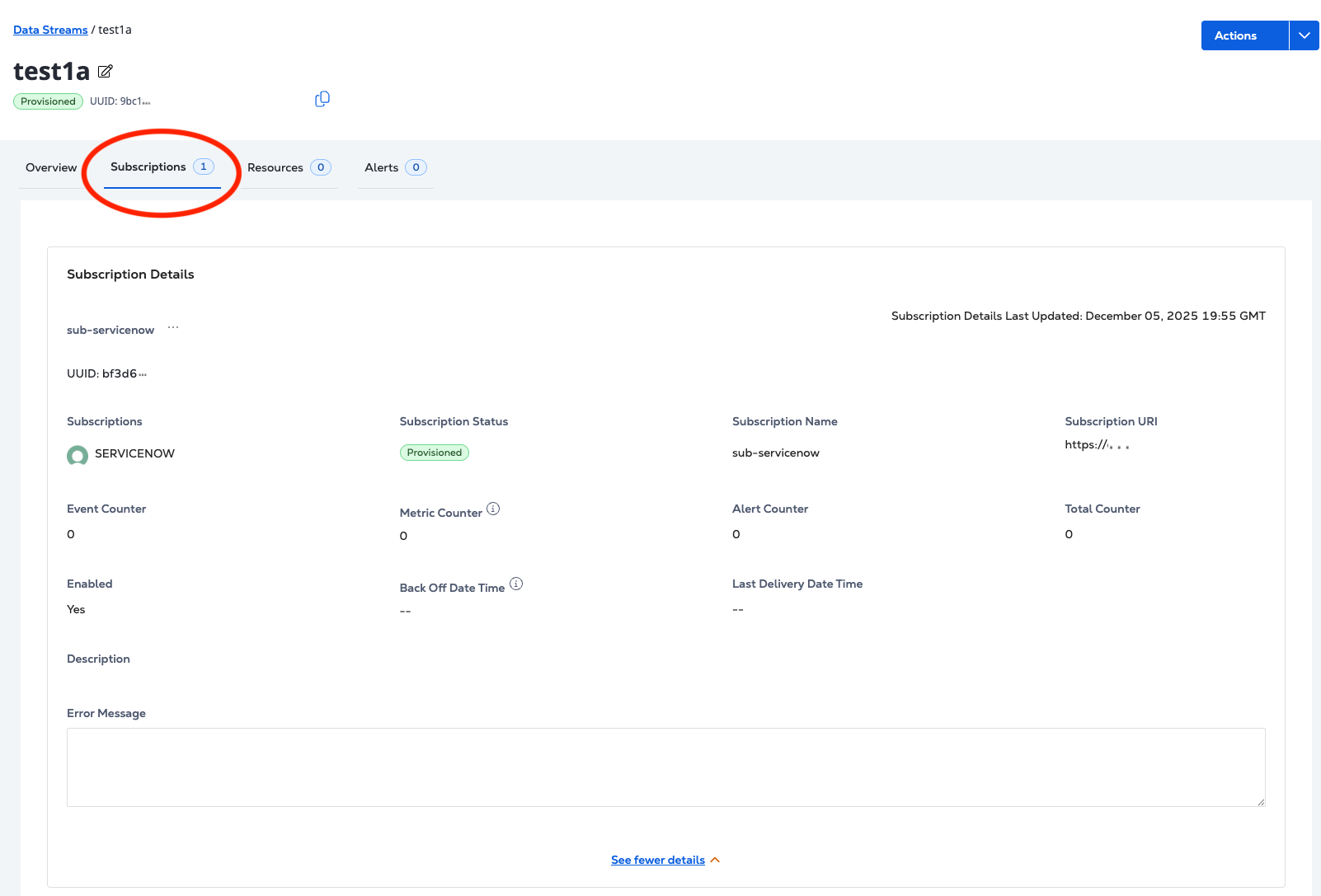

3. En la página Stream Details, haga clic en Suscripciones.



API

Para recuperar los detalles de una suscripción, envíe una GET solicitud al /fabric/v4/streams/{streamId}/subscriptions/{subscriptionId}punto final.

Solicitud de curl de muestra:

curl -X 'GET' 'https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/557400f8-d360-11e9-bb65-2a2ae2dbcce4' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'

Respuesta de muestra:

{
  "href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/958a9854-dc49-4ded-87bd-be4d0099355e",
  "uuid": "958a9854-dc49-4ded-87bd-be4d0099355e",
  "type": "STREAM_SUBSCRIPTION",
  "name": "eq-splunk",
  "description": "subscription1",
  "state": "PROVISIONED",
  "enabled": true,
  "sink": {
    "uri": "https://http-inputs-<host>.splunkcloud.com:<port>/<endpoint>",
    "type": "SPLUNK_HEC",
    "credential": {
      "type": "ACCESS_TOKEN"
    },
    "settings": {
      "eventIndex": "<name_of_eventIndex>",
      "metricIndex": "<name_of_metricIndex>",
      "source": "<name_of_splunk_hec>"
    }
  },
  "changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-08-12T21:49:21.761029Z"
  }
}

Eliminar una suscripción

Portal

1. En el menú Observability, haga clic en Flujos de datos.

2. Seleccione un Stream desde el Stream Inventario.



3. En la página Stream Details, haga clic en Suscripciones.

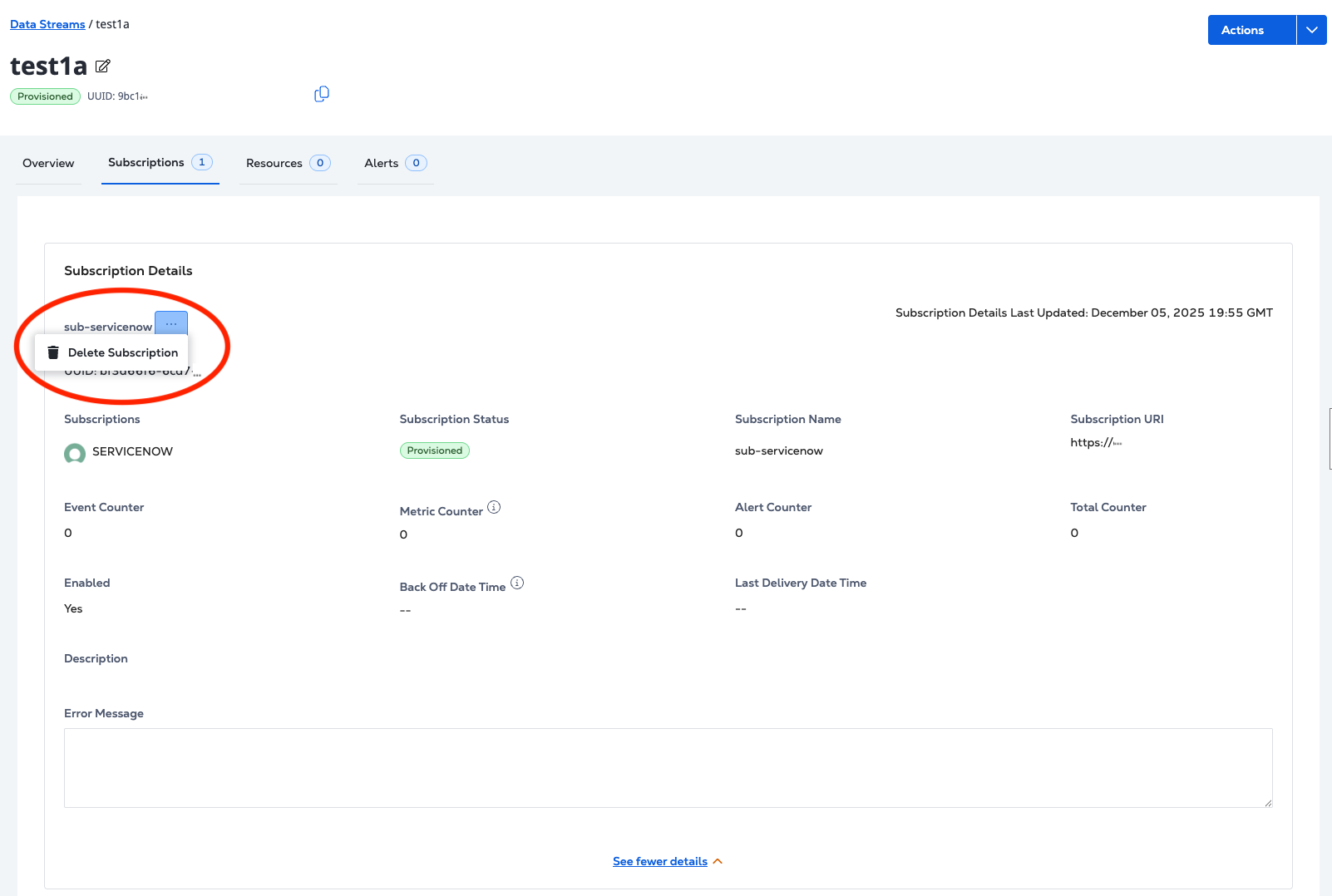

4. En el Detalles de la suscripción, haga clic en el menú de opciones ...y Eliminar suscripción.



API

Para eliminar una suscripción, envíe una DELETE solicitud al /fabric/v4/streams/{streamId}/subscriptions/{subscriptionId}punto final.

Solicitud de curl de muestra:

curl -X 'DELETE' 'https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/557400f8-d360-11e9-bb65-2a2ae2dbcce4' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <Bearer Token>'

Respuesta de muestra:

{
"href": "https://api.equinix.com/fabric/v4/streams/241372e9-79c9-4ef8-b77a-8b8176c228b4/subscriptions/958a9854-dc49-4ded-87bd-be4d0099355e",
"uuid": "958a9854-dc49-4ded-87bd-be4d0099355e",
"type": "STREAM_SUBSCRIPTION",
"name": "eq-splunk",
"description": "subscription1",
"state": "DEPROVISIONING",
"enabled": true,
"sink": {
    "uri": "<protocol>://http-inputs-<host>.splunkcloud.com:<port>/<endpoint>",
    "type": "SPLUNK_HEC",
    "credential": {
    "type": "ACCESS_TOKEN"
    },
    "settings": {
    "eventIndex": "<name_of_eventIndex>",
    "metricIndex": "<name_of_metricIndex>",
    "source": "<name_of_splunk_hec>"
    }
},
"changeLog": {
    "createdBy": "user1",
    "createdDateTime": "2024-08-12T21:49:21.761029Z"
}
}
