Customer-Provided Secure Cabinet

By request, Equinix can install your own cabinets as Secure Cabinets (instead of using the recommended Equinix-provided cabinets). You can either procure the cabinets yourself, or the Equinix Smart Build team can help you order custom cabinets that fit your needs.

tip

For other Secure Cabinet solutions, see Secure Cabinet Express and Secure Cabinet with kVA-Based Power.

Cabinet Requirements​

To ensure your cabinet will fit into a colocation area, it must satisfy the following requirements:

  • Closed 4-post cabinet with front and rear doors
  • Doors must have 3-digit-minimum combination locks
  • Maximum outside width = 34 inches or 865 mm
  • Maximum outside depth and height vary by IBX
  • Maximum arrival weight varies by IBX

Capacity Feasibility Review (CFR)​

A CFR approval is needed for all customer-provided cabinets. For the CFR, you are asked to provide your cabinet specifications and interconnection specs, such as:

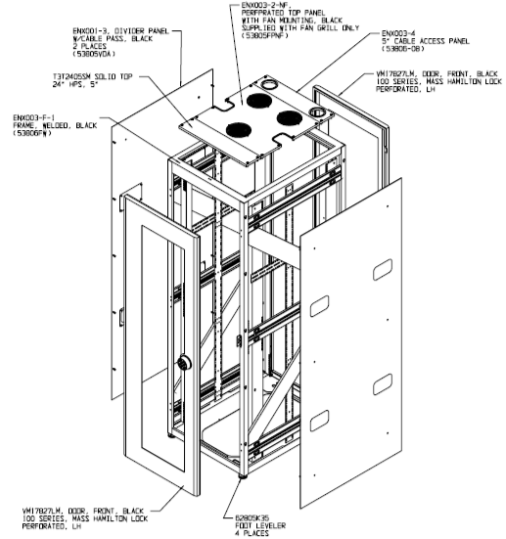

  • Cabinet Make and Model – The manufacturer's name and the cabinet model number. Provide cabinet spec sheets and diagrams, if possible. Example:

  • Cabinet Depth – The outside depth of the cabinet, including the doors (specify unit of measure: inches or mm).

  • Cabinet Width – The outside width of the cabinet, including the side panels (specify unit of measure: inches or mm).

    info

    This is not the rail-to-rail width.

  • Cabinet Height – The outside height of the cabinet (specify unit of measure: inches or mm).

  • Cabinet Weight – Cabinet weight at arrival to the loading dock (specify unit of measure: pounds or kilograms).

  • Is Cabinet Racked and Stacked:

    • Yes = Cabinet is arriving with equipment inside of the cabinet. Weight provided must include cabinet weight + equipment weight.
    • No = Cabinet is arriving without equipment inside of the cabinet. Weight provided must only include cabinet weight.

  • Lock Type – combination lock, key card lock, or other. Combination Lock is the accepted standard, with a 3-digit minimum combination.

  • Lock Combination – Required at order fulfillment. This is the combo to be used by Equinix technicians for cabinet access.

  • Equinix Standard Patch Panel:

    • Yes = An Equinix standard patch panel will be used.
    • No = Another type of patch panel will be used.

  • Panel Size – The amount of patch panel space occupied. Use Rack Units as the unit of measure (where 1 RU = 1.75 inches of height).

  • Panel Port Capacity – The total port capacity of the panel (in pairs if fiber).

  • Panel Make and Model – The manufacturer's name and model number of the patch panel.

  • Panel Install Location – The RU number(s) within the cabinet where the patch panel will be installed.

  • Panel Connector Type – The connector type of the ports in the patch panel (such as SC, ST, FC, or LC connectors).

  • Cross Connect Access Location:

    • Front = Customer access to your side of the patch panel is at the front of the cabinet.
    • Back = Customer access to your side of the patch panel is at the back of the cabinet.

  • Rail Setback for Panel – The amount of space that the rails are to be set back from the edge.

  • AC/DC Power – Specify in kVA (kilo-volt-amperes).

  • Estimated Cross Connects – The total quantity of cross connects expected to terminate in the cabinet.

  • Cabinet Arrival Date

note

Equinix performs all installations of cabinets and power circuits.
